Before assembling the motorcycle, thoroughly
understand the “Safety Check Out” described on
page 45. After completion of assembly, carefully
check the motorcycle referring to the “Safety
Check Out”, then deliver the motorcycle to the
customer.
ASSEMBLY

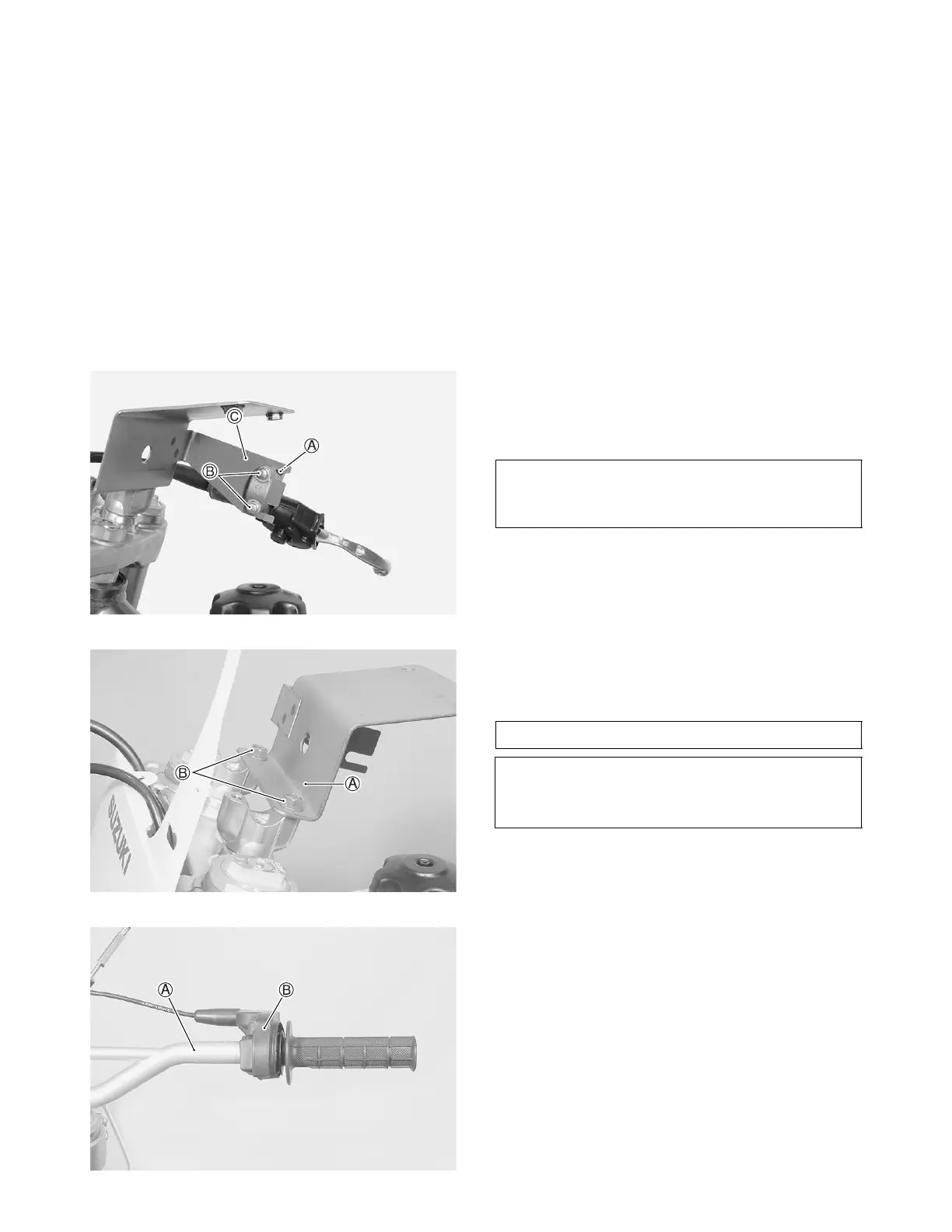

REMOVING THE BRACKET
Loosen the front brake master cylinder bolts and
remove the master cylinder from the bracket.
!
A: Front brake master cylinder
B: Bolt
C: Bracket
Remove the bracket from the handlebar mounting
position.
!
A: Bracket
B: Bolt
HANDLEBARS
Insert the throttle assembly onto the handlebars.
A: Handlebars
B: Throttle assembly
Keep the position of front brake master cylin-
der with its cap facing upwards until it is
installed.
Be careful not to scratch the fuel tank.
NOTE:
The bracket and bolts are no longer needed
and these may be discarded.
