SYCLOPE ODISEA - Internal Connections; Connection Terminal Boards

Description of the human-machine interface Page 7/33
Programming instructions SYCLOPE ODISEA
®

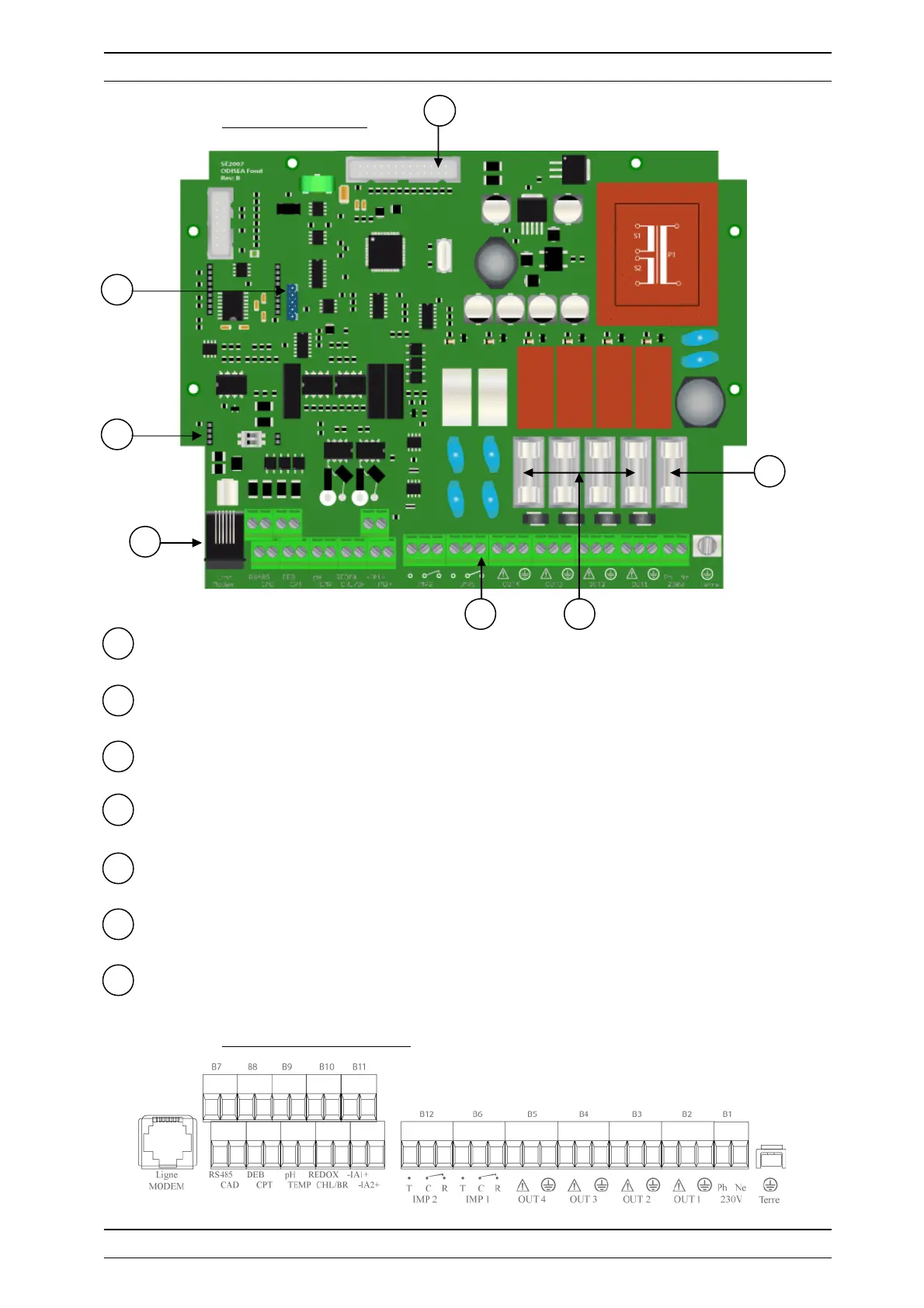

2) Internal connections
General protection fuse (glass 5x20 315 mA time-lag fuse)
Relay protection fuse (glass 5x20 2A time-lag fuse)
Connection terminal blocks (see diagram at the bottom of the page)
Modem connector
Location for modem socket (optional)
Printer connector
Connector for ribbon cable to the top card
3) Connection terminal boards
1
7
2
3
4
5
6
1
2
3
4
5
6
7
