28
GO User Guide
Set-up instructions :

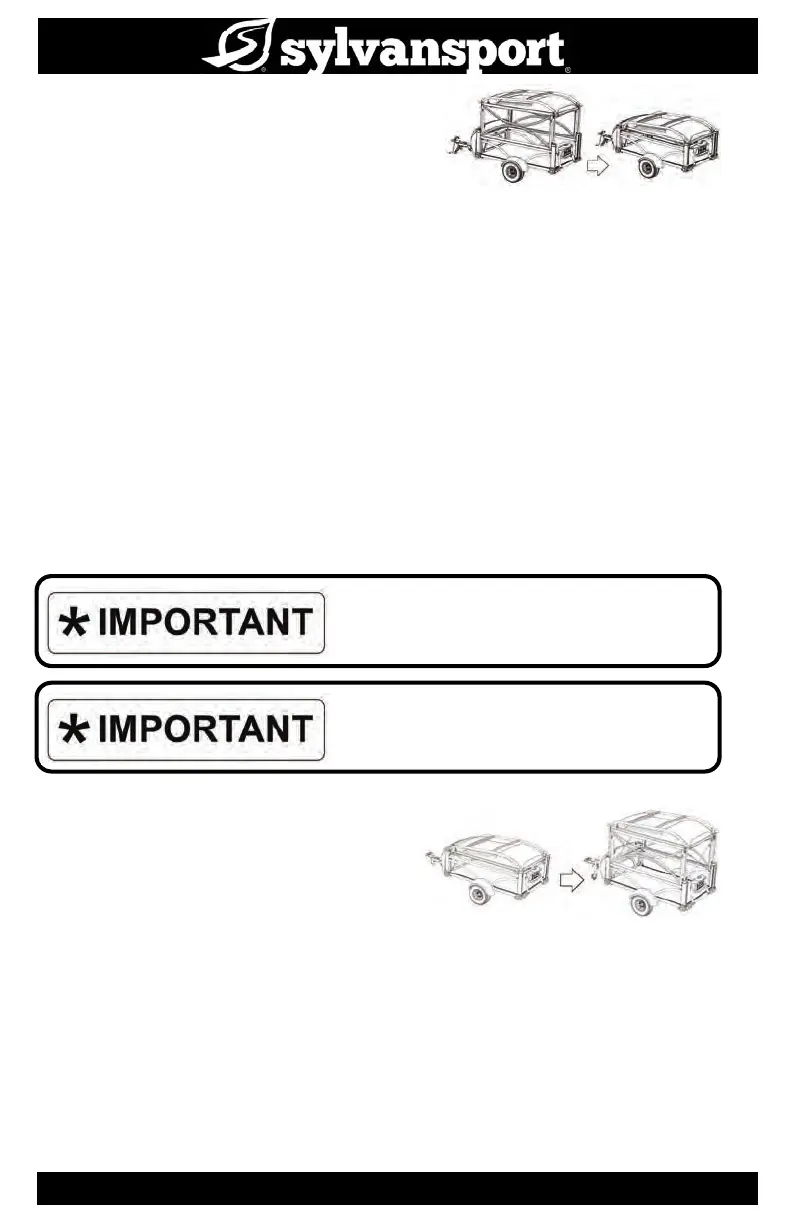

Travel mode (from Transport mode)
1. Remove the set pins and set aside.
2. Insert the winch handle into the winch opening and raise the lift system high enough to
allow rotation of the bed platforms.
3. Raise the tailgate to its ‘up’ position, exposing the license plate. Make sure the tailgate
hinge pins are secure and the electrical connector is fastened.
4. Lift and rotate the bed platforms inward, one at a time, taking care to lift over the steel
locating pins on the top of the vertical frame pillars, and rest the platforms on the
tailgate. (The order in which you rotate the bed platforms does not matter.)
5. Secure the 24” velcro strap to the tailgate and rear of the bed platforms, secure the
shorter 18” velcro strap to front crossbar and front of the bed platforms.
6. Lower the lift system back down until the rack feet t tightly onto the locating pins and
the vertical frame pillar top cap.
7. Insert the ring grip pins back into the rack feet.
8. Do a quick inspection to ensure all pins, latches and connectors are secure.
Transport mode (from Travel mode)
(and loading with the control-tilt deck feature)
1. Make sure you are parked on level ground.
2. Remove the ring grip pins from the rack feet.
3. Insert the winch handle into the winch opening and raise the lift system high enough to
allow rotation of the bed platforms to a vertical position.
4. One at a time, rotate the bed platforms up to a vertical position, then gently drop down
onto the locating pins on the top of the vertical frame pillars.
5. Lower the lift system back down until it sits squarely on the locating pins on the top of
the bed platforms. Some care may be needed to guide the rack onto the locating pins.
It is very important, when raising and lowering the
lift system, to have the camping trailer on a level
surface.
It is very important that you check the storage box
latch to ensure it is secured, then lock it.
