9. FINAL DRIVING MECHANISM SYM
9-6

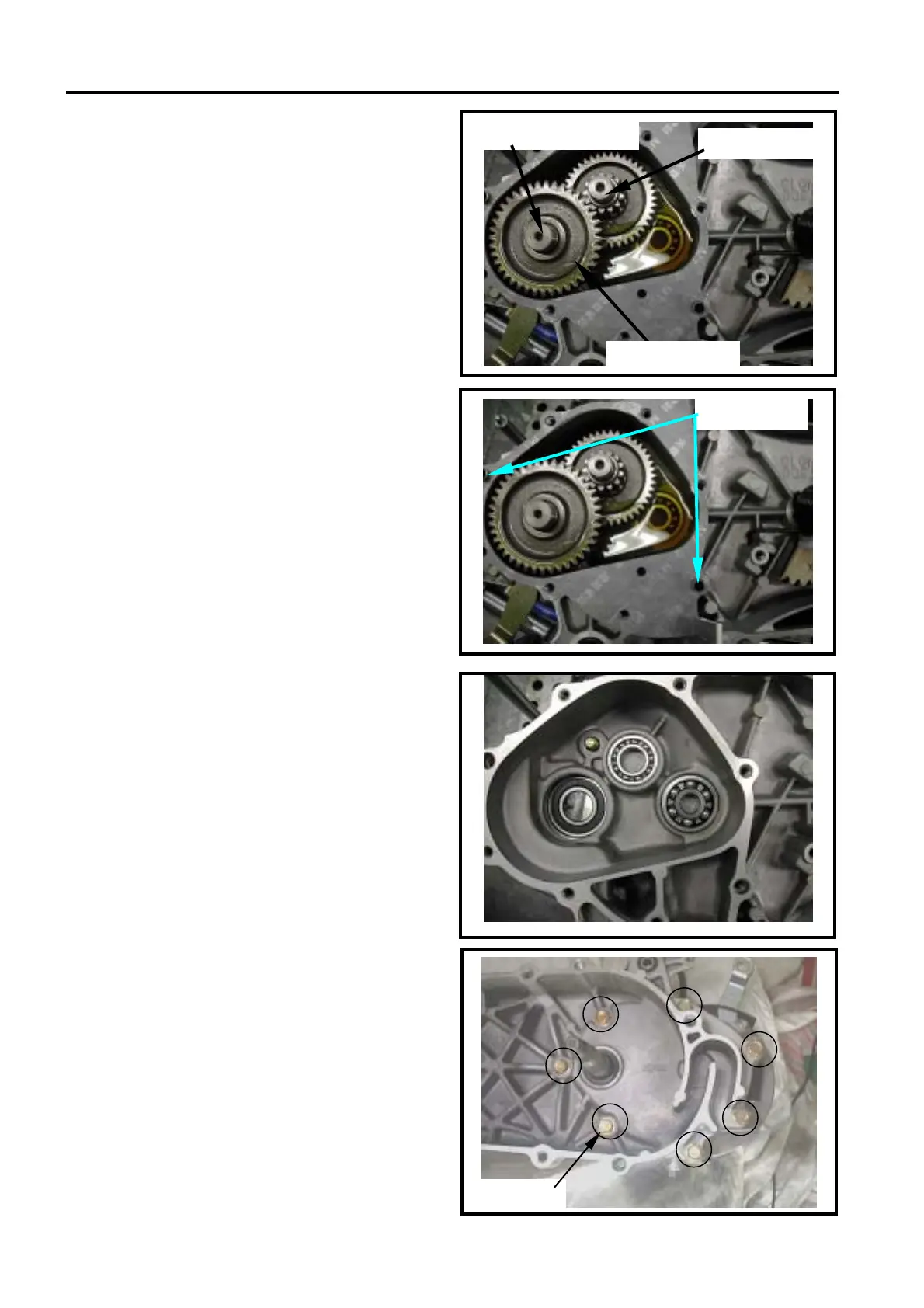

RE-ASSEMBLY OF FINAL DRIVING
MECHANISM
Install final driving shaft and final driving gear,
countershaft, and countershaft gear.
Install the setting pins(2 pins) and new gasket.
Apply with grease onto the oil seal lip of final
driving shaft.
Install the gear box cover and 7 bolts.
(tighten the bolts)
Torque: 1.8~2.2 kgf-m
Install the clutch/sliding driving pulley.
Install the driving pulley, belt and left
crankshaft cover.
Install the rear wheel.
Add gear oil.
Recommended usage: SYM HYPOID
GEAR OIL (SAE 85W-140)
(110 cc: standard capacity)
(100 cc: when replacement)
7 bolts
final driving shaft
countershaft
final shaft gear
dowel pins

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
