SYM 15. REAR WHEEL/REAR SHOCK ABSORBER
15-3

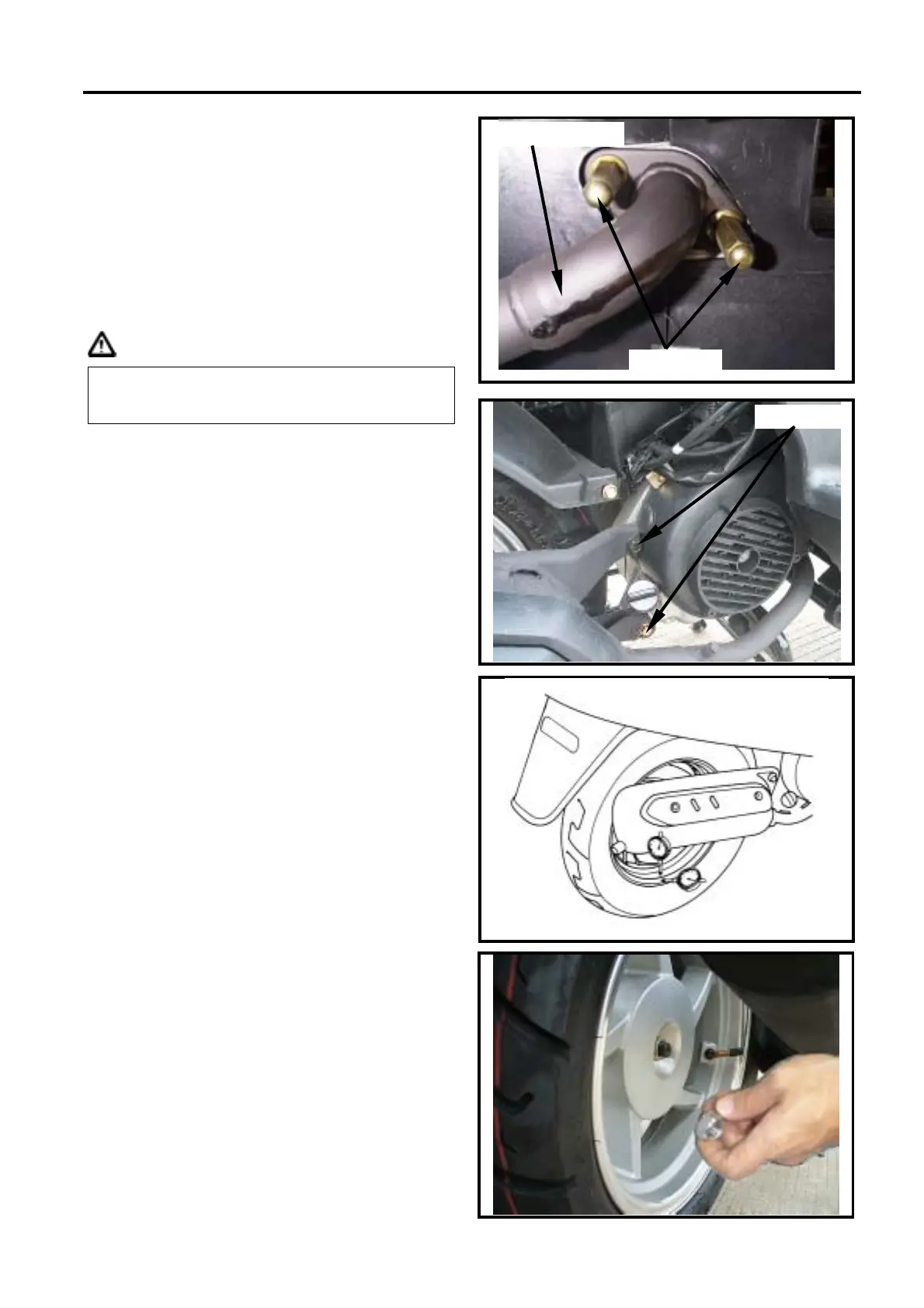

EXHAUST MUFFLER
Removal
Remove the front-end nut of the exhaust
muffler. (nuts x 2)
Remove the bolts. (bolts x 2)
Remove the exhaust muffler.
Installation
Install the exhaust muffler according to the
reverse procedure of removal.
Caution
Torque value:
Exhaust muffler connection bolt:
3.0~3.6kgf-m
Exhaust muffler connection nut:
1.0~1.4kgf-m
REAR WHEEL
Inspection
Measure wheel rim wobbling.
Service limit:
Radial: 2.0mm
Axial: 2.0mm
If the wheel rim wobbling out of the
specification, except resulted from the
wheel rim deformation, it might be loosen or
worn final driving shaft bearing or bend,
deformed driving shaft.
Removal
Remove the right cover.(screws x 4)
Remove the battery. (bolts x 2)
Remove the battery cover assembly. (bolts
x2, nuts x 2)
Remove the rear wheel. (wheel axle nut x1)
Replace the exhaust muffler gasket if it is
broken or deformed.
Bolts x 2
Nuts x 2
Exhaust muffler

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
