SYM 10. A.C. GENERATOR/STARTING CLUTCH
10-1
MECHANISM DIAGRAM....................10-1
PRECAUTIONS IN OPERATION .......10-2
A.C.GENERATOR REMOVAL............10-3
RIGHT CRANKCASE COVER REMOVAL .10-4
STARTING CLUTCH..........................10-5
RIGHT CRANKCASE COVER INSTALLATION ...10-8
MOUNTED COIL SET INSTALLATION
........10-8
FLY WHEEL INSTALLATION.............10-8

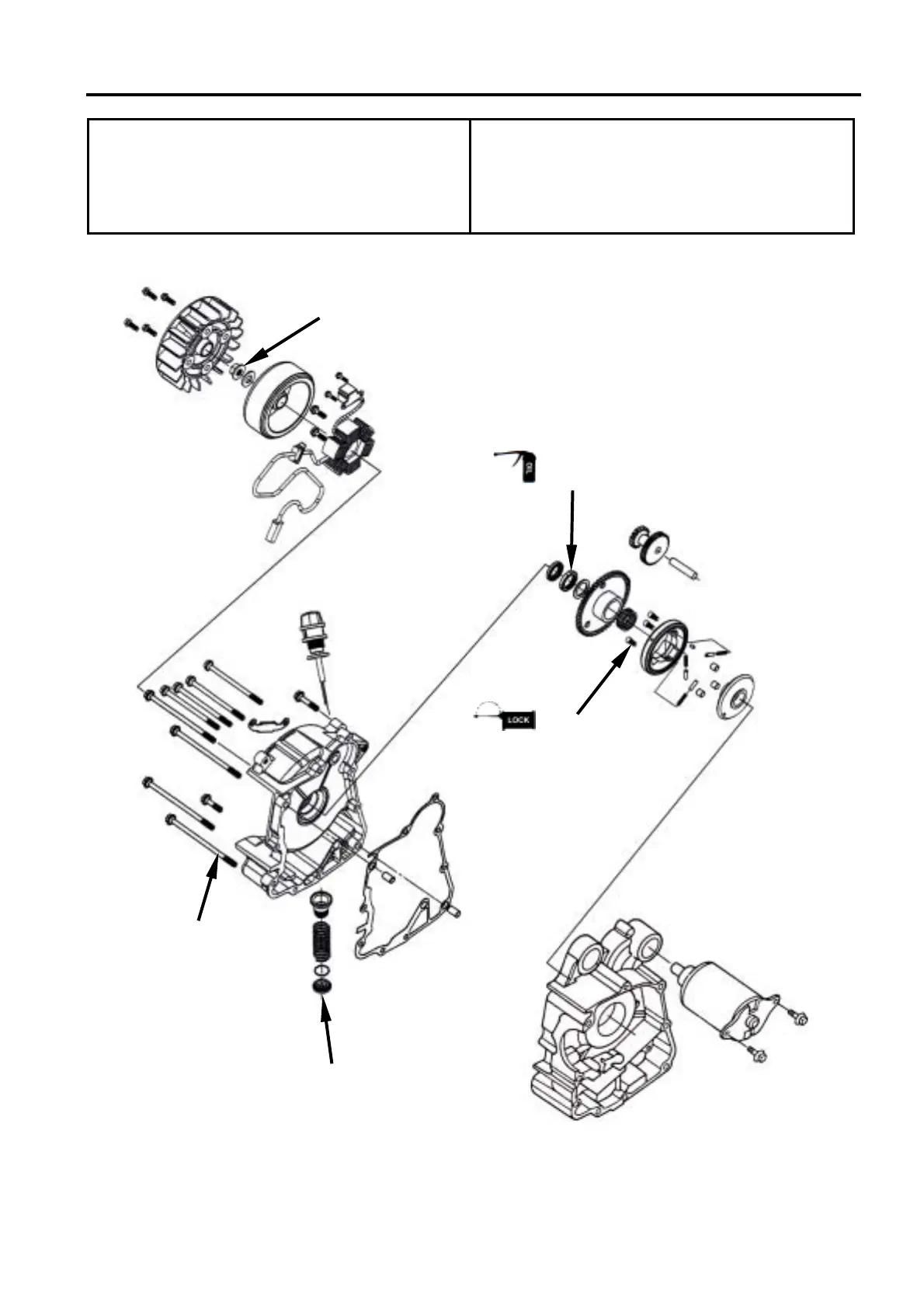

MECHANISM DIAGRAM
9.0~10.0kgf-m
1.0~1.4kgf-m
0.8~1.2kgf-m
1.0~2.0kgf-m
5.0~6.0kgf-m

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
