Sym FIDDLE 125 User Manual

SYM 13. BRAKE
13-13

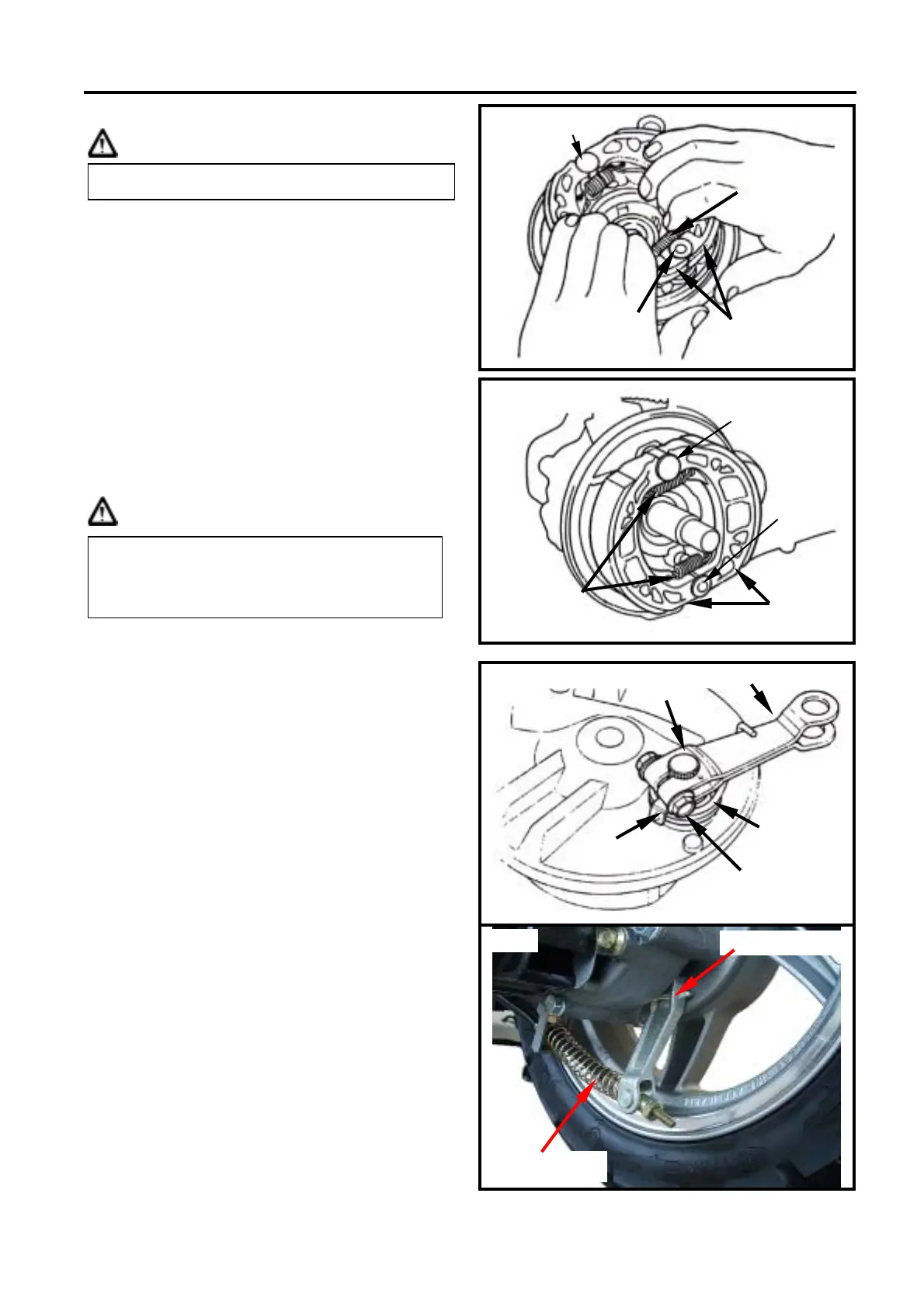

Removal
Caution
Remove brake shoes from the brake panel by
pulling out the brake linings with two hands.
Installation
Apply a thin coat of grease to the brake cam
and the anchor pin.
Hook the brake spring onto the brake cam.
Pull out the brake linings and install them onto
the brake panel. Wipe off the excessive
grease from the brake cam and the anchor pin
after installation.
Slightly grind the brake lining surfaces with
sand-paper to clean the surfaces.
Caution
BRAKE PANEL
Removal
Remove the brake arm bolt and then
remove the brake arm, wear indicator,
brake return spring and brake cam as well
as the oil seal from the brake panel.
Brake linings must be replaced as a set.
Bolt
Brake arm
Front
Return
spring
Wear indicator
Brake cam
後
brake shoes
brake spring
front
brake cam
anchor pin
brake spring
brake shoes
brake cam
anchor
pin
rear
Braking efficiency will be reduced if
brake lining is contaminated by oil or
grease.
Rea
r
Return spring
Wear indicato
r

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
