13. BRAKE SYM
13-2
MECHANISM DIAGRAM

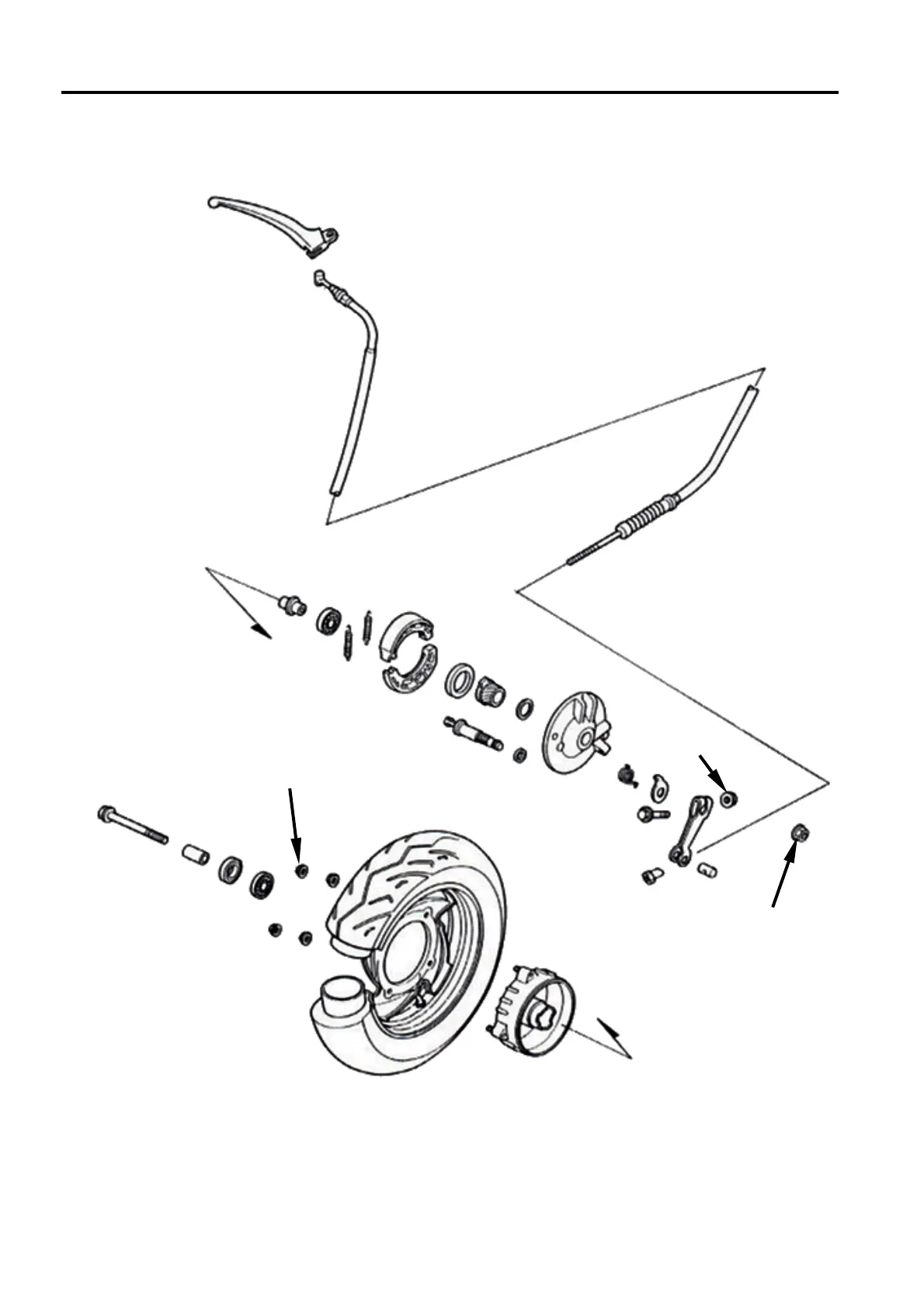

Front Drum Brake System
0.8~1.2 kgf-m
11.0~13.0 kgf-m
2.8~3.2 kgf-m
