SYM 10. A.C. GENERATOR/STARTING CLUTCH
10-9

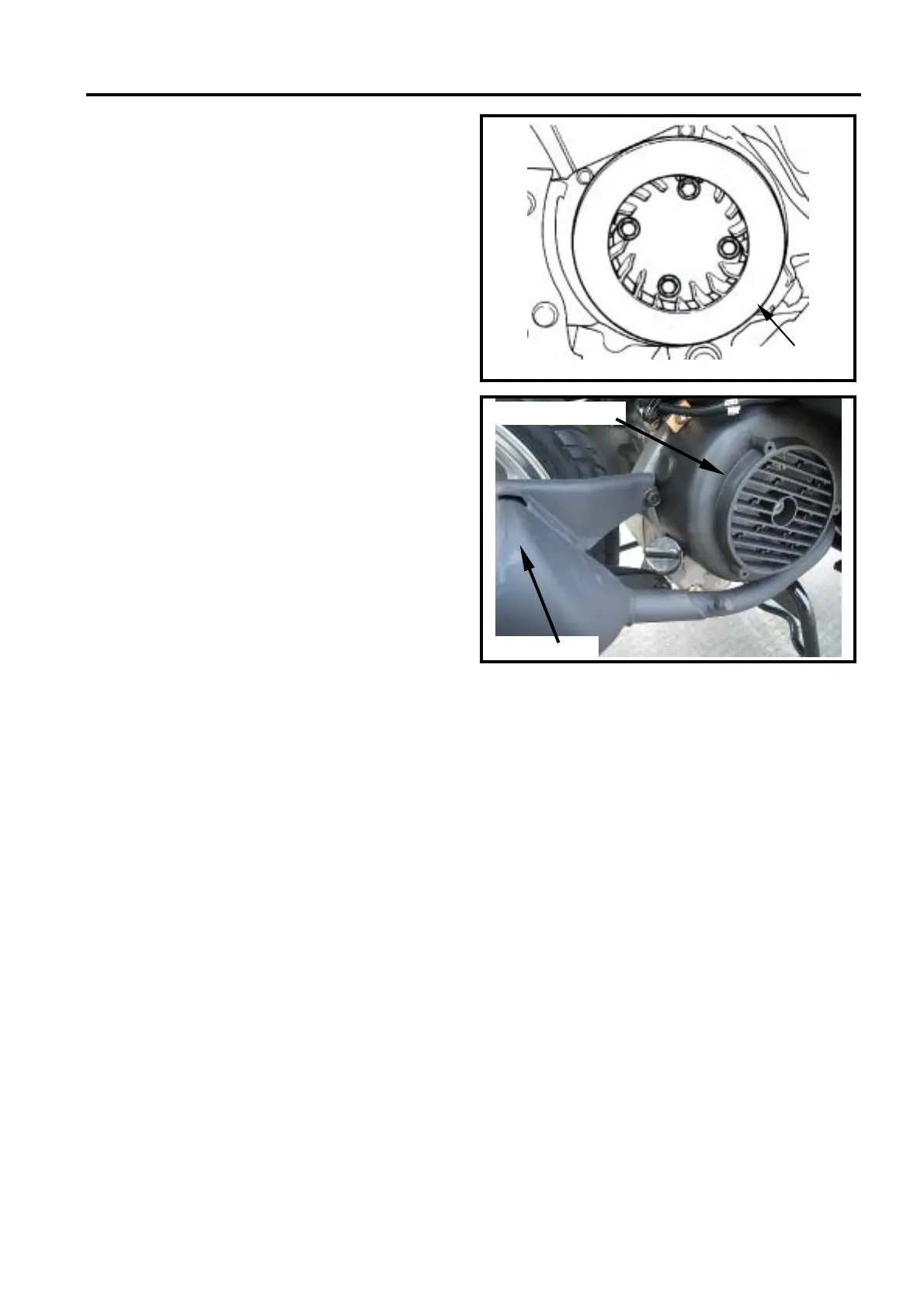

Install the cooling fan. (4 bolts)
Install the cooling fan shroud. (4 bolts)
Install the exhaust muffler. (2 bolts, 2 nuts)
Add some engine oil according the
specified quantity.
Cooling fan
Exhaust muffler
Cooling fan shroud
