SYM 11. CRANKCASE/CRANKSHAFT
11-7

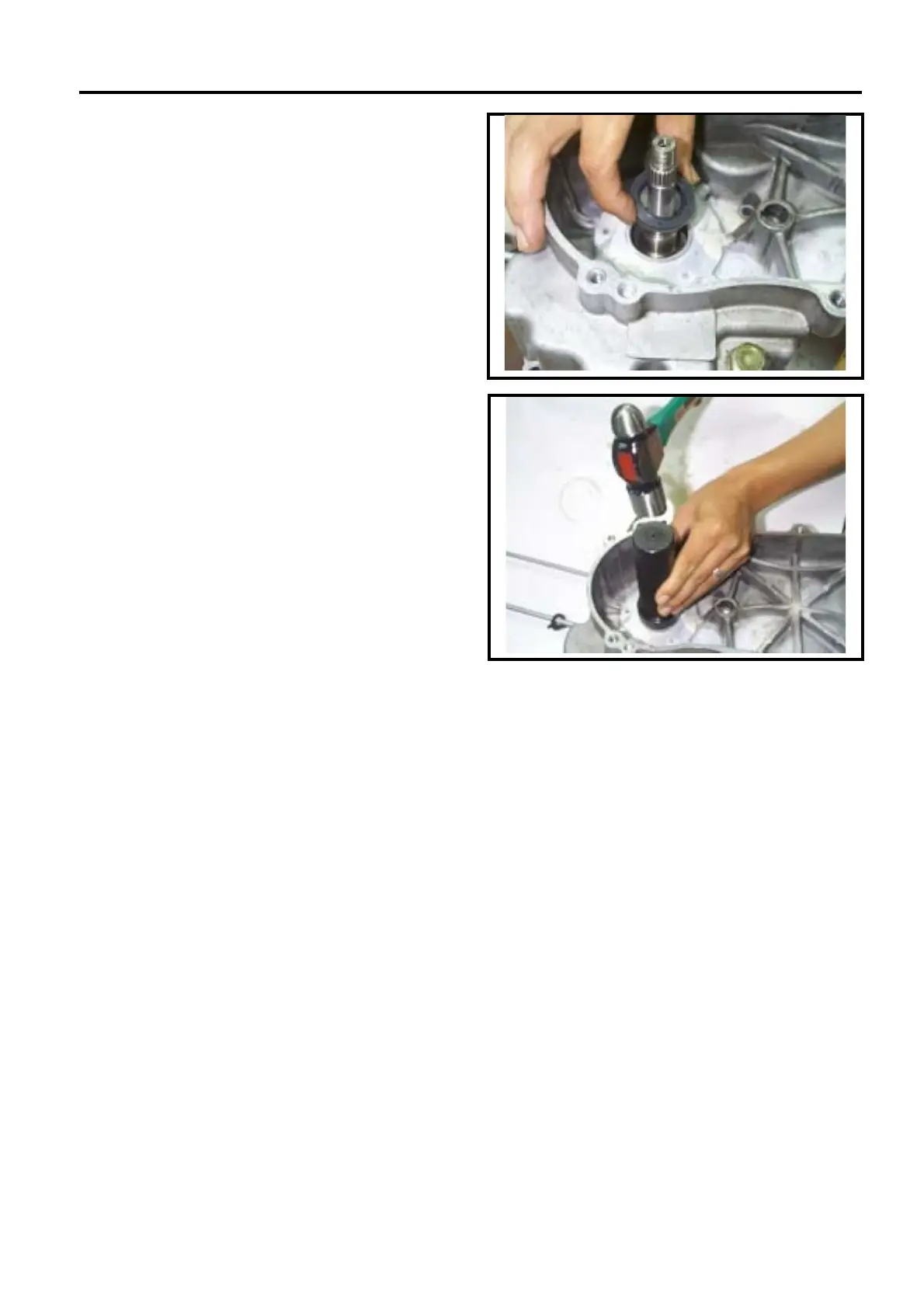

Apply with some grease onto the oil seal lip
and then install it onto the left crankcase.
Press-fit the oil seal to specified position
with the oil seal installer (25x37x6).
Special service tools: the oil seal
installer (25x37x6)
