SYM 14. STEERING/FRONT WHEEL/FRONT SHOCK ABSORBER
14-5

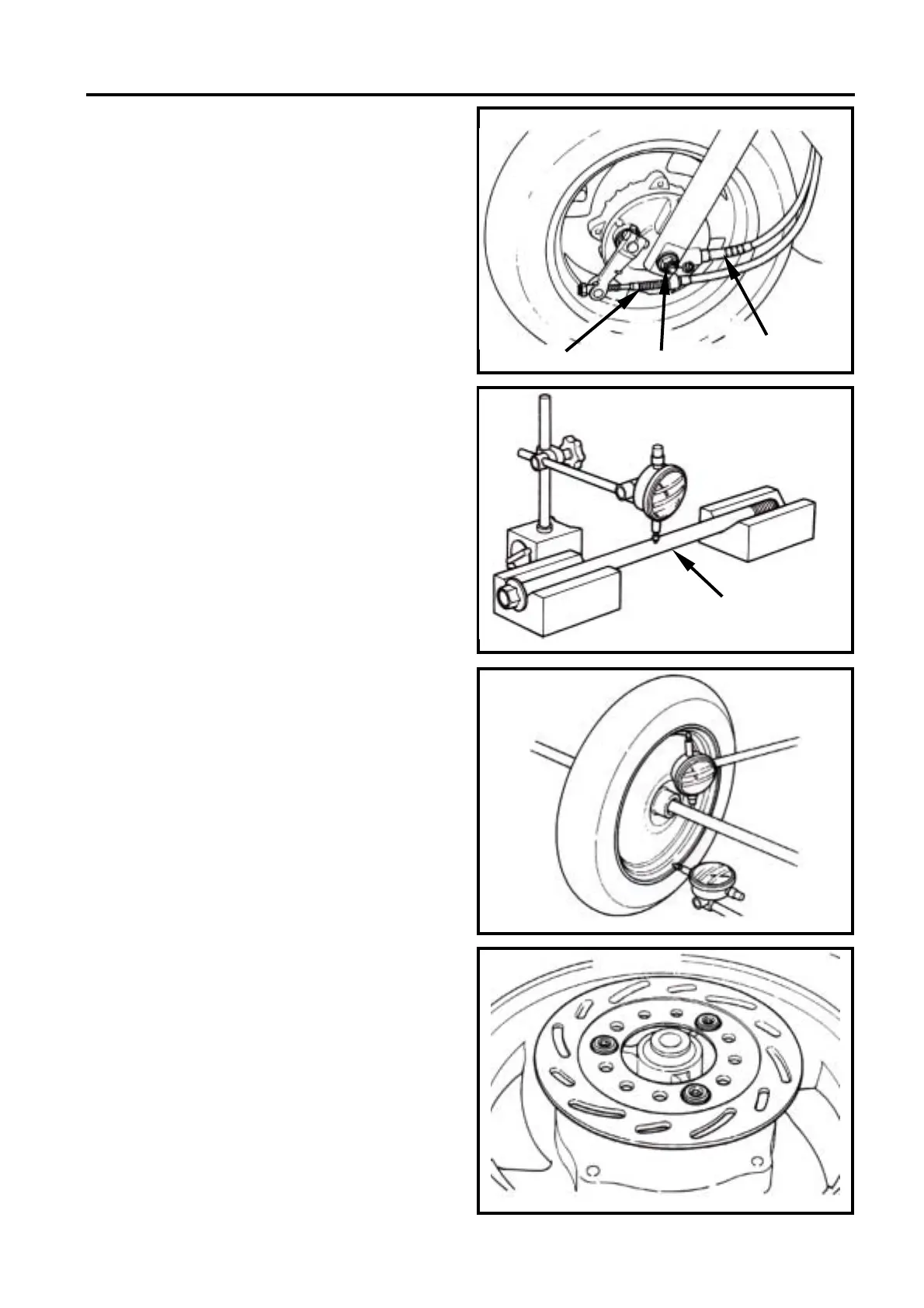

Drum brake type
Support body bottom and lift front wheel free
of ground.
Remove the bolts, and disconnect
speedometer cable.
Remove the wheel axle nut and pull out the
axle. Then, remove the front brake panel
and the front wheel.
Inspection
Wheel axle
Set the axle in V-blocks and measure the
run-out.
Service limit: 0.2 mm.
Wheel Rim
Place the wheel onto a rotated bracket.
Turn the wheel with hand and measure its
wobble value with a dial gauge.
Service limit:
Radial : 2.0 mm
Axial : 2.0 mm
Disassembly (Disc type)
Remove 3 hex socket bolts and brake disc.
Brake cable
Wheel axle nut
Speedometer
cable
Wheel axle

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
