Sym FIDDLE 125 User Manual

14. STEERING/FRONT WHEEL/FRONT SHOCK ABSORBER SYM
14-8

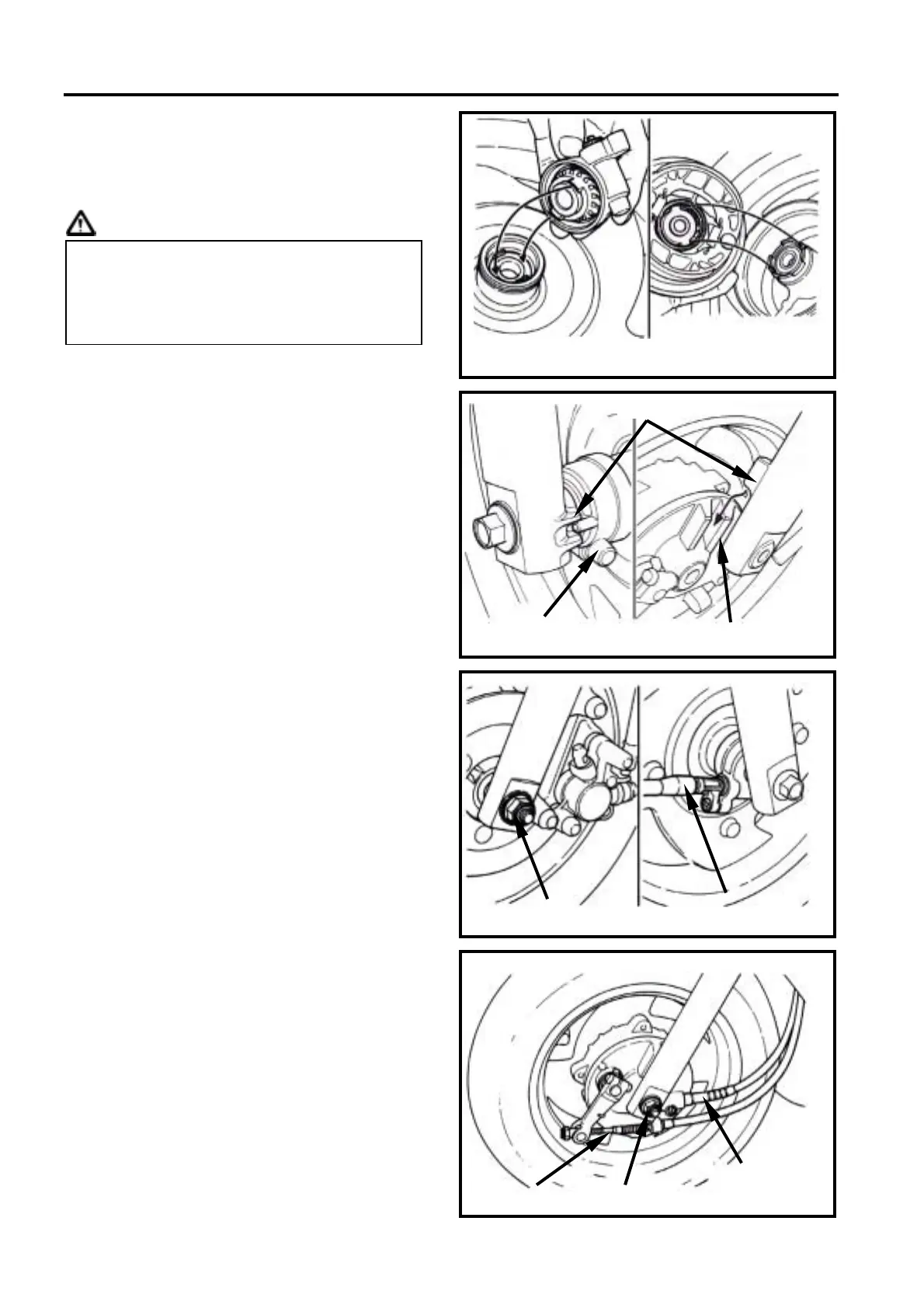

Align the flange part on the speedometer
gear with the slot of wheel hub, and then
install the brake disc (drum brake) or
speedometer gear box.
Caution
Place the front wheel between the front
shock absorbers.
Drum Brake
Align the brake panel slot with the stopper of
the shock absorber.
Disc Brake
Align the flange part on the speedometer
gear with the slot of shock absorber stopper.
Disc Brake
Install the front wheel axle from right shock
absorber side.
Install the wheel axle nut, and tighten it to
specified torque value.
Torque value: 11.0~13.0kgf-m
Connect the speedometer cable to the
speedometer gear box.
Drum Brake
Install the front wheel axle from right shock
absorber side.
Install the wheel axle nut, and tighten it to
specified torque value.
Torque value: 5.0~7.0kgf-m
Connect the speedometer cable and brake
cable to the brake panel.
Contaminated brake lining will reduce
brake performance so the brake lining,
brake drum and disc must be free of
grease.
Stoppe
r
Gear box flange part
Brake panel slot
Speedometer cableWheel axle nut
DISC BRAKE DRUM BRAKE
Brake cable
Wheel axle nut
Speedometer
cable

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
