4. FUEL SYSTEM SYM
4-4

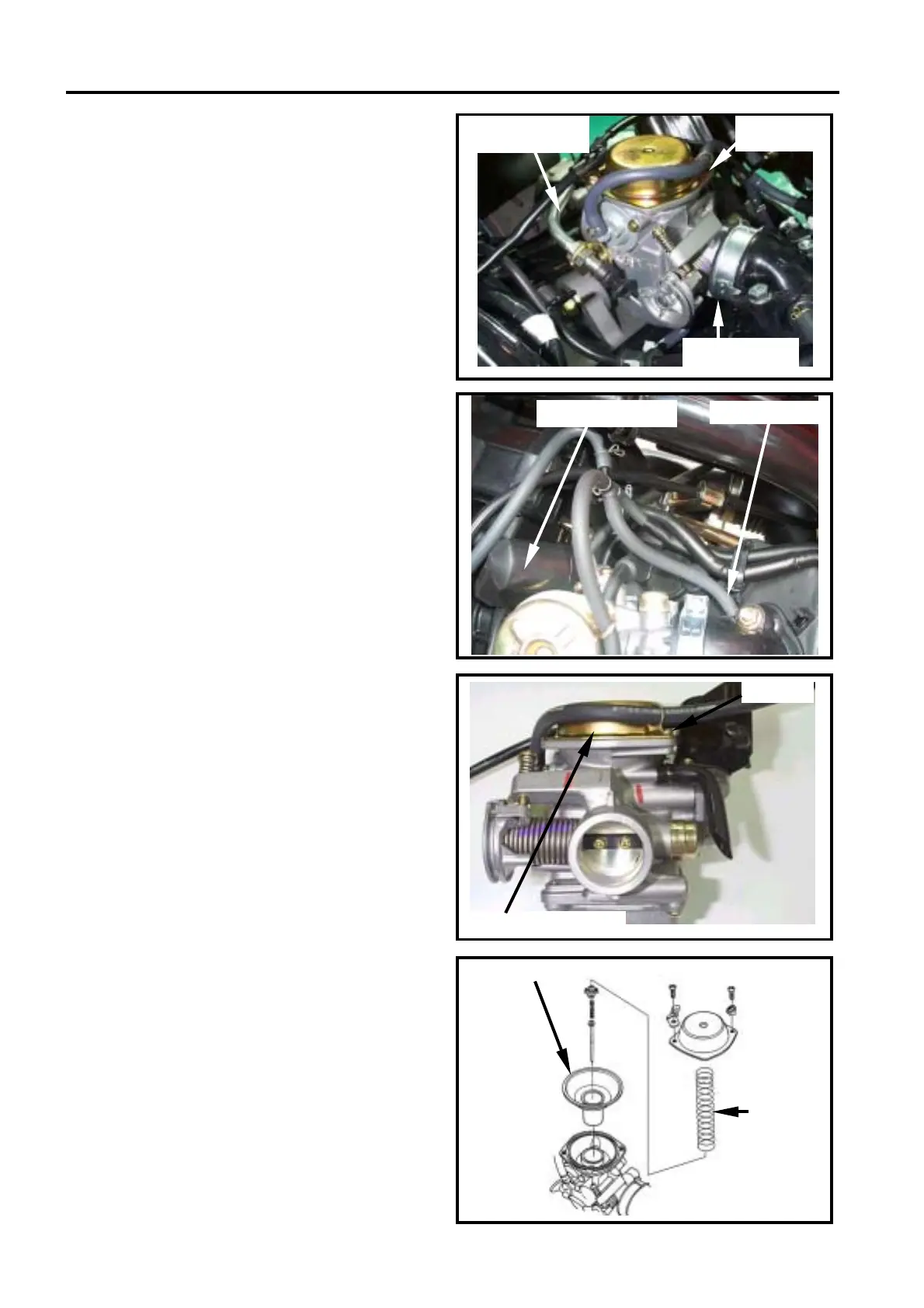

Carburetor Removal
Remove the luggage box.
Loosen the adjustment nut and fixing nut of
throttle valve cable, and release the cable
from carburetor.
Remove fuel pipe, vacuum hose.
Disconnect auto by-starter connectors.
Release the clamp strip of air cleaner.
Release the clamp strip of carburetor isolator.
Take the carburetor out.
VACUUM CHAMBER
Removal
Loosen drain screw, and drain out residual
fuel in float chamber.
Remove screws (2 screws) of vacuum
chamber cover and the cover.
Remove compress spring and vacuum
piston.
throttle valve cable
clamp strip of
isolator
vacuum
hose
Screws×2
Vacuum Chamber cove
r
Vacuum piston
compress
spring
vacuum hose
auto b
y
-starte
r

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
