Sym FIDDLE 125 User Manual

4. FUEL SYSTEM SYM
4-6

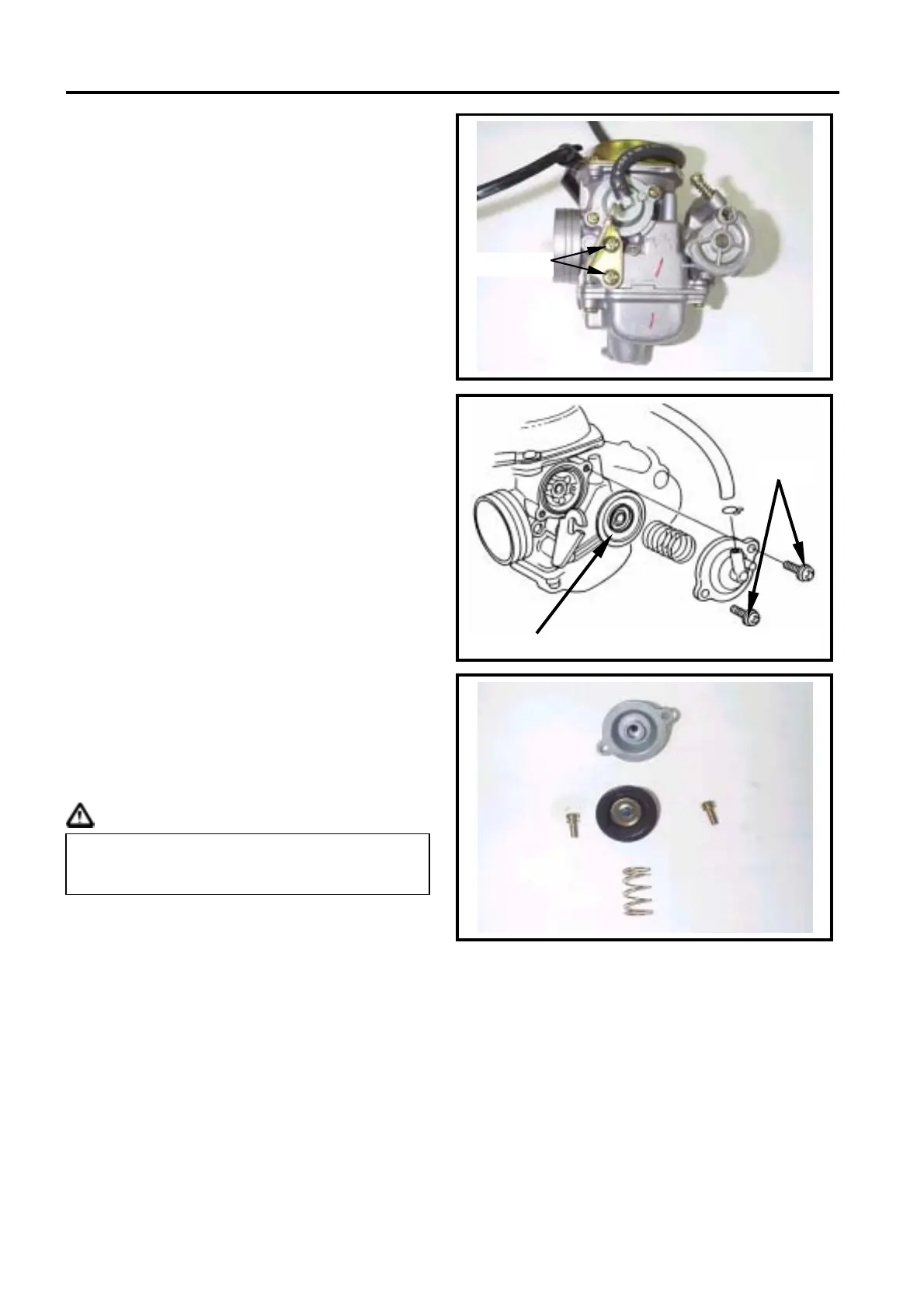

AIR CUT-OFF VALVE
Removal
Remove the vacuum hose clamp and then
the vacuum hose.
Remove the screws (screw x 2) of the air
cut-off valve and its cover.
Remove the spring and vacuum diaphragm.
Check if the vacuum diaphragm for
deterioration or crack.
Installation
Install the valve as reverse order of removal.
Cautions
Do not damage the vacuum diaphragm
or in opposite installation direction.
S
crews ×
2
vacuum diaphragm
screws

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
