SYM 4. FUEL SYSTEM
4-11

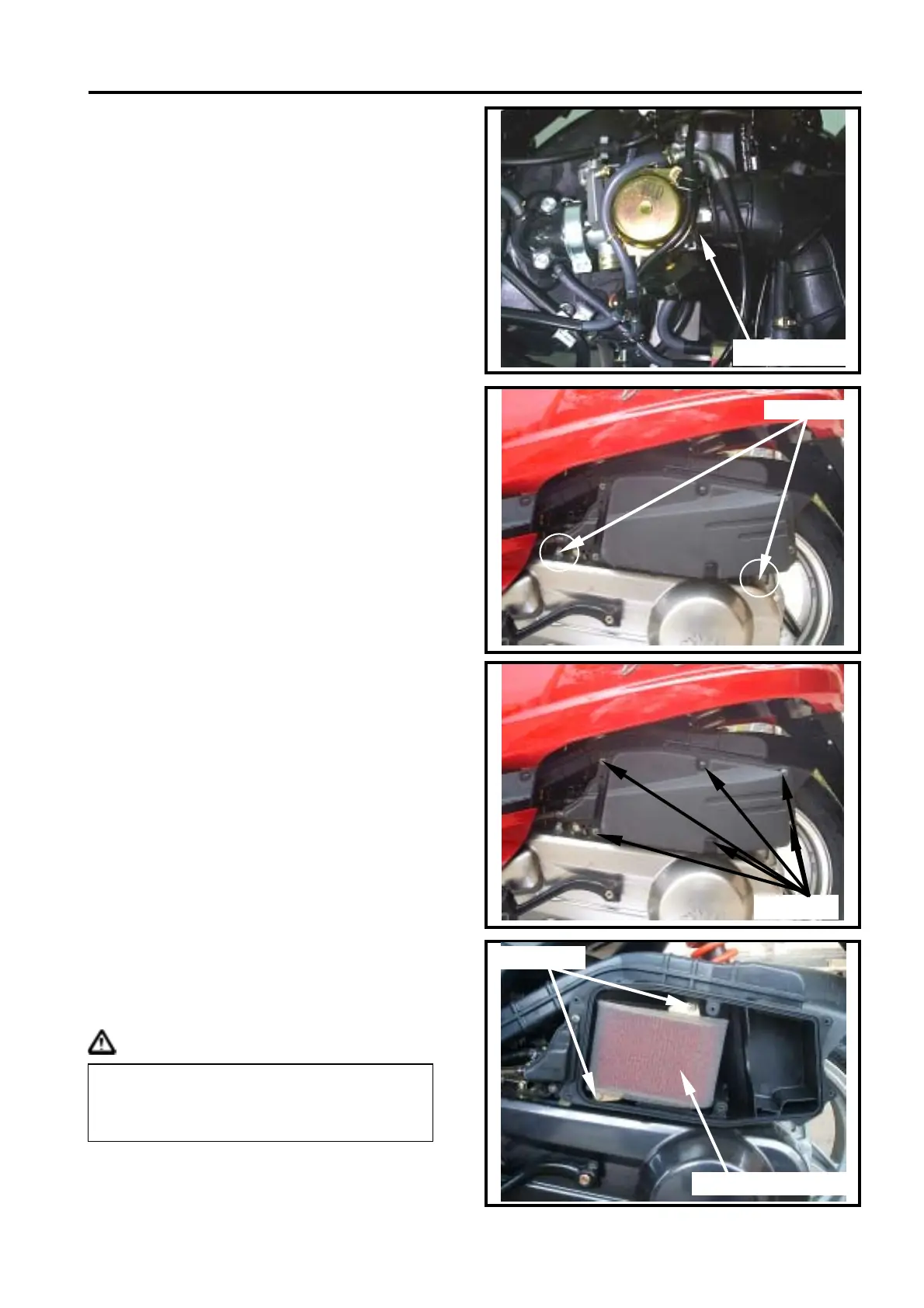

AIR CLEANER
Removal
Remove the seat .
Remove the luggage box assembly (6 bolts).
Disconnect the engine start control switch
connector.
Loosen the clamp strip of air cleaner.
Remove evaporative return hose.
Remove the air cleaner body bolts (2 bolts).
Remove the air cleaner.
Installation
Install the air cleaner in the reverse order of
removal.
Air Cleaner Element Cleaning
Remove the air cleaner cover (6 screws).
Remove the air cleaner element (2 screws).
With compressed air to clean dirty around
the element. Replace it if it is too dirty to
clean.
Cautions
The air cleaner element is made of
paper so do not soap it into water or
wash it with water.
air filter strap
screws×2
Air cleaner element
bol
t
s×2
screws×6

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
