Sym FIDDLE 125 User Manual

SYM 5. REMOVAL OF ENGINE
5-5

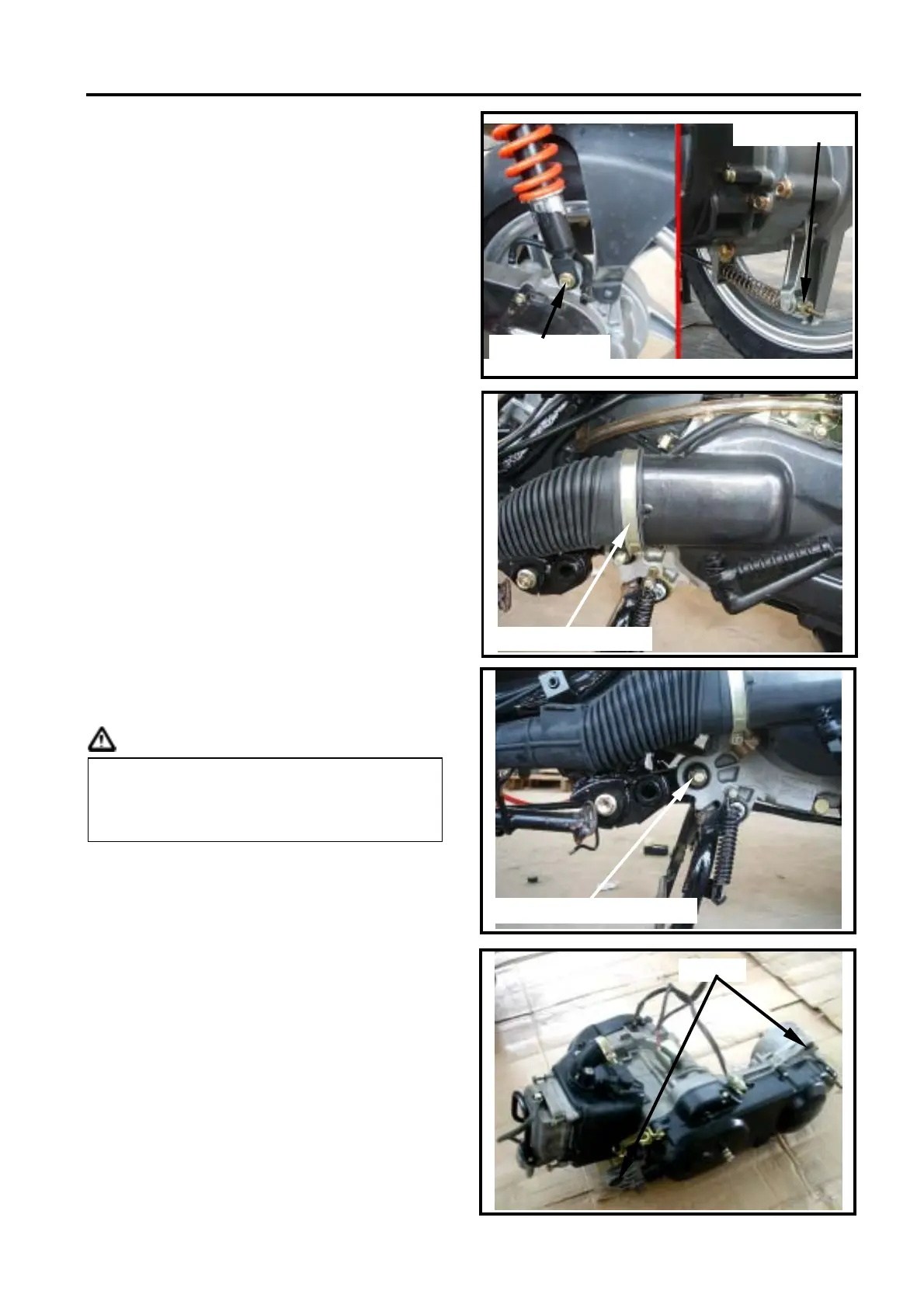

Remove the rear brake cable nut.
Remove the rear brake cable.
Remove the rear shock absorber lower bolt.
Loose the strap screw of engine left guide,
and then remove the engine left guide.
Remove the engine suspension nut and bolt
(engine side), and then remove the engine.
Caution
Check if the engine suspension, rear shock
absorber bushing, and cushion rubber for
damage. Replace them with new ones if so.
Strap screw of guide
 With a bracket to support the engine
to prevent from it damage by falling
down as removing the engine.
Engine suspension bolt/nut
Brake cable nut
Rear shock
absorber bolt
Bushing

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
