Sym FIDDLE 125 User Manual

8. V-BELT DRIVING SYSTEM/KICK STARTER ARM SYM
8-6

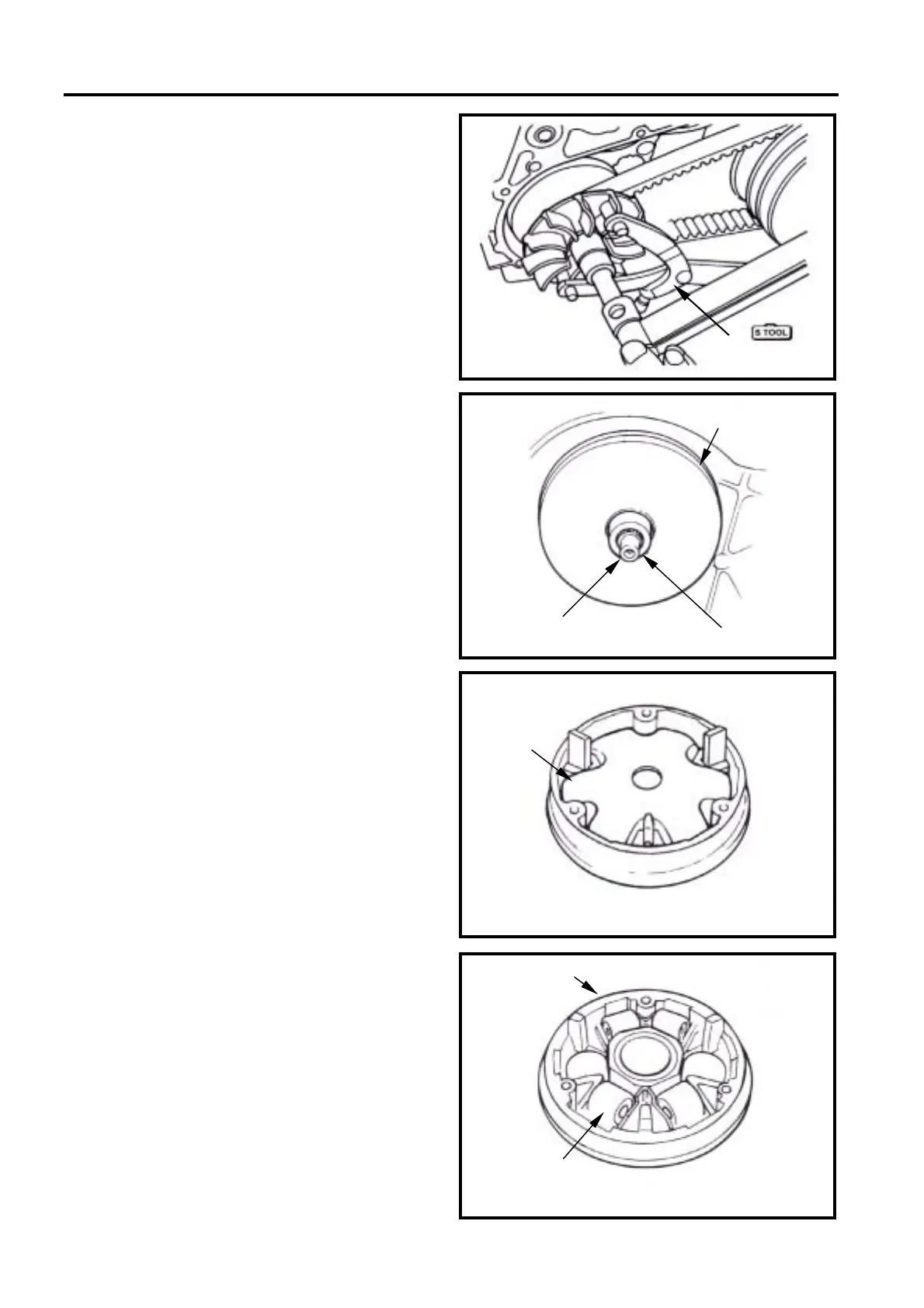

SLIDING PULLEY
REMOVAL
Remove left crankcase cover.
Hold driving pulley with universal fixture, and
then remove driving pulley nut.
Remove driving pulley.
Remove the driving belt from the pulley.
Remove sliding pulley set and driving pulley
hub from crankshaft.
Remove tilt plate.
Remove weight rollers from sliding pulley.
Crankshaft
Driving pulley hub
Sliding pulley
Tilt plate
Sliding pulley
Roller
Universal fixture

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
