8. V-BELT DRIVING SYSTEM/KICK STARTER ARM SYM
8-12
Install snap ring and mounting plate onto
setting pin.

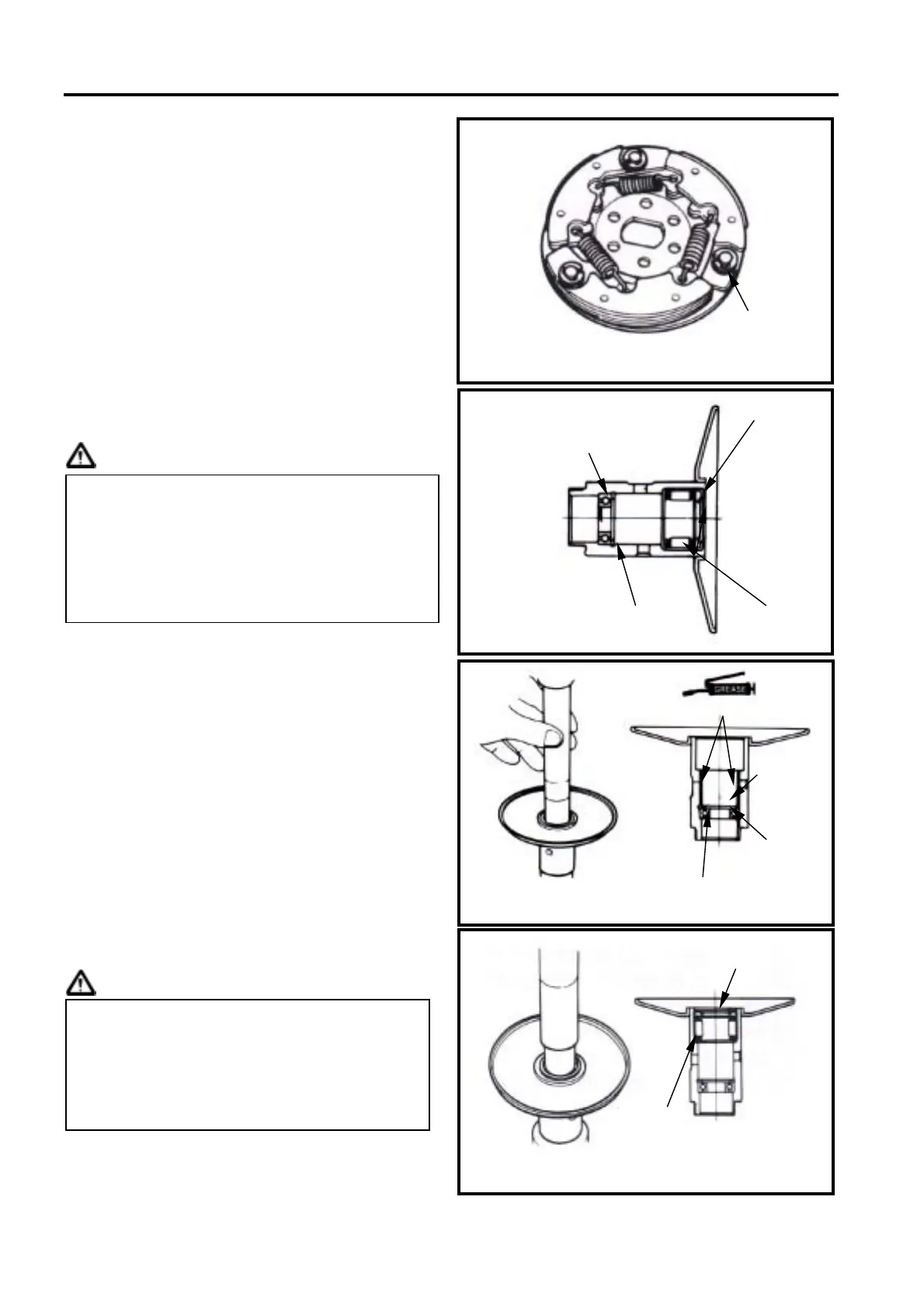

REPLACEMENT OF DRIVEN PULLEY
BEARING
Remove inner bearing.
Caution
Remove snap ring and then push bearing
forward to other side of inner bearing.
Place new bearing onto proper position and
its sealing end should be forwarded to
outside.
Apply with specified grease.
Recommended to use the KING MATE G-3.
Install the snap ring and hold the bearing.
Install a new inner bearing.
Caution
Align oil seal lip with bearing, and then install
the new oil seal (if necessary).
 Its sealing end should be forwarded to
outside as bearing installation.
 Install needle bearing with hydraulic
presser. Install ball bearing by means
of hydraulic presser.
 If the inner bearing equipped with oil
seal on one side in the driven pulley,
then remove the oil seal firstly.
 If the pulley equipped with ball bearing,
it has to remove snap ring and then the
bearing.
Snap ring
Inner bearing
Sealing end
Oil seal
Inner needle
bearing
Outer bearing
Snap ring
Snap ring
Outer bearing
Sealing end
Specified grease

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
