15

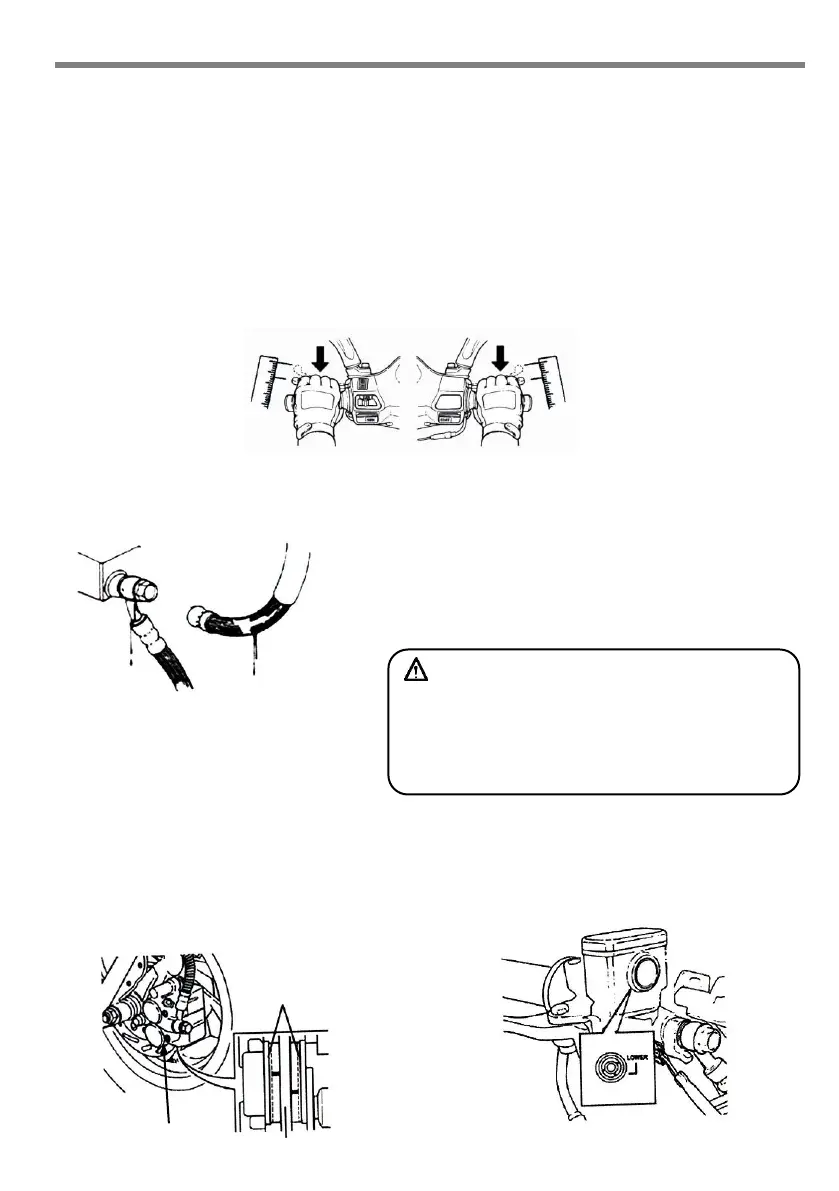

§INSPECTION AND ADJUSTMENT OF BRAKE FREE PLAY§
INSPECTION: (Brake lever free play must checked with the engine shut off.)
Brake lever and pedal free play for front and rear wheels.
◆If checking the hand-braking lever for front wheels, its free play (the stroke of hand-braking lever
from no braking to initial braking) should be 10~20mm. It is abnormal if the feel is spongy when
holding the hand-braking lever forcefully.
◆If checking the foot-braking pedal for rear wheels, its free play (the stroke of foot-braking pedal from
no braking to initial braking) should be 20~30mm. It is abnormal if the feel is spongy when press
the foot-braking pedal forcefully.
§DISK BRAKE INSPECTION§(Applicable for model equipped with disc brake.)
Visual check brake lines for leakage, or damage, check
brake lines connections for looseness using a wrench or
similar tool, and check whether steering handle vibration in
driving, or any parts’ interference may have damage the
brake lines. If so, bring your scooter to your SANYANG
dealer for repairing or service.
（leak, damaged, looseness of brake line）
（Checking front brake lining）
check the brake from behind the brake
caliper. The brake pad must be replaced
with new lining when the brake pad wear
limit reaches the brake disk.
（Checking oil quantity in brake oil
reservoir）
Park the scooter on a lever ground, and
check if fluid lever is under the “LOWER”
mark. Recommended Brake Fluid: WELL
RUN BRAKE OIL (DOT 3).
CAUTION:
Please drive your motorcycle on a dry road
surface slowly and operate front and rear brakes
in order to find out if there is any malfunction so
as to ensure the motorcycle is at optimum
condition and safe ride. .
