minute single digits).
Short press "SET" button once, figure add
1.
In setting display mode, long press the
"MODE" button for more than 2 seconds, it
can leave the setting mode.
 Fault indicator light
If there is something wrong with the ECS, the
warning light will light all the time.
 Engine oil change warning lamp
It is used to indicate the oil exchange time,
with lights, when the vehicle was driven about
1000 kilometers, indicator light will light up,
warn the users to replace the oil.
After finish oil change, After the oil change,
put the main switch in “ON”, long press "SET"
button more than 2 seconds in “ODO” mode,
then the indicator light will go out.
 Low fuel load warning light
When there is a little fuel inside the tank,
the warning light will be on.
 ABS indicator light:(ABS Model)
Normally the ABS indicator light goes on when the ignition switch is turned on and goes off
shortly after the scooter starts moving.
The ABS (Anti-lock Brake System) indicator light goes on when the ignition switch is turned on and
goes off shortly after the scooter starts moving. If the ABS is normal, it stays off. If something is
wrong with the ABS, the indicator goes on and stays on. When the indicator light is on, the ABS does
not function but if the ABS fails, the conventional brake system will still work normally.
§OPERATION OF IGNITION SWITCH §
“ON” position:
 Engine can be started in this position.
 Ignition switch key cannot be removed.
“OFF” position:
 Engine is shut off and cannot be started in this
position .
 Ignition switch key can be removed.
§OPERATION OF STEERING HANDLE LOCK SWITCH §
“Steering handle lock” position
 Turn the steering handle to left and insert the key
into, press ignition switch key clockwise and then
lightly turn it to left to the “lock” position.
 The steering handle is locked in this position.
 Ignition switch key can be removed.
 When unlocking, simply turn the key from the
“LOCK” position to the “OFF” position.
§OPERATION OF SEAT OPEN SWITCH§
 Inserted the ignition switch key in the main switch lock.
 Turn the ignition switch key to the“seat open” position counter-clockwise.
 Then, the seat will be open.
I
G
N
I
T
I
O
N
S
W
I
T
C
H

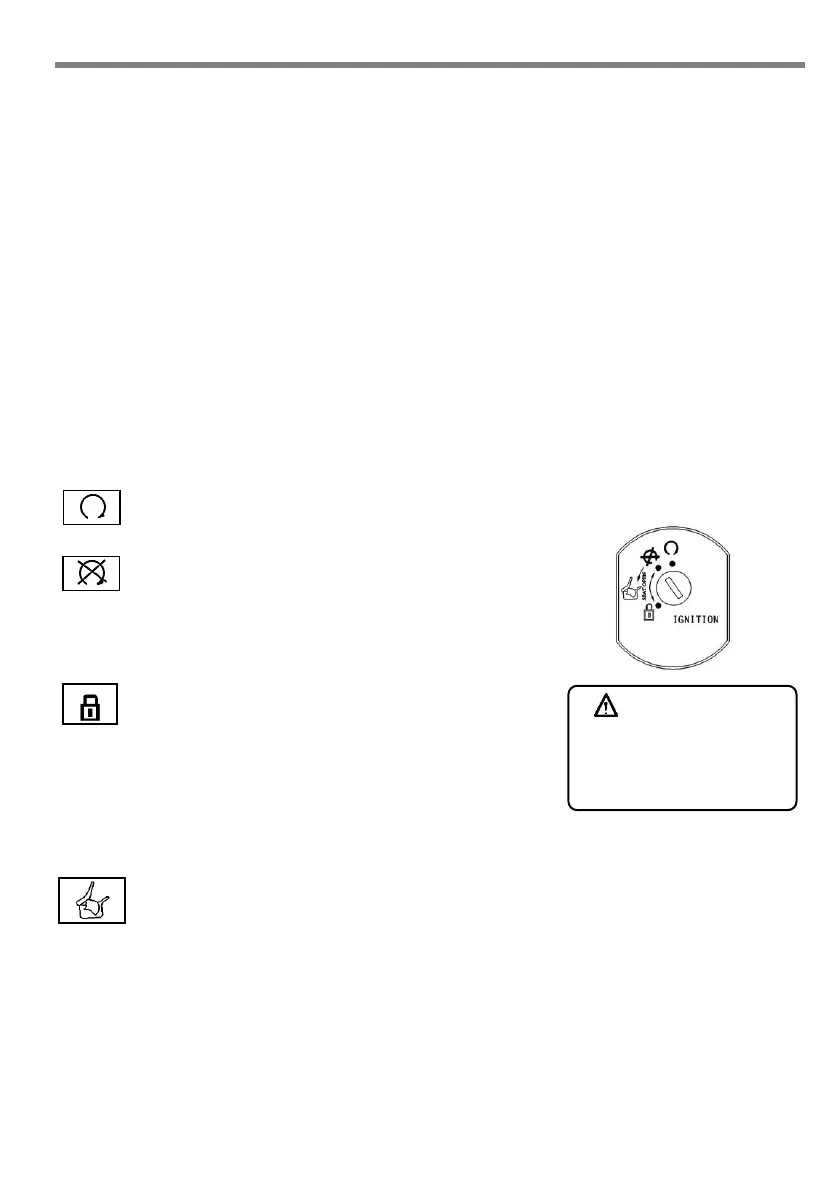

IGNITION SWITCH
CAUTION:
 Make sure to take the
key away with you
before you lock your
seat.
