See “About the storage shelf rear panel” on page 44.
See “About the Symantec Storage Shelf” on page 39.
About the storage shelf rear panel
The Symantec Storage Shelf contains two I/O modules and two power supplies.
The I/O modules make the storage capacity in the storage shelf available to the
RAID controller in the NetBackup Appliance. This section provides the information
about the I/O modules and power supplies.

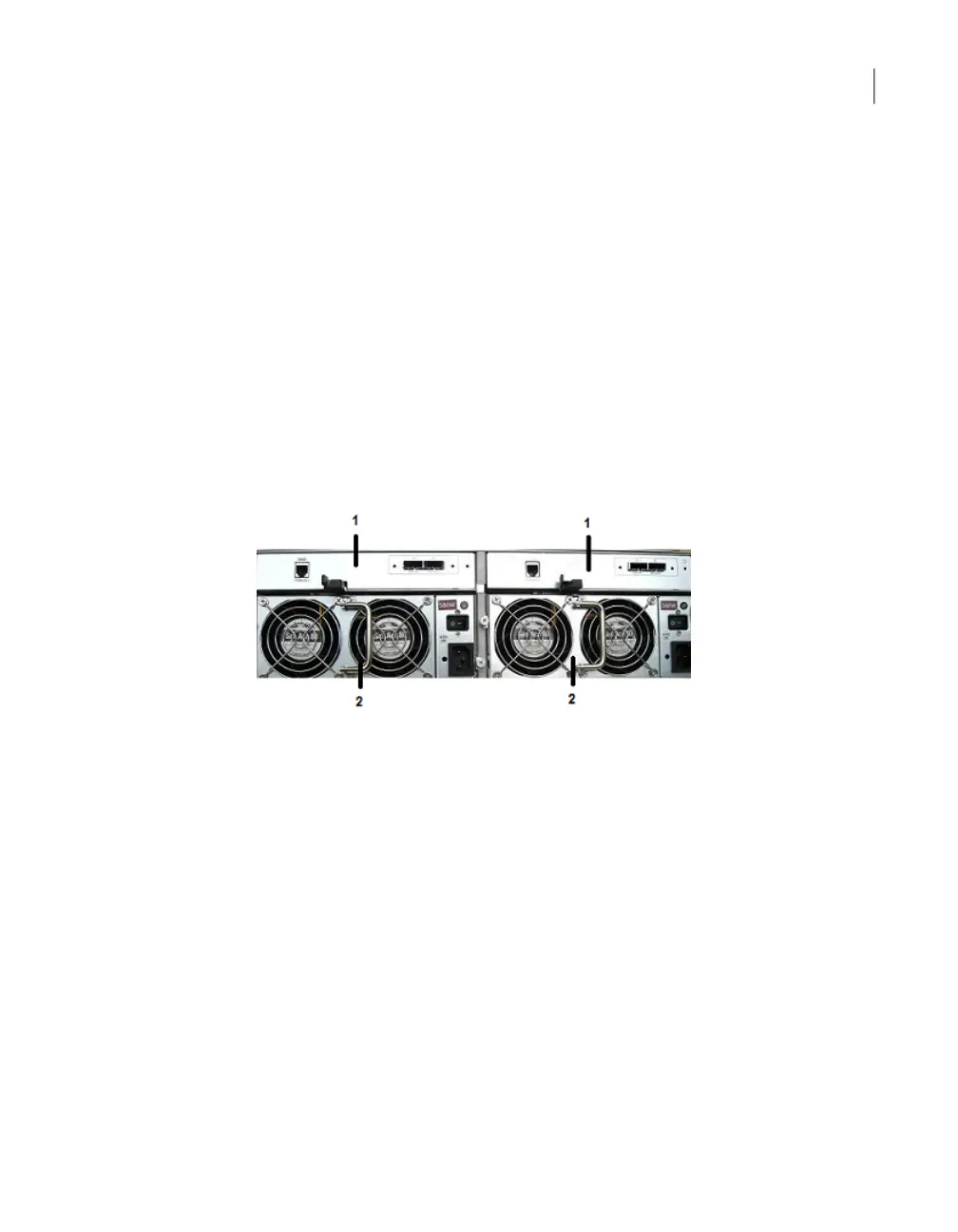

Figure 4-4 shows the storage shelf rear panel. The rear panel provides access to
the I/O modules (1) that connect the storage shelf to the NetBackup appliance. The
power supplies (2) are located under the I/O modules.
Figure 4-4
Storage shelf rear panel
The I/O modules include the SAS_IN and the SAS_OUT ports. The SAS_IN port
is used to connect the I/O module directly to the SAS port on the appliance external
RAID card. If more than one storage shelf is used, the SAS_OUT port of the shelf
that is attached to the appliance attachs to the SAS_IN ports of the next shelf.
Figure 4-5 shows the components in a storage shelf I/O module. Table 4-3 provides
the information about the components available on the I/O module.
44About the Symantec Storage Shelf
About the storage shelf rear panel
