14

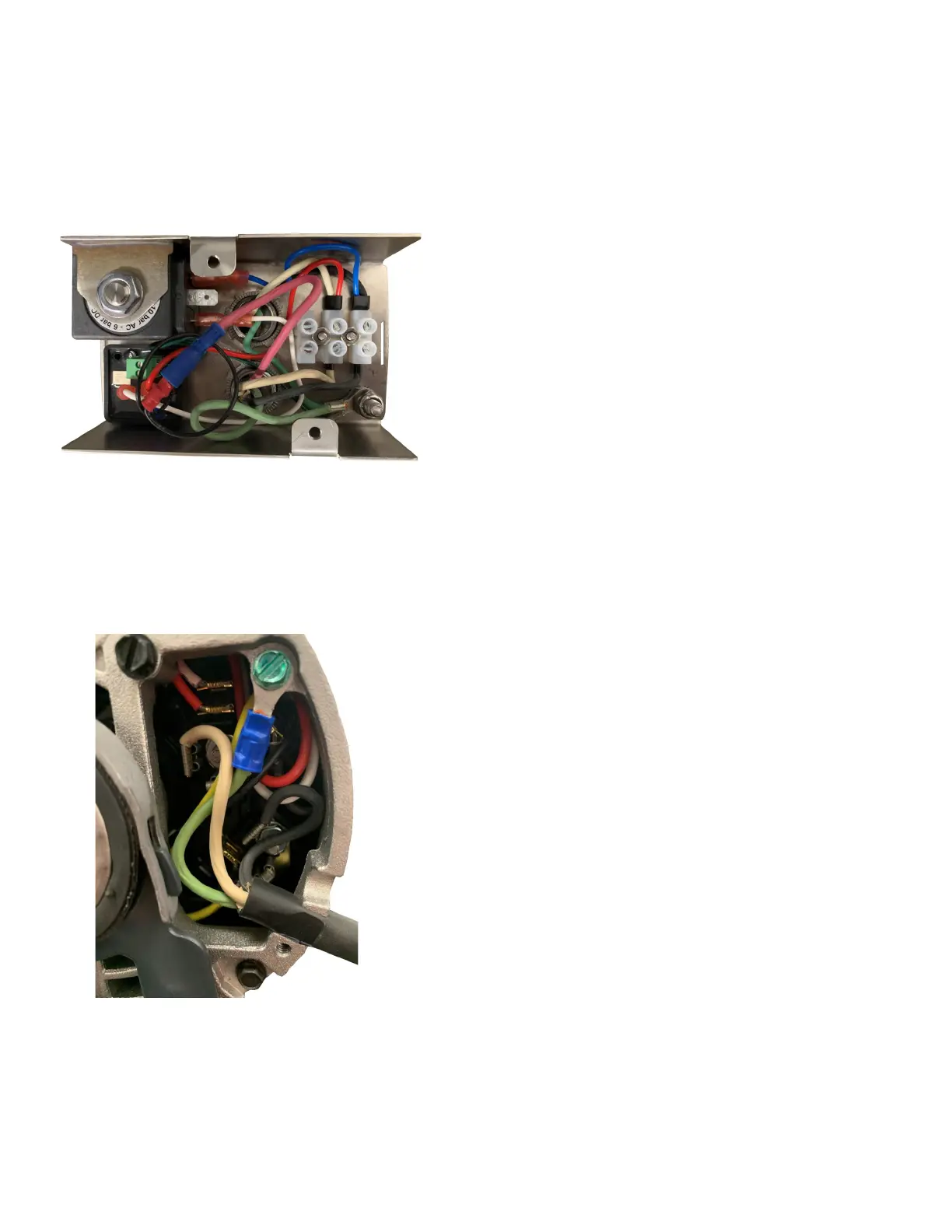

MVP Hydra Pump/Motor Wiring:
For the MVP Hydra machines, the power cord to the pump/motor is connected within the bypass box.
To connect the power cord: Insert the color coded
pump cable into the opening of the matching bypass
box and attach the wires to the terminal as shown in
the picture to the left: green wires stacked on the
ground bolt, white matches across to white/red on ter-
minal block, black matches across to black/blue on ter-
minal block, and the male bullet connector on the black
wire connects to the female bullet connector on the
red wire.
MODEL SPECIFIC REQUIREMENTS & INSTALLATION
MVP Pump/Motor Wiring:
For the MVP machines, the power cord to the pump/motor is connected directly to the motor.
To connect the power cord: Secure the ring terminal on the
green grounding wire to the frame of the motor using the
green screw. Insert the spade connector of the white wire
to the upper terminal. Insert the spade connector of the
black wire to the lower terminal. Blank spade connectors
are installed in factory on the terminals that should not be
used in the motor. Never connect the white and black wires
to the same brass terminal plate.
Once the wires are connected, secure the cover plate over
the wires using the two black screws on the motor housing.
Power then runs from the bypass box to the motor by a separate, shorter cable that is already installed.
