Electrical Box:

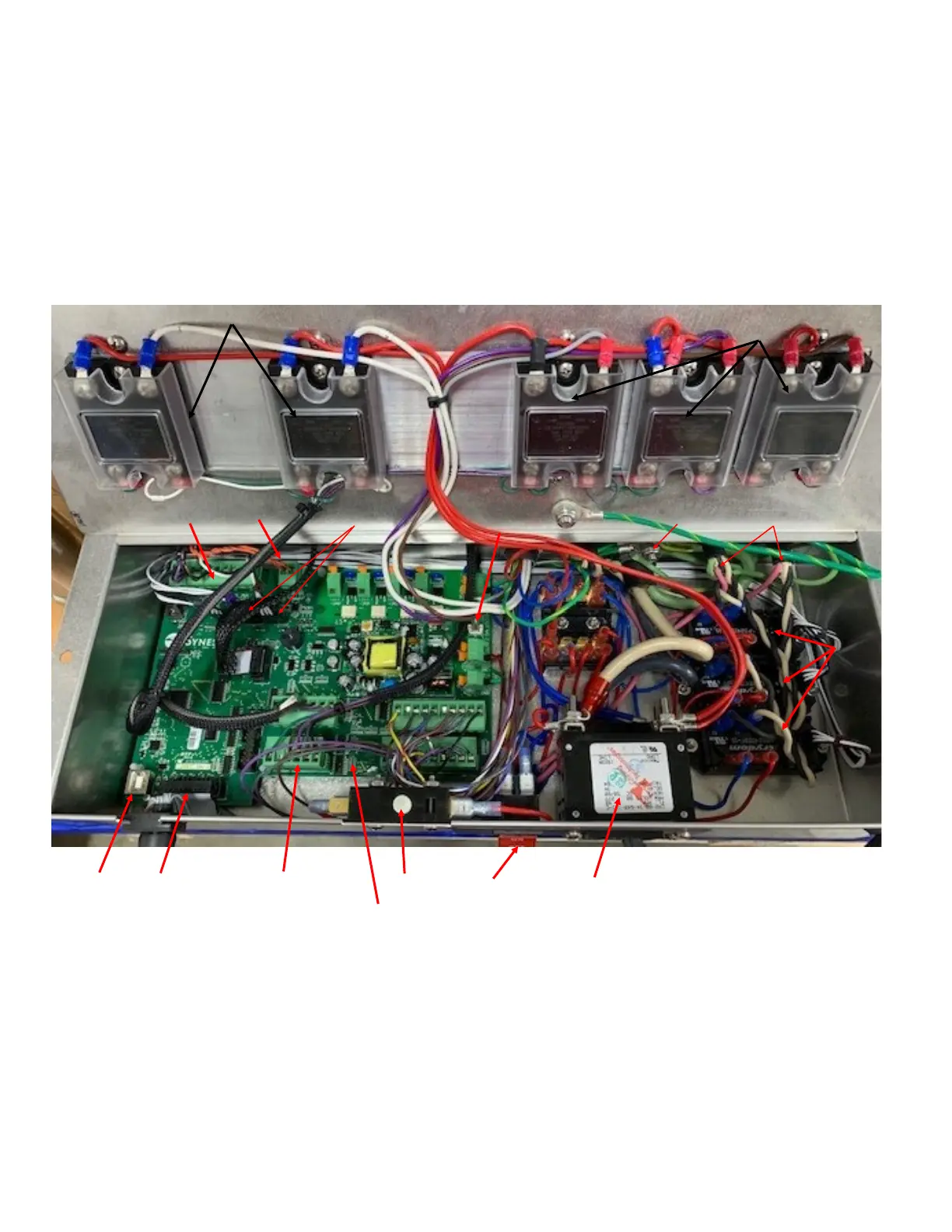

Located underneath the machine, the electrical box contains all the power and signal wiring running to and
from the Synesso™ machine. Since the 2 boxes represented below have many of the same components, they
have been labeled with numbers for matching components and the descripons follow in the next pages.
3 Group MVP Hydra Electrical Box
ELECTRICAL SYSTEM
Electrical Box Components (Numbered):
1. Brew Relays: Switch high voltage onto the brew tank heang elements.
2. Each Pump Motor Wire: Carries 220v to the pump motors from the electrical box. Contains 3 wires:
black (L2/N), white (L1) and green (ground). A fourth wire (Red), is used for the bypass system control
when appropriate.
3. Grounding Post: For all earth ground connecons.
4. Lid Safety Switch: Cuts power to the control board and other electronics when the lid is removed.
1
2
3
4
5
6 7
15
10
17 16
11
12
14
13
9
18
To Next Page
