2.2.8 DX/DE-65 – 200
1 2 3 4 5 6
7
8
9
10

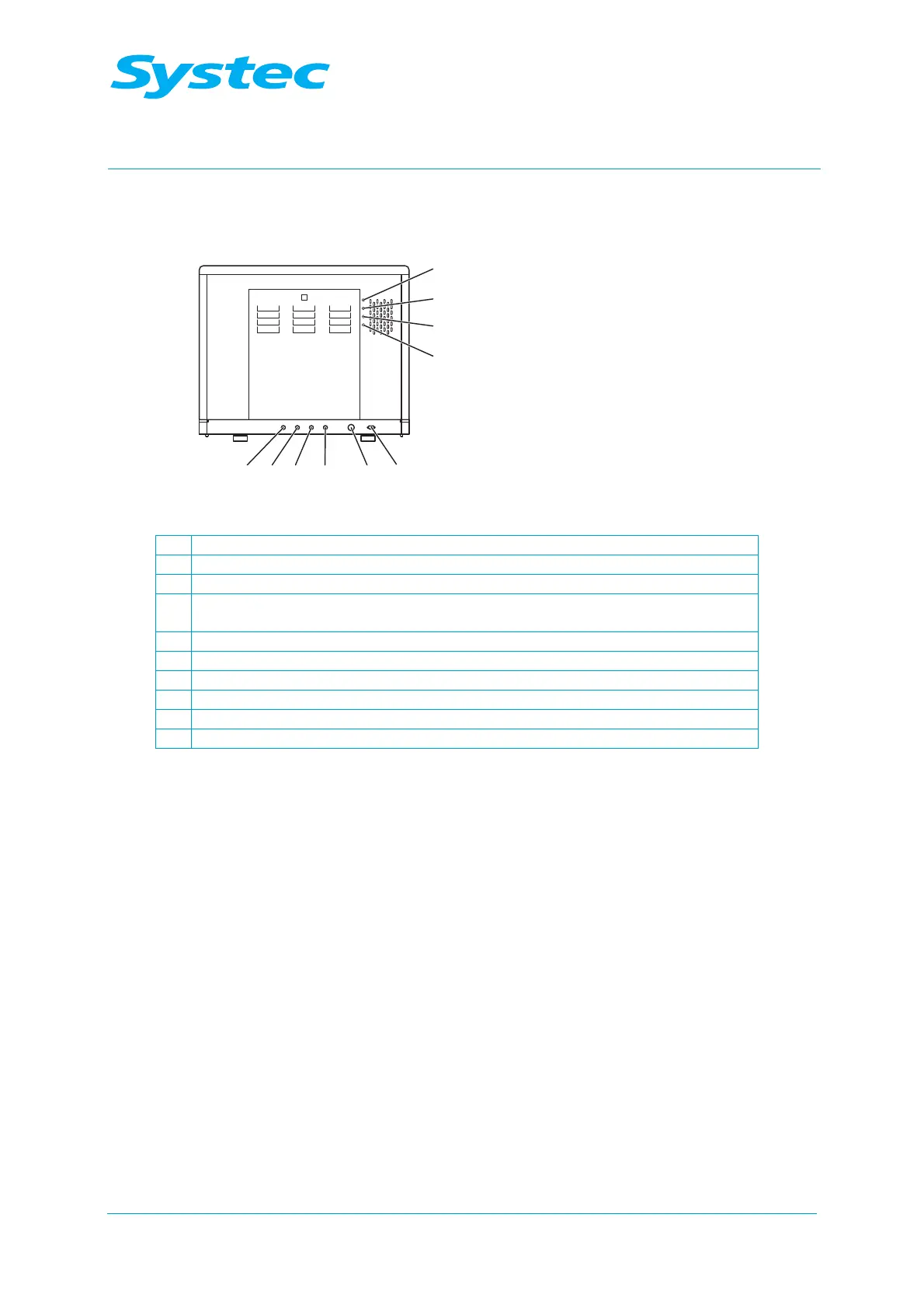

Fig. 9: Device connections on rear of DX/DE-65 – 200
1 Cooling water (3/4") outer thread, pressure > 1 bar
2 Demineralised water (3/4") outer thread, pressure > 1 bar
3 Compressed air (7.2 mm quick release connector)
4
Waste water (3/4") outer thread (drain provided by customer temperature-
resistant to 103 °C)
5 Mains connection (3 phase, 380 – 400 V + N + PE)
6 Serial interface (RS-232 for connection to a PC)
7 Safety temperature limiter (STL)
8 Water feed pump fuse
9 Compressor fuse
10 Vacuum pump fuse
