112 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016
NFPA Standard-Specific Requirements
The following figure illustrates an example of Central Station/Remote Station Reporting using a
411UD. The relay contacts from the PDRP-2001 may be used to trip any dialer UL-listed for
Central Station/Remote Station Reporting Services.

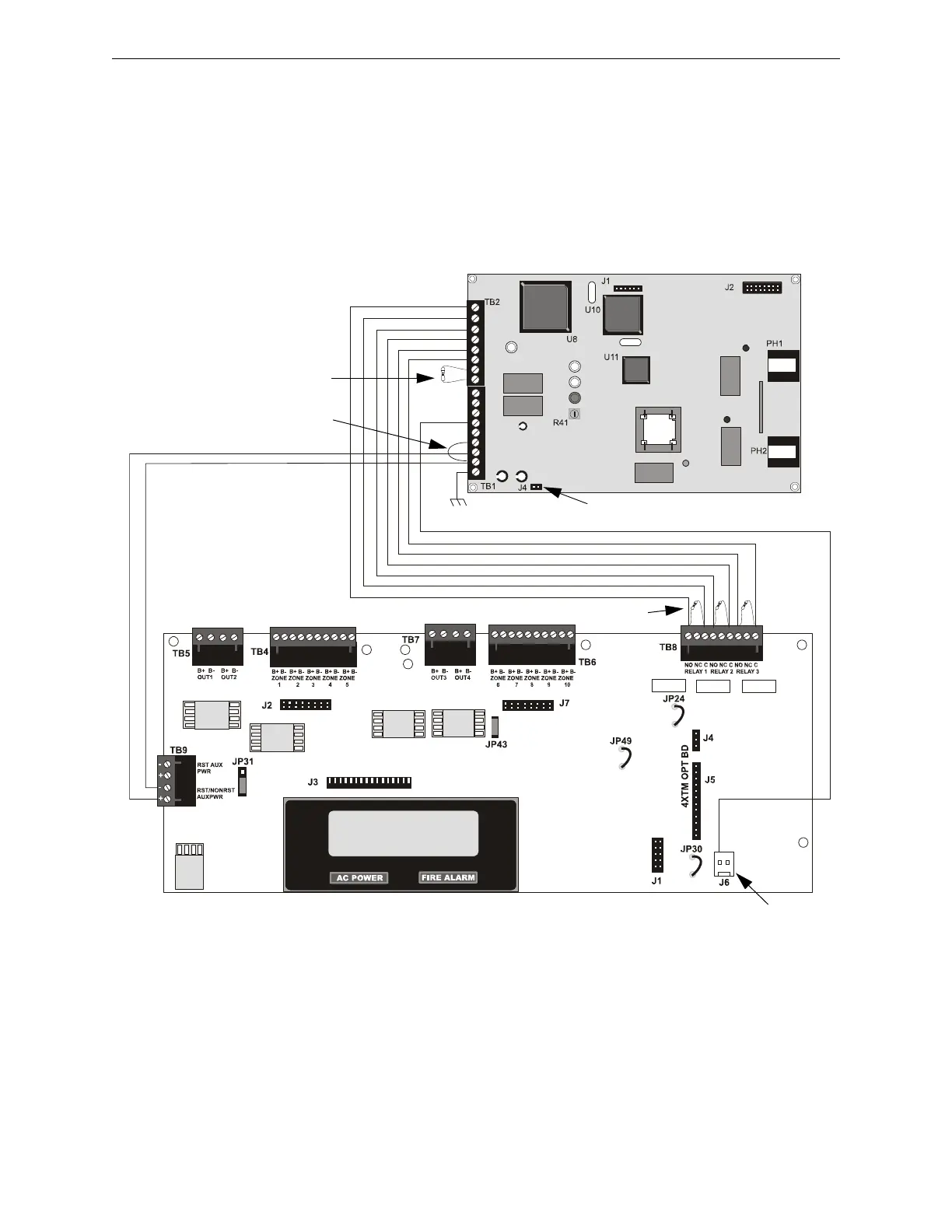

Figure C.1 FACP Connection to 411UD
Channel1
Channel 2
Channel 3
Channel 4 (2.2K ELR)
Relay Output (DACT Trouble) from 411UD
FACP Supervisory Relay
FACP Alarm Relay
FACP Trouble Relay
J4 Not Installed
411UD
1
2
3
4
5
6
7
8
+ 24 VDC nonresettable
- 24 VDC nonresettable power
2.2K ELRs P/N 27070
1
2
3
4
5
6
7
8
9
1 2 3 4 5 6 7
FACP
Jumper -VDC to Trouble Relay contact
Trouble Input
(nonsupervised
, power-limited)

System Sensor PDRP-2001 Specifications

General

Brand	System Sensor
Model	PDRP-2001
Category	Control Panel
Language	English
