Product Description Controls and Indicators
1.3 Controls and Indicators
LCD Display
The FACP uses an 80-character (4 lines X 20 characters) high viewing angle LCD display. The
display includes a long life LED backlight that remains illuminated. If AC power is lost and the
system is not in alarm, the LED backlight will turn off to conserve batteries.
Key Panel
Mounted on the main circuit board, the key panel includes a window for the LCD display and
indicators as listed above. The key panel, which is visible with the cabinet door closed, has 25 keys,
including a 16 key alpha-numeric pad similar to a telephone keypad.
Function keys:
• Acknowledge/Step
• Alarm Silenced (Domestic/Export version)/Signal Silence (Canadian version)
• Drill (Domestic/Export version)/Alarm Signal (Canadian version)
• System Reset (lamp test)
Service/program keys:
• Keys labeled 1 to 9
• * key
• # key
• 0 (recall) key
• 1st Event key
• Clear key
• Escape key
• Mode key
• Four cursor keys (up, down, left and right)
• Enter key
Local Piezo Sounder
A piezo sounder provides separate and distinct pulse rates for alarm, trouble and supervisory
conditions.
Indicators
Indicators are provided to annunciate the following conditions:
• Fire Alarm - red indicator
1
1
2
3
4
5
6
7
8 9
0
ABC DEF
GHI
-/.
ESC
JKL
SIGNAL
SILENCE
ENTER
TROUBLE
ALARM SILENCED
SUPERVISORY
AC POWER
FIRE ALARM
PRE-DISCHARGE
DISCHARGE
A
B
O
R
T
1
1
2
3
4
5
6
7
8 9
0
ABC DEF
GHI
-/.
ESC
JKL
ALARM
SILENCED
ENTER
TROUBLE
ALARM SILENCED
SUPERVISORY
AC POWER
FIRE ALARM
PRE-DISCHARGE
DISCHARGE
A
B
O
R
T

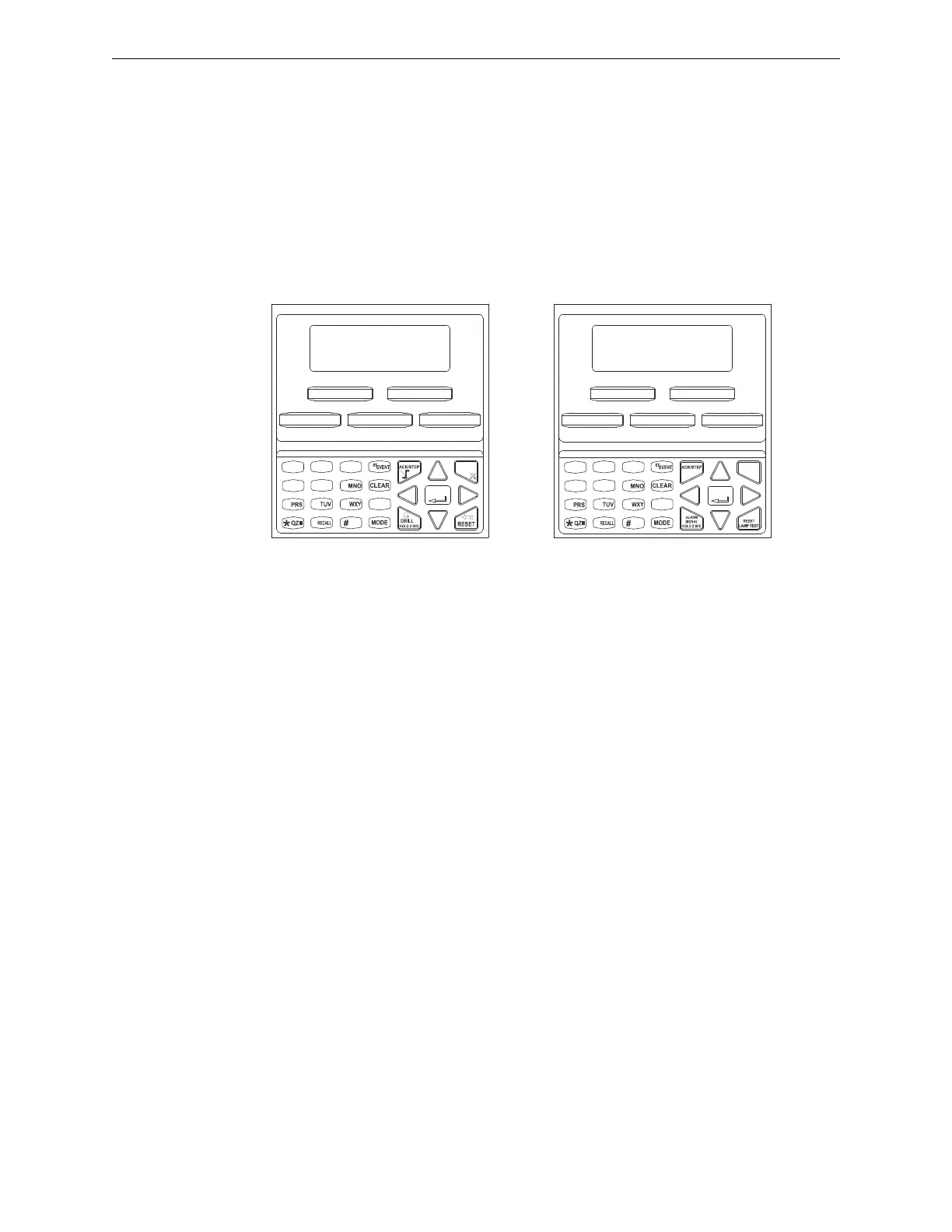

Figure 1.2 Membrane/Display Panel
MRP200xkypd.wmf/mrp-200xckypd.wmf
PDRP-2001 Keypad PDRP-2001C Keypad
