SystemAir SysAqua Series

English
-15
-10
-5
0
5
10
15
20
25
30
35
40
45
50
55
-15 -10 -5 0 5 10 15
20
Leaving water temperature (°C)
Air temperature (°C)
BRINES or
WATER + GLYCOL
+ Fan speed controller
WATER + Fan
speed controller
BRINES or
WATER + GLYCOL
WATER
-20
-15
-10
-5
0
5
10
15
20
25
15 20 25 30 35 40 45 50 55
Leaving water temperature (°C)
Air temperature (°C)
10 SysAqua

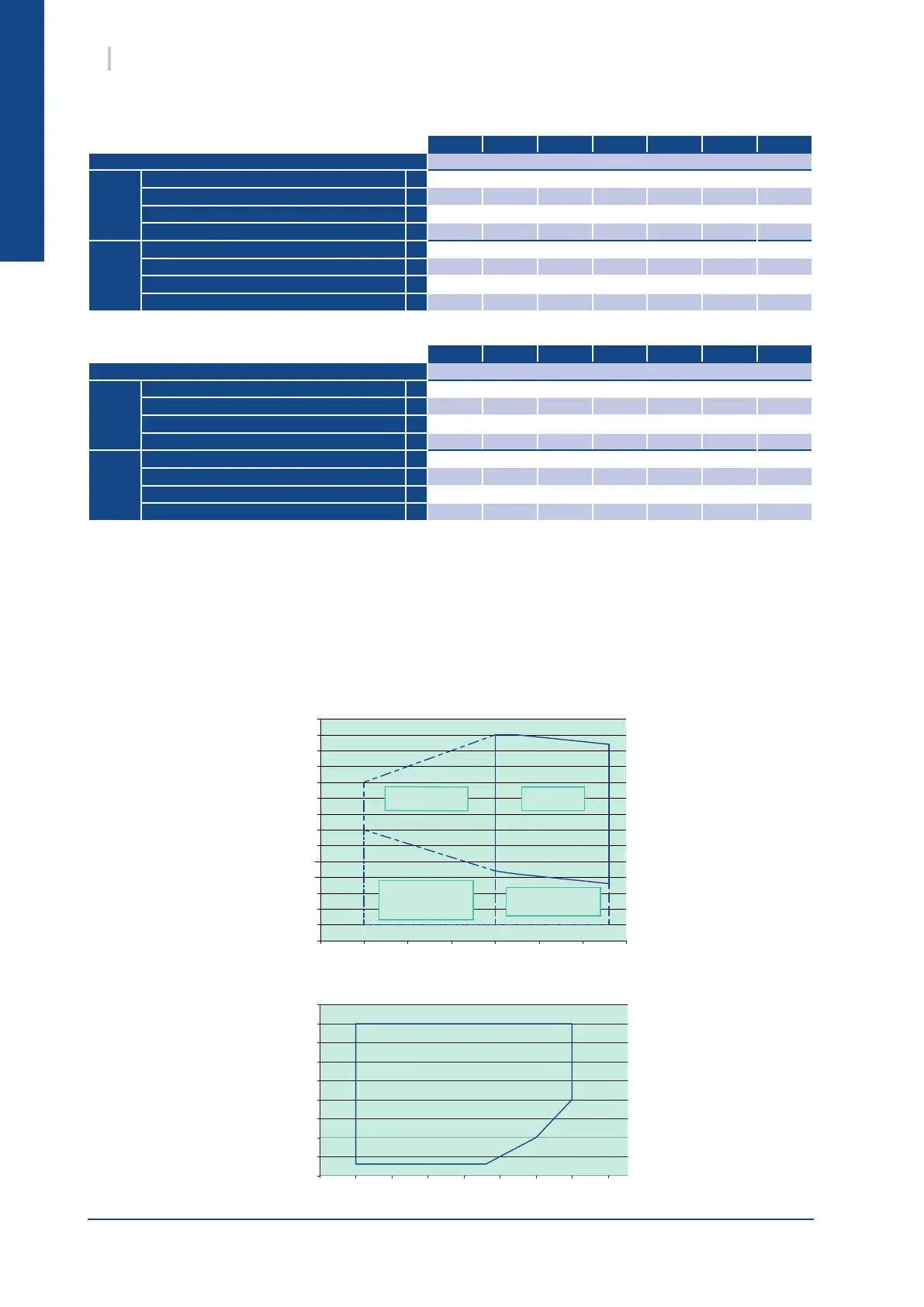

8.3. ELECTRIC SPECIFICATIONS
8.3.1. SYSAQUA WITH STANDARD FAN
IMPORTANT
* These datas are given for guidance only. They must be checked aat commissioning according to prevailing
standards. They depend on the installation and the cables used.
A main fuse must mandatorily be provided on the power supply.
² Fuses not supplied
² Cables not supplied
8.3.2. SYSAQUA WITH HIGH-PRESSURE FAN
45 55 65 75 90 105 125
Power supply
400V / 3~ N / 50Hz
Without
pump
Maximum current A 40.20 44.20 59.43 64.43 77.90 85.96 101.96
Fuse rating aM A 50 50 63 80 80 100 125
Total starting current (without soft starter) A 133.20 140.20 201.43 206.43 264.90 311.96 349.96
Total starting current (with soft starter) A 65.80 72.80 101.03 106.03 127.30 145.76 182.56
With
pump
Maximum current A 42.77 49.10 64.33 69.33 82.80 90.86 106.86
Fuse rating aM A 50 50 80 80 100 100 125
Total starting current (without softstarter) A 135.77 145.10 206.33 211.33 269.80 316.86 354.86
Total starting current (with softstarter) A 68.37 77.70 105.93 110.93 132.20 150.66 187.46
45 55 65 75 90 105 125
Power supply
400V / 3~ N / 50Hz
Without
pump
Maximum current A 40.90 44.90 62.83 67.83 79.30 87.36 103.36
Fuse rating aM A 50 50 63 80 80 100 125
Total starting current (without soft starter) A 133.90 140.90 204.83 209.83 266.30 313.36 351.36
Total starting current (with soft starter) A 66.50 73.50 104.43 109.43 128.70 147.16 183.96
With
pump
Maximum current A 43.47 49.80 67.73 72.73 84.20 92.26 108.26
Fuse rating aM A 50 50 80 80 100 100 125
Total starting current (without softstarter) A 136.47 145.80 209.73 214.73 271.20 318.26 356.26
Total starting current (with softstarter) A 69.07 78.40 109.33 114.33 133.60 152.06 188.86
8.4. OPERATING LIMITS
8.4.1. SYSAQUAL/SYSAQUAH COOLING MODE
8.4.2. SYSAQUAH HEATING MODE
