SystemAir SysAqua Series User Manual

English
Do not tilt the SysAqua during handling, as it would be damaged irreversibly.
Caution
Never move the SysAqua on rollers.
Caution
Never submit the metal work (panels, posts) of the SysAqua to handling constraints, as only its base
is designed for that purpose.
Caution
X
Y
Z
0
6 SysAqua
SEE APPENDIX
5. CONTENTS OF PACKAGE
On opening the carton, check that all the accessories required for installation are present.
5.1. OPTIONALS ACCESSORIES
Anti-vibration rubber pads
Spring pads
Isolating valve
1 SysAqua
1 Water lter
1 Bag with the documentation
6. DIMENSIONS
7. HANDLING
7.1. NET WEIGHT

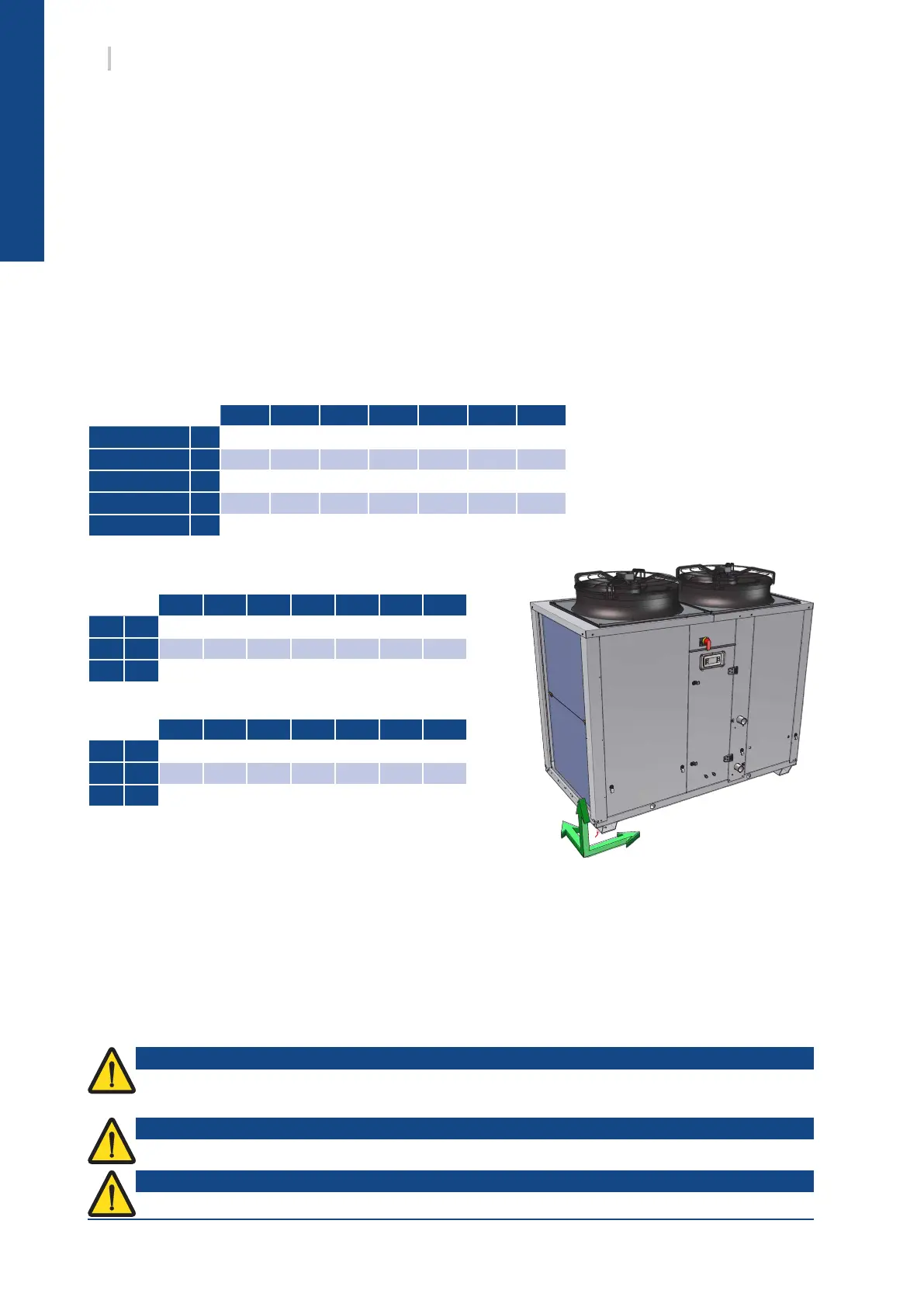

7.2. GRAVITY CENTER POSITION
The method of handling depends on the model of SysAqua and its nal destination.
² Take care to avoid any rough handling or impacts when unloading and moving the appliance.
² Before hoisting into position, test lift to insure stability and balance. Avoid twisting or uneven lifting
of the units.
² The units shall be carefully inspected before unit installation to make sure this has not happened.
² ll these sections have been inspected before leaving the factory. It is therefore important to insure
that no bolts, screws or other xing system are loosened or missing before the commissioning.
7.2.1. WITHOUT BUFFER TANK
7.2.2. WITH BUFFER TANK
45 55 65 75 90 105 125
Without pump kg
510 510 580 580 760 870 890
1 pump kg
30 30 30 30 30 30 30
2 pumps kg
60 60 60 60 60 60 60
XLN kg
40 40 40 40 40 40 40
Buffer tank Kg
160 160 160 160 160 160 160
45 55 65 75 90 105 125
X
G
mm
940 940 1 000 1 000 1 000 1 000 1 000
Y
G
mm
480 480 540 540 500 500 500
Z
G
mm
700 700 700 700 850 850 850
45 55 65 75 90 105 125
X
G
mm
1 250 1 250 1 270 1 270 1 100 1 100 1 100
Y
G
mm
480 480 500 500 450 450 450
Z
G
mm
700 700 700 700 850 850 850
7.3. MANUTENTION GENERALITES
