DHR/AR Series SALS Accessory Getting Started Guide Page 20

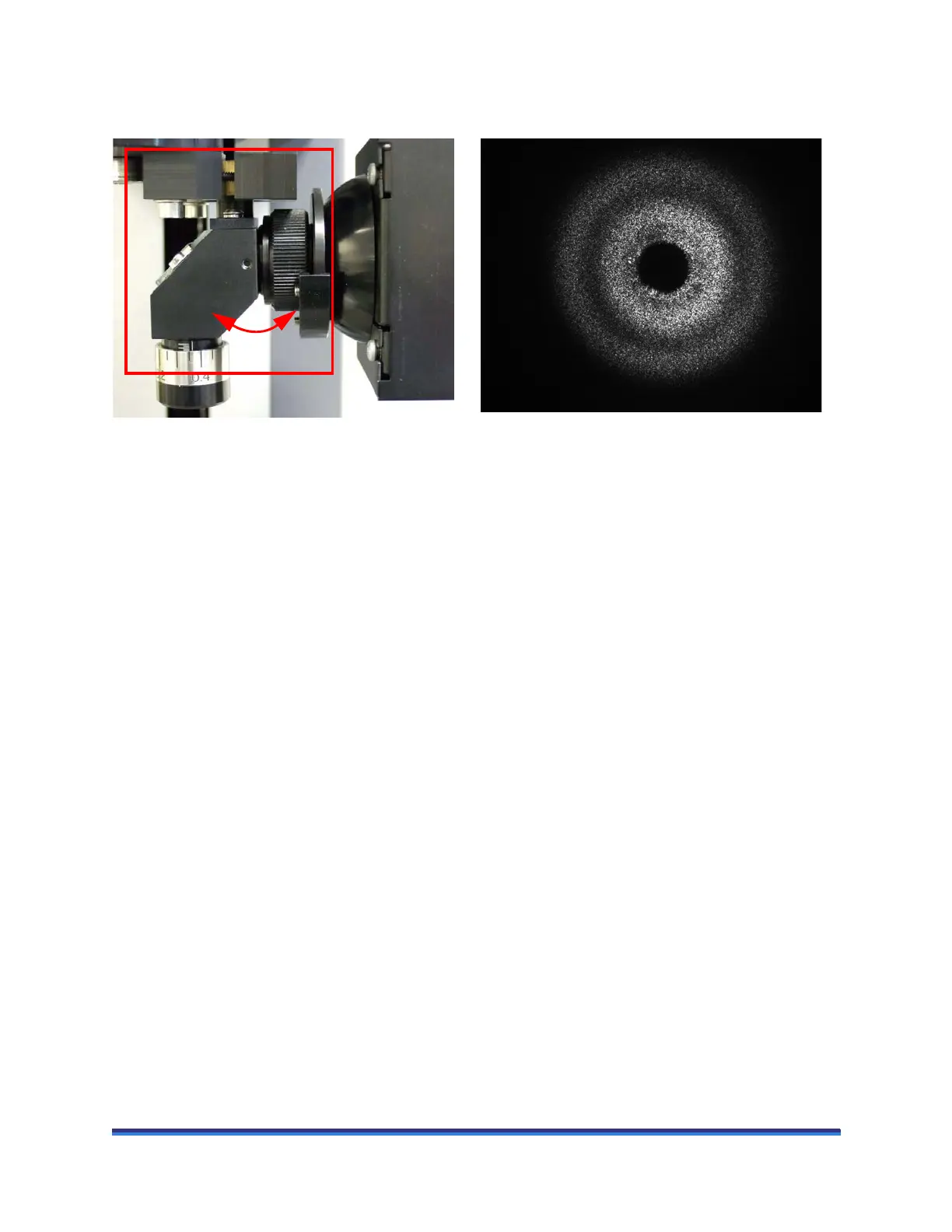

13 Adjust the body of the upper fixture in the swivel mount (see below, left) until you obtain a pattern of
concentric rings similar to those shown in the below-right image.
Figure 11 Swivel mount.
NOTE: It may be necessary to adjust the camera settings such as exposure, brightness, and contrast by
accessing the Camera properties on the camera setup screen (right-click on image). The lighting controls
are not used by this system.
14 Once you are happy with the image and the system is aligned, raise the rheometer head. The sample can
then be cleaned from the plates.
