TA I NSTRUMENTS TGA 2050 4–5
Components
The TGA 2050 has five major components,
illustrated in Figure 4.1: the balance, the sample
loading assembly, the furnace, the cabinet, and
the heat exchanger.

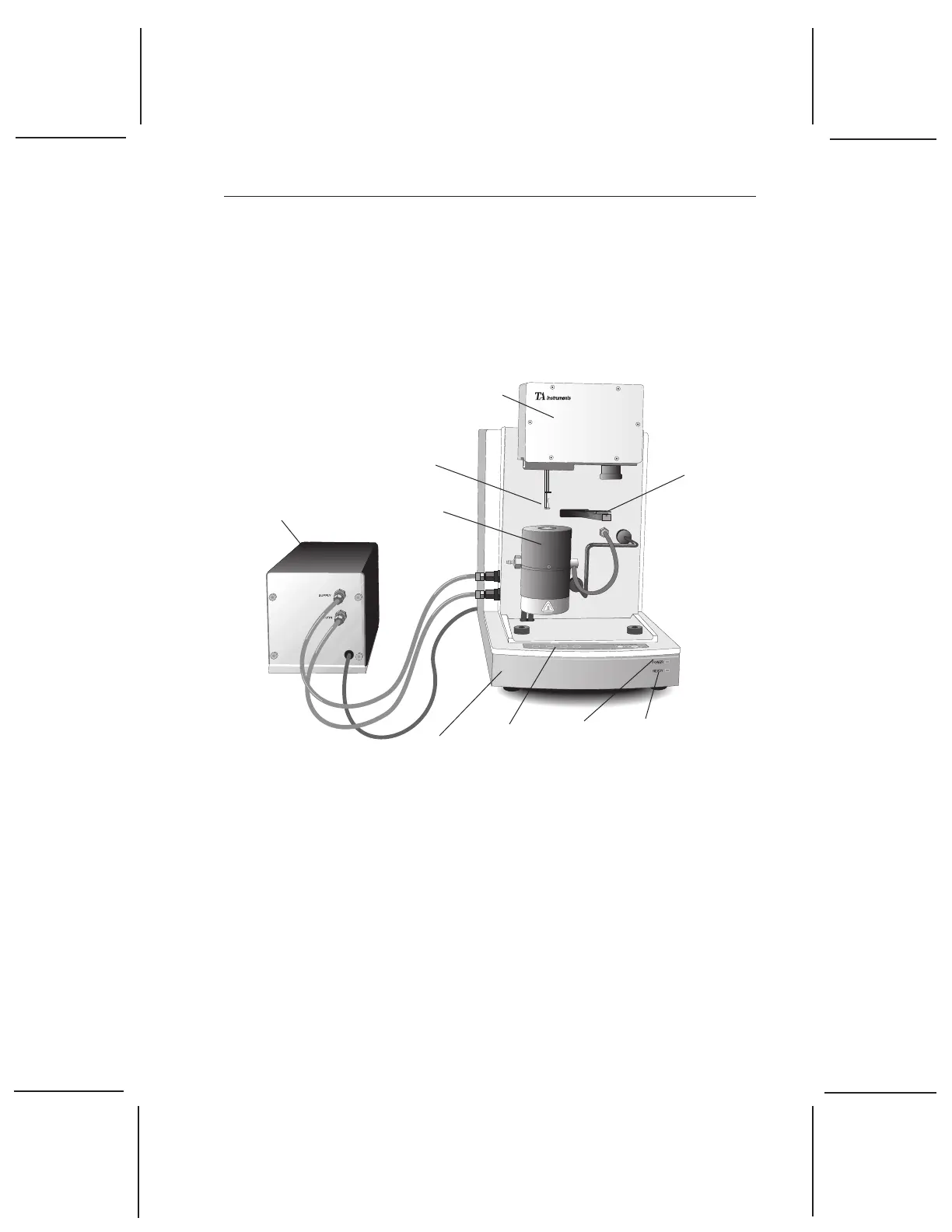

Figure 4.1
TGA 2050 Components
The balance, the most important part of the
TGA system, provides precise measurement of
the sample weight. The sample loading assem-
bly automatically loads and unloads samples
from the TGA balance. The furnace controls the
sample atmosphere and temperature. The
cabinet contains the system electronics and
mechanics. The heat exchanger dissipates heat
from the furnace.
Description of the TGA 2050
Heat
Exchanger
Balance
Chamber
Power
Light
Ready
Light
Cabinet
Thermocouple
Sample
Loading
Assembly
Furnace
Keypad
