Taarup 7640 - 9.6 Flow chart electrics

37
1
4
5
7
8
3
6
2
9.5.4 Bale counter [Bal]
Indicates the no. of bales wrapped since the
last reset. Maximum bales to be counted is
99.9999
9.5.5 Bale counter [Bal+]
Indicates the total no. og bales wrapped. Can
not be reset. Maximum bales to be counted is
99.9999. The bale counter will reset
automatically if the no. of bales exceeds 99
999.
Press key Display shows Explanation
F2 21 No. of bales since last reset
F1 21 Press F1 until the digit flashes
F3 0 Press F3 to reset the bale counter
F2 Press F2 to exit programming cycle

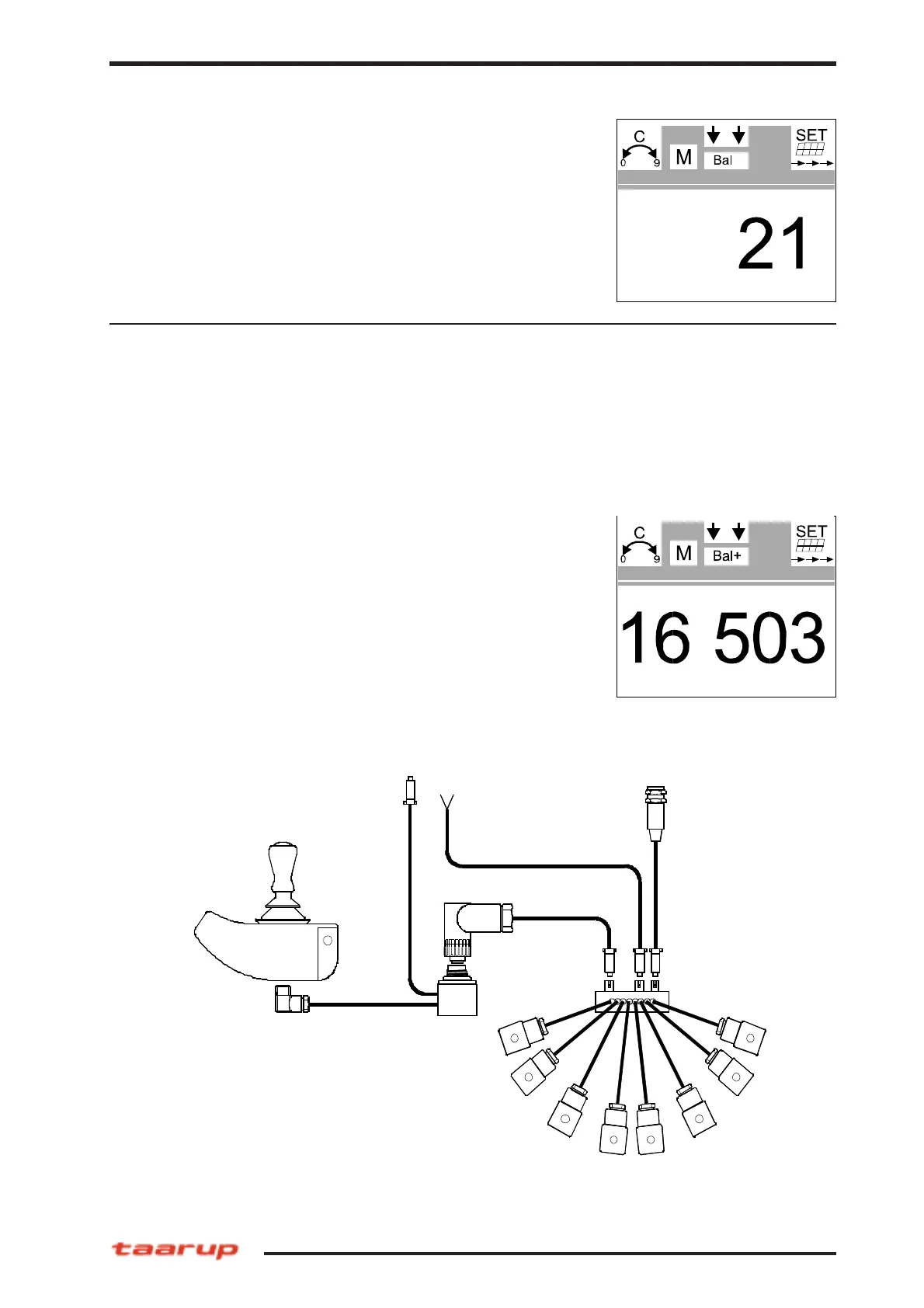

9.6 Flow chart electrics
1. Joystick (UH454440)
2. Connection box
3. Driver module
4. Cable joystick
5. Cable power supply (A-cable, UH454441)
6. Cable tractor - pakker (B-cable, UH454445)
7. Cable emergency stop (UH454444)
Operating model S
