Taarup 7640 - 9.7 Flow chart hydraulics model S

38
Operator´s manual round bale wrapper 7640
1
3
4
5a
67
5b
2

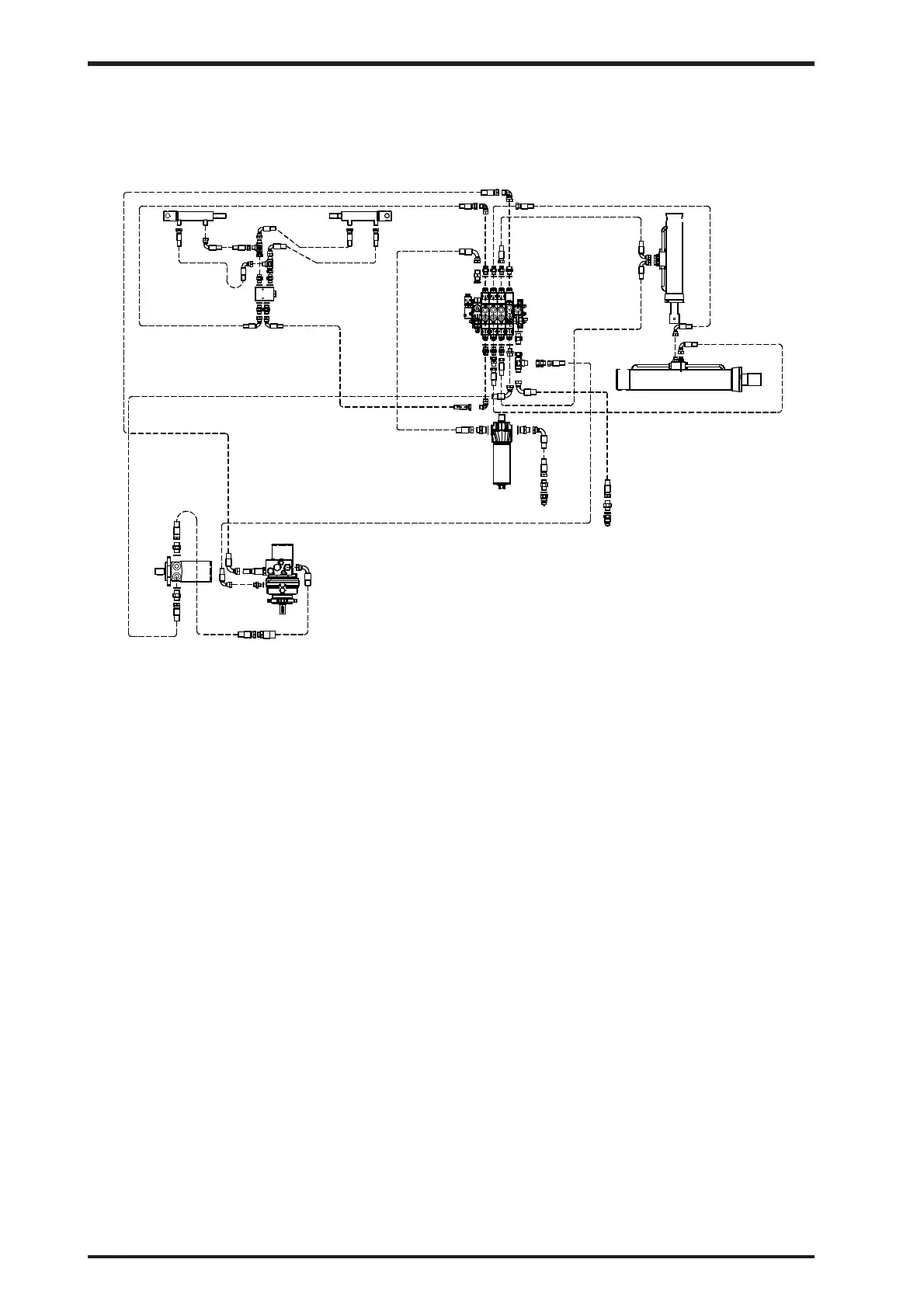

9.7 Flow chart hydraulics model S
Operating model S
1 Valve bank
2 Pressure oil filter
3 Table tilt cylinder
4 Loading arm cylinder
5 Film cutter cylinder
6 Satellite motor
7 Table motor
