Operator´s manual round bale wrapper 7640
10 Operate model C
10.1 Structure

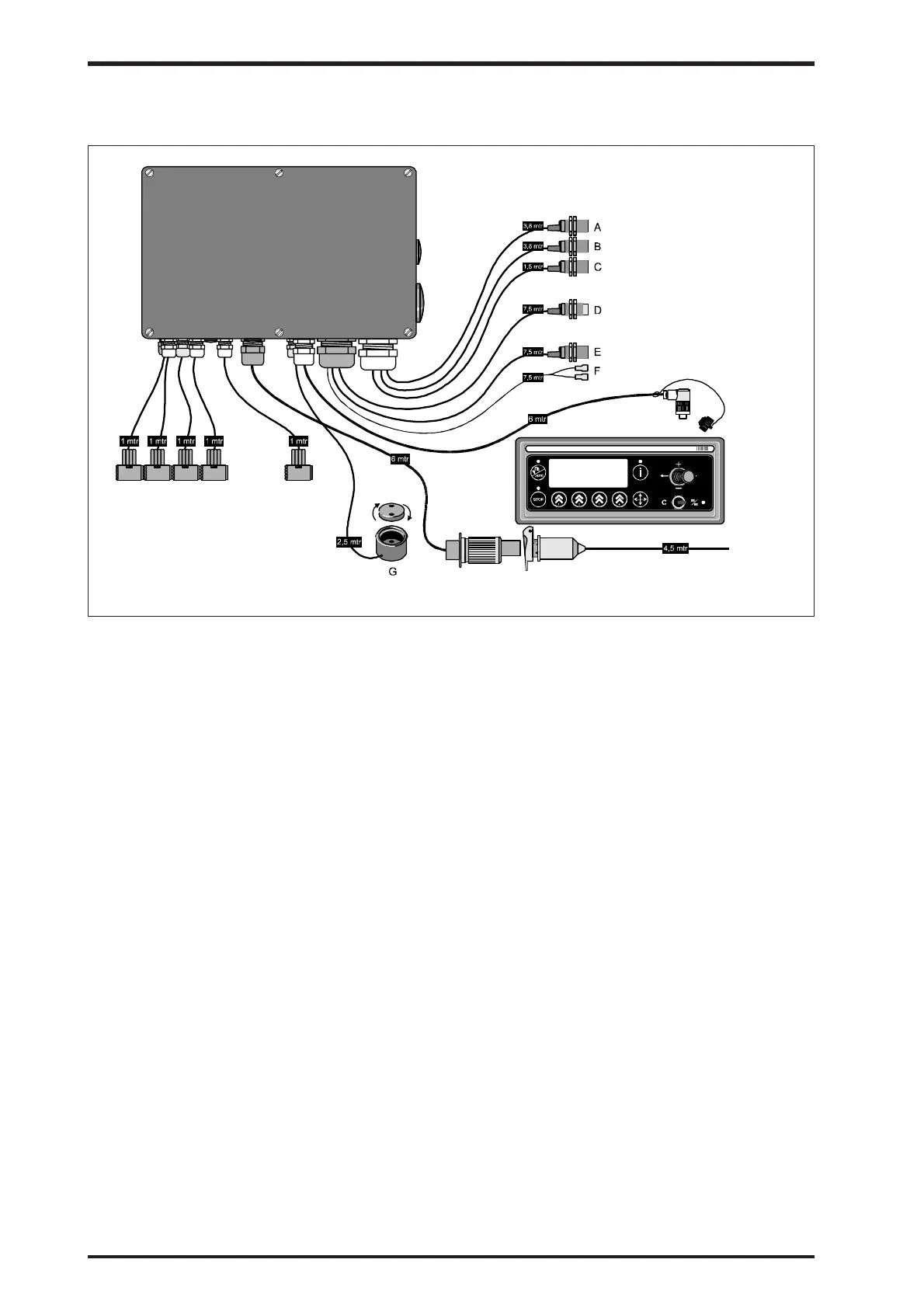

The computerised control system includes
two main components. A driver module
(black box) fitted on the wrapper and a
command panel fitted in the tractor cab.
The machine can be operated in:
- Automatic mode
- Manual mode (process continues when
operator’s approval is given by the OK
switch)
- Tool mode (by pressing manual keys and
joysticks).
When machine is checked in Tool mode the
sensors are monitoring the positions of the
machine elements, denying any illegal
function to be performed.
.
10.2 Mode of operati-
on - sensors and
valves
The program operates continuously, reading
information from inputs (sensors) and panel,
comparing information and setting outputs
(spool valves) in relation to the pre-defined
programme
