Taarup 7640 - 10.12 Flow chart hydraulics model C

65
1
8
3
4
5b
6
7
5a
9

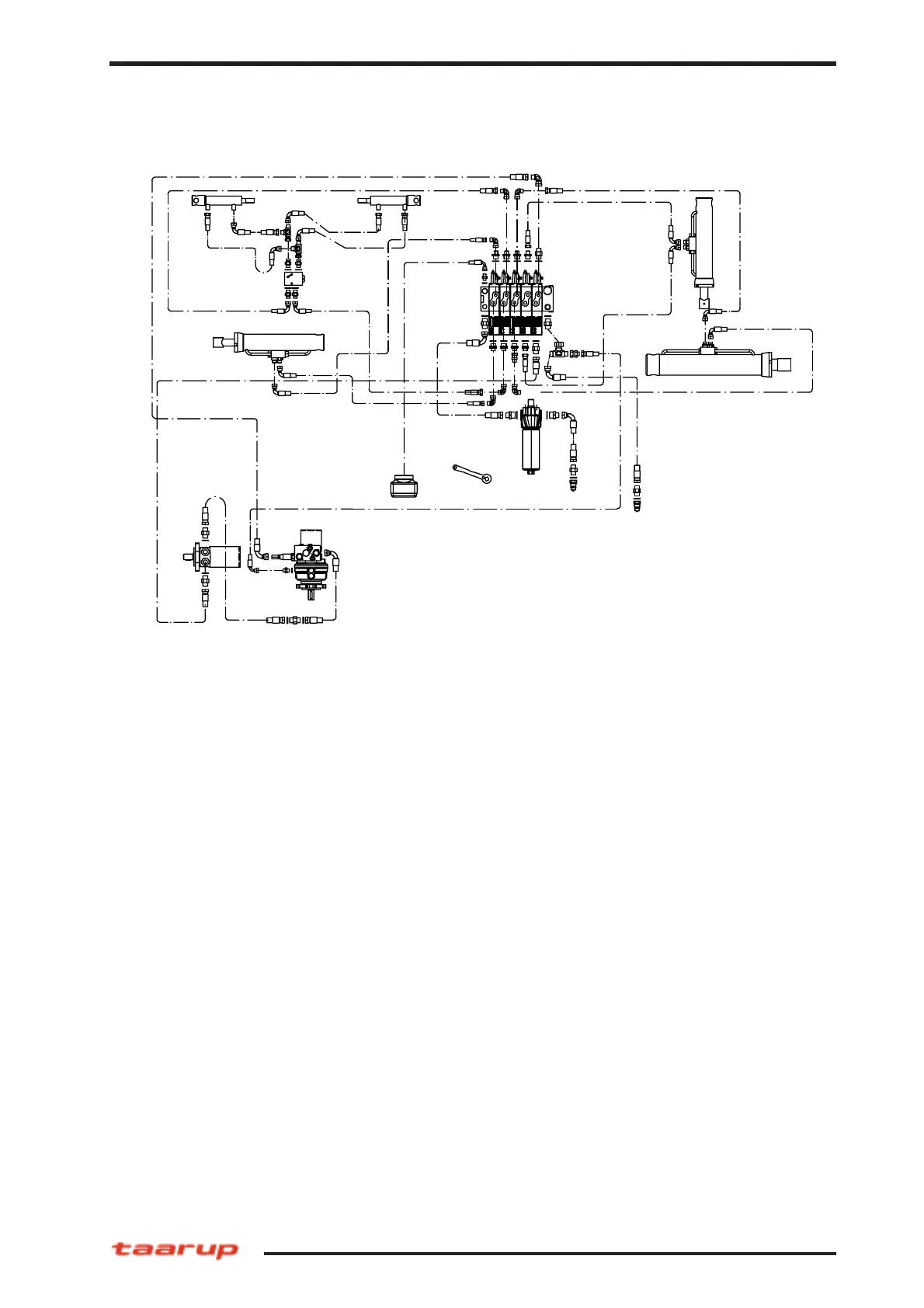

10.12Flow chart hydraulics model C
1 Valve bank
3 Table tilt cylinder
4 Loading arm cylinder
5a,b Film cutter cylinders
6 Satellite motor
7 Table motor
8 Backpressure oil container
9 Oil filter
Operating model C
