6. Screw the external options connector to the radio lid using the two
screw-lock fasteners
h
.
Tighten the fasteners
to a torque of 0.9N·m (8lbf·in).
Important The external options connector screw-lock fasteners must
be tightened correctly before screwing the line-interface
board onto the mounting posts
i
.
7. Screw the line-interface board to the mounting posts on the radio lid
using six M3x8 self-tapping screws
j
.
Tighten the M3x8 screws to a torque of 1.9N·m (17lbf·in)
8. Plug the unattached end of internal options connector loom
1)
into
the internal options connector on the radio main PCB.
9. Refit the radio lid and top cover to the radio and screw the external
options cover seal
1!
over the external options connector, using the
two 4-40x3/16 screws
1@
.

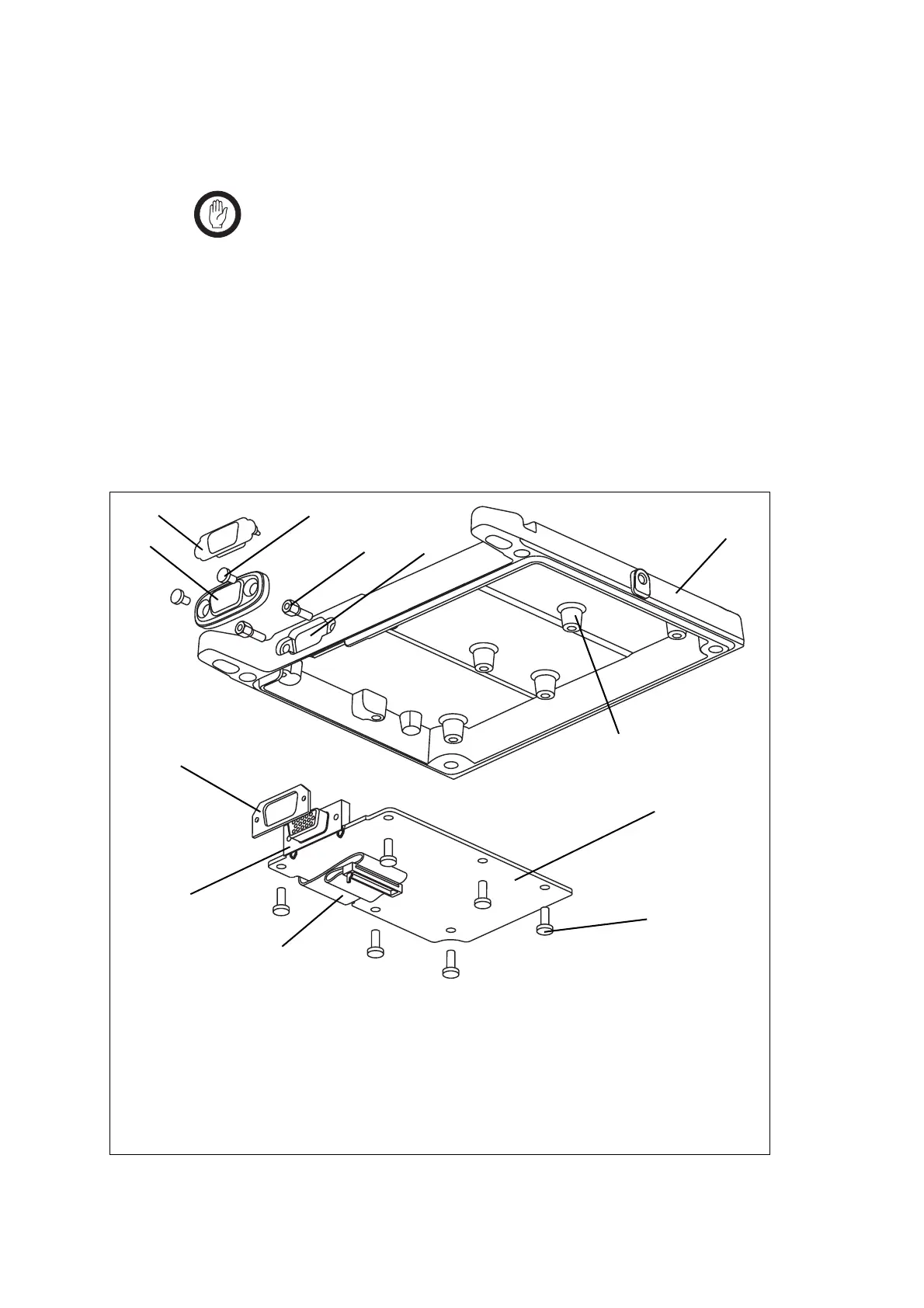

Figure 2.2 Installing the line-interface board
b
radio lid
h
screw-lock fasteners
c
external options connector bung
i
mounting posts
d
foam seal
j
M3x8 self-tapping screws
e
external options connector cavity
1)
internal options loom
f
line-interface board
1!
external options cover seal
g
external options connector
1@
4-40x3/16 screws
b
c
e
h
i
1@
1!
j
1)
d
f
g
