68 TMAA10-03 High-Power Remote Speaker TM8000 Mobile Radio Accessories Manual
March 2004 © Tait Electronics Limited
8.1.2 Power Connector Wiring
Insert the remote speaker receptacles into the TM8100 power connector
socket, as shown in the diagram below.
Note The positive remote speaker wire has a white stripe and must
be inserted into the position on the power connector nearest
the red wire.
.

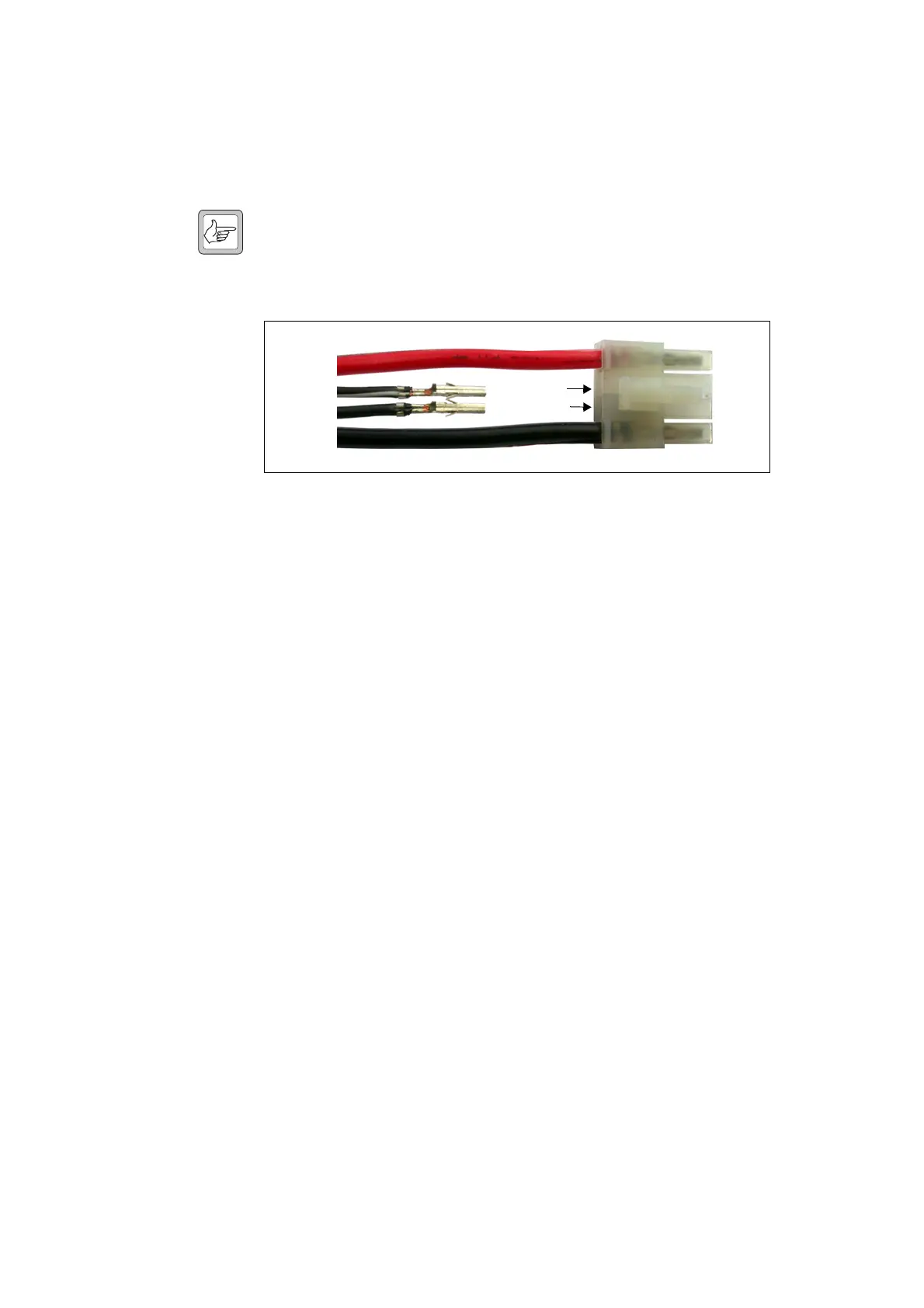

Figure 8.1 Power connector wiring
power
connector
remote
speaker cable
speaker positive
speaker negative
+13.8V
(red)
ground
(black)
