7 TMAA10-02 Handset
The TMAA10-02 handset provides the user with privacy and also
improves the audio quality in noisy environments. The handset
uses a dynamic microphone capsule, so the TMAA02-06 support
kit for dynamic microphones must also be installed and configured
for dynamic microphone operation.
When your radio receives a call and the handset is mounted in
its locking cradle, the radio unmutes and you can hear the call
from your radio’s internal speaker and from any connected
remote speaker.
If you remove the handset from its cradle when you receive a call,
the radio unmutes and you can hear the call from your radio’s
internal speaker, from any connected remote speaker and from the
handset earpiece.
Using private handset mode, the radios internal and external speakers
are muted and the call can only be heard from the handset earpiece.
7.1 Installation
7.1.1 Installing the TMAA02-06 Dynamic Microphone Support Kit
Refer to Section 5 “TMAA02-06 Support Kit for Concealed & Dynamic
Microphones” for installation details.
7.1.2 Handset Wiring
1. Drill a hole in the chosen mounting surface for the radio to handset
cord and pass the cord through the hole.
2. Prepare the radio to handset cord, as follows.
■ Cut the radio to handset cord to the required length.
■ Strip away about 60mm (2 inches) of the cable outer sheath on the
end without a connector.
■ Cut off the exposed orange, red and grey wires.
■ Strip about 6mm (0.2 inches) of the coating off each of the five
remaining wires.
3. Secure the radio to handset cord in the handset PCB P-clip
b
, as
shown in the diagram on the following page.

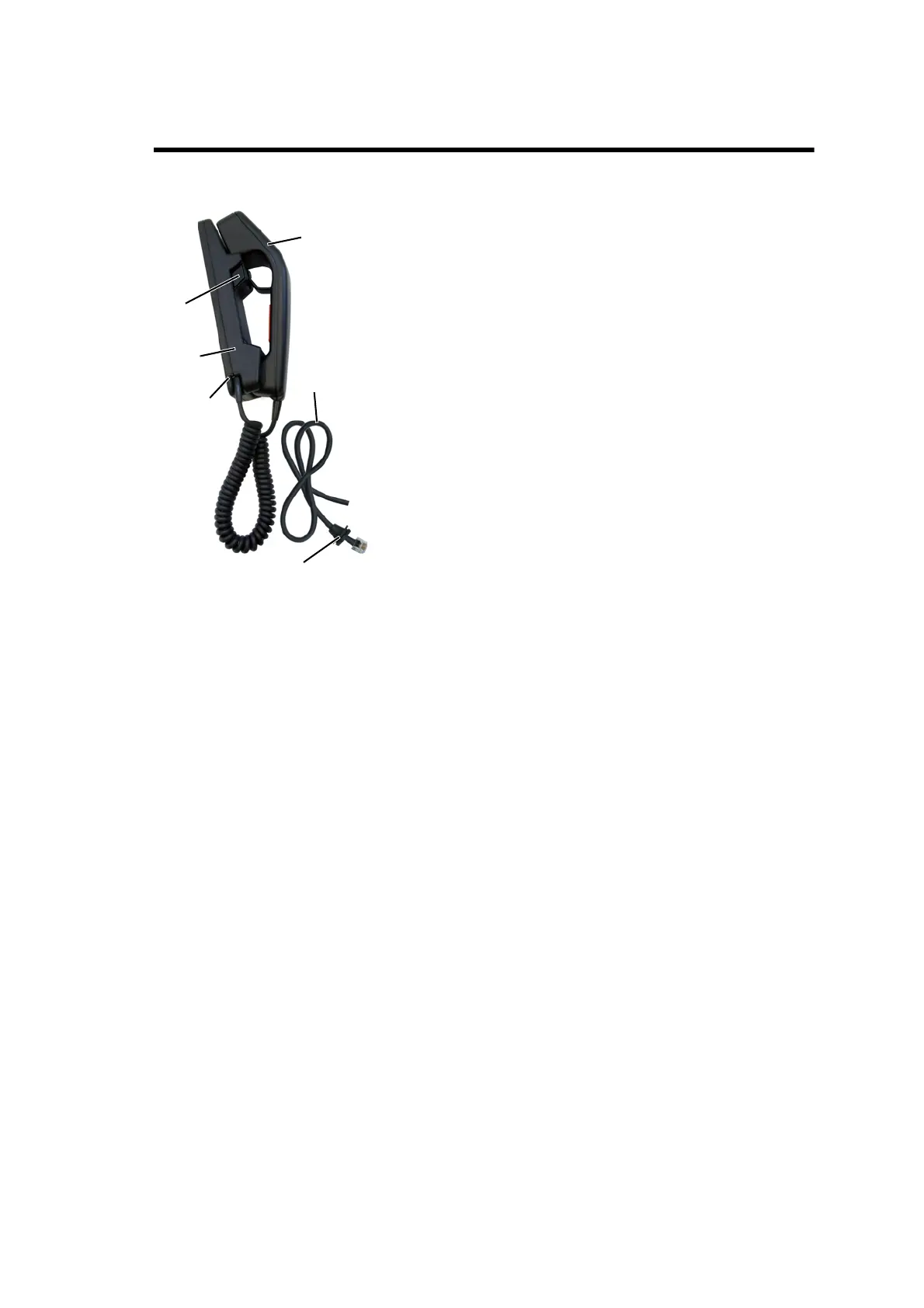

locking
cradle
push-
button
handset
grommet
radio to
handset cord
mounting
plate
