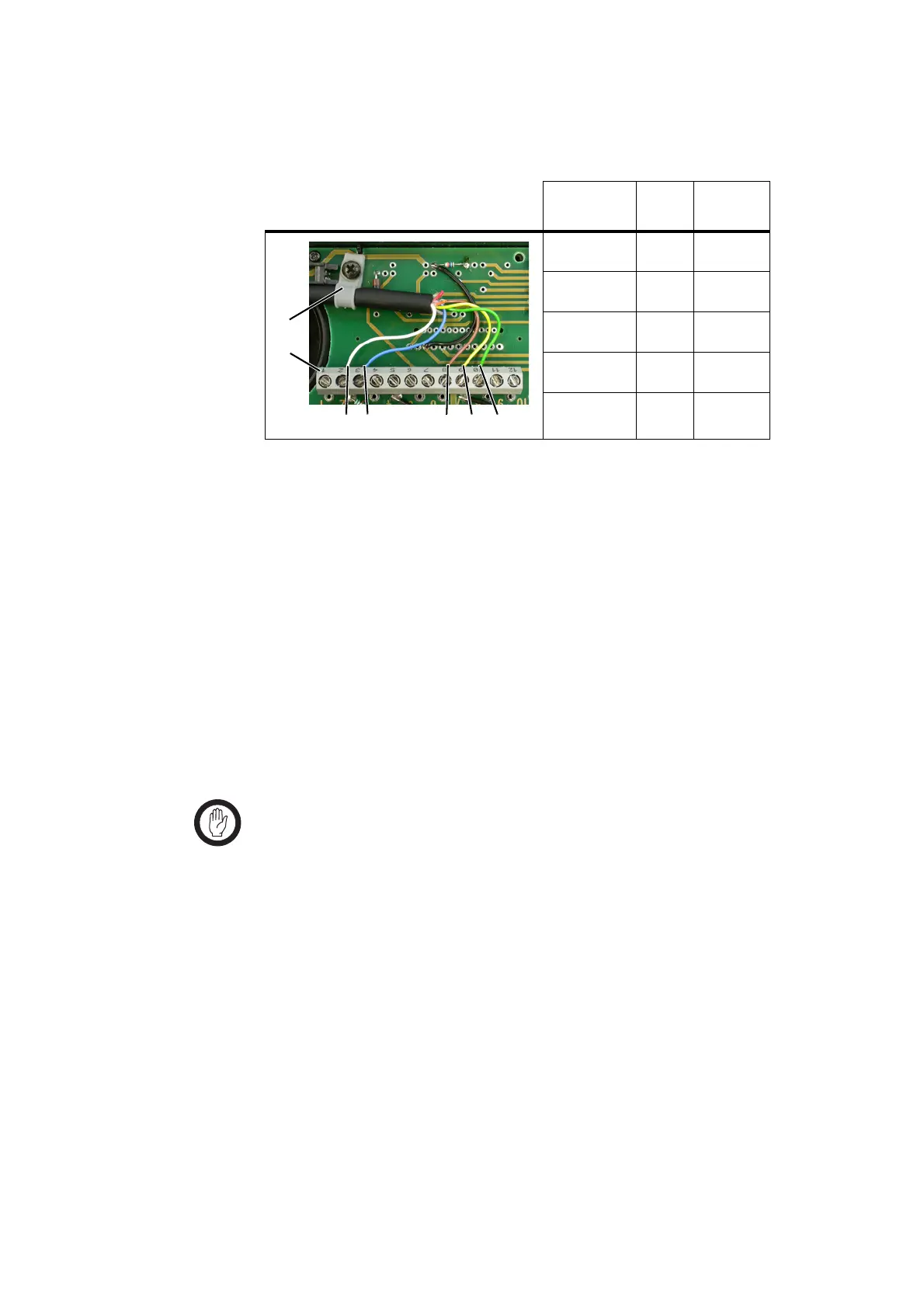

4. Connect the five wires to the handset PCB connector
c
.
7.1.3 Handset Installation
1. Press the pushbutton and remove the handset from the locking cradle.
2. Disassemble the locking cradle by removing the four locking cradle
screws.
3. Screw the handset mounting plate to the required mounting surface.
Note that mounting screws are not provided in this kit.
4. Clamp the top part of the locking cradle onto the mounting plate,
and secure it with the four locking cradle screws.
7.1.4 Connecting the Handset to the Radio
Important The handset microphone grommet must be installed when-
ever the handset to radio cord is plugged into the microphone
socket. When installed, the grommet has two functions:
■ to prevent damage to the microphone socket when there
is movement of the microphone cord, and
■ to ensure that the control head is sealed against water,
dust and other environmental hazards.
1. Plug the radio to microphone cord into the microphone socket on
the radio control head.
2. Slide the grommet along the cord and push two adjacent corners of the
grommet into the microphone socket cavity.
3. Squeeze the grommet and push the remaining corners into position.
4. Check that the grommet is seated correctly in the cavity.
Table 7.1 Handset PCB connector wiring
Handset PCB
Connector
Colour Reference
2white
d
3blue
e
8brown
f
9 yellow
g
10 green
h
b
c
de
f g h
