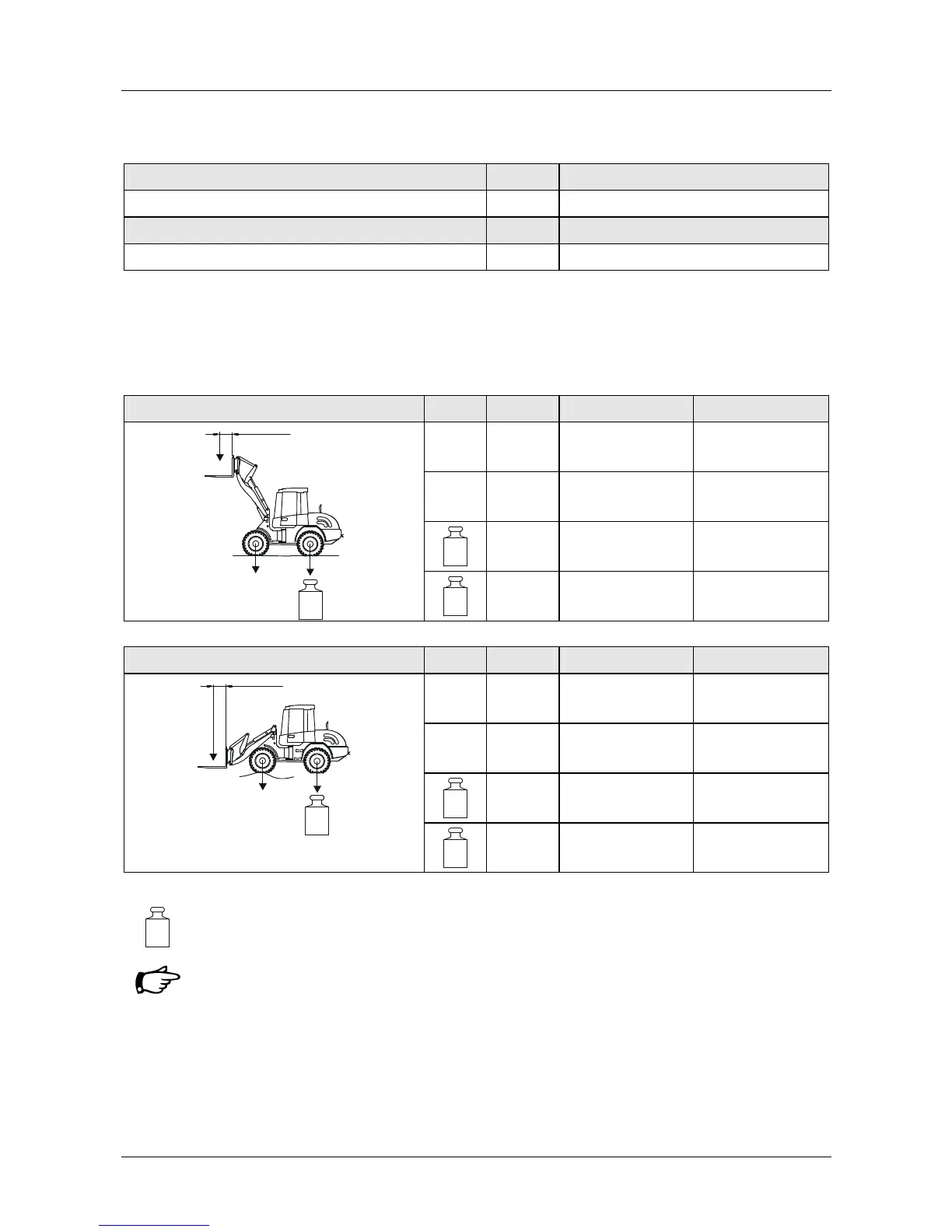

3.15 Fork lift attachment
Fork-arm connection in compliance with ISO/FEM Class 2 Form B, DIN 15 173 / ISO 2328 respectively
Width of fork carrier mm 1,240
Length of forks mm 1,100
Fork cross section mm 100x45
Max. stacking height mm 3,070
The payloads are determined in compliance with DIN 24094 / ISO 14397-1 and EN ISO 474-3 respectively
with a safety factor of 1.25 or 80% of the tipping load and the machine moving over level ground.
The payloads in crane operation are determined with load hooks on the forks, at a 500 mm load radius from
the rear of the fork, according to ISO 14397-1 with a stability factor of 2.0 / 50% of the tipping load.
The payloads are valid for a machine fitted with 12.5-20MPT 10PR tires and in a condition in compliance with
ISO 6016.
Total lift range
S=2.0 S=1.25
kg
1,250
2,050
lbs
2,750 4,400
kg
lbs
kg
1,380
2,250
500mm
19,7inch
+0,5bar
+7,3psi
+
kg
lbs
kg
lbs
lbs
3,030 4,840
Transport position
S=1.67 S=1.25
kg 1,720 2,300
lbs 3,790 5,060
kg
lbs
kg 1,870 2,500
500mm
19,7inch
+0,5bar
+7,3psi
+
kg
lbs
kg
lbs
lbs 4,120 5,500
kg
lbs
If screw-on rear axle weights or rear tires with hydroinflation are used.
During fork lift operations, the tire pressure of the front wheels must be increased by at least
0.5 bar.
