6 Recovery and transport of the machine
62 TW9
6.2 Loading the machine using a crane
Use a crane lifting harness and a crane
with adequate lifting capacity!
Take note of the total machine weight!
Only use approved and undamaged
sling gear.
• Do not pull sling gear over sharp
edges.
To load the machine by use of a crane, the
following preparations are required:
• Empty the bucket and tip back.
• Move the lift frame to travel position.
• Apply the pin of the articulation lock (29/1).
• Stop the engine.
• Dismount from the machine and close the
doors.
• Attach the loader to the hoisting appliance at
the specified, marked points (fig. 29) in the
correct manner.
6.3 Transporting the machine
To transport the machine onto a flat bed trailer,
railway goods wagon, etc. the following measures
must be taken:
• Empty the bucket and tilt back.
• Drive the machine onto the flat bed trailer,
goods wagon, etc., or lift by crane if required.
• Replace the articulation lock (30/1).
• Lower the work attachment onto the ground.
• Stop the engine.
• Dismount from the machine and close the
doors.
• Attach the excavator to the points illustrated
(fig. 30) in the correct manner.
Be aware of the total transport height.
Risk of accident when driving in
tunnels, under bridges, etc.!
Transport dimensions see chap. 3
Technical data.

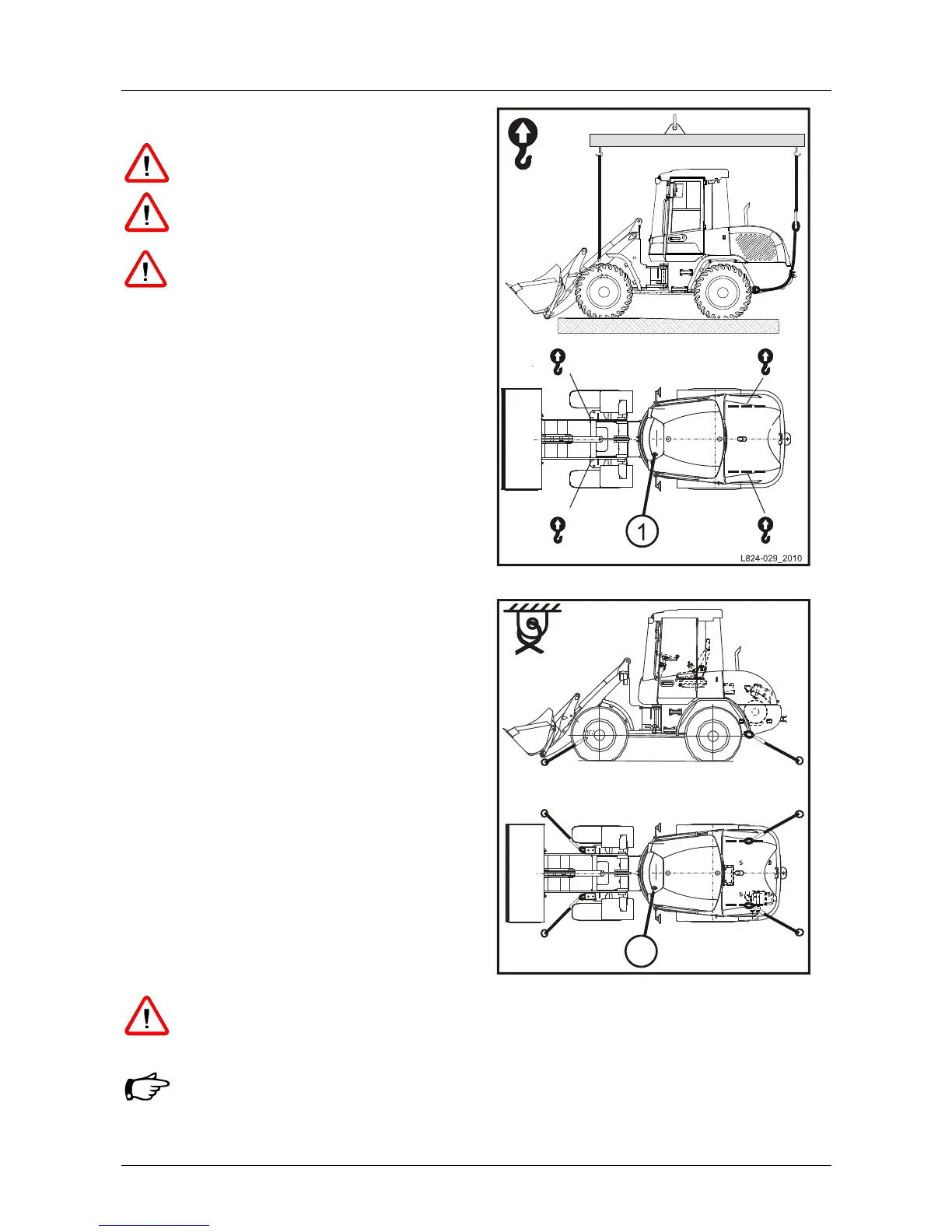

Fig. 29 Loading the machine using a crane
L824-030
1
Fig. 30 Lashing for transport
