4 Operation

44 TW9

4.4 Driver's seat / Steering wheel tilt adjustment

Driver's seat

The comfort seat is spring-mounted with oil-

pressure operated shock absorbers and lap belt.

The seat meets international quality and safety

standards in compliance with ISO 7096 and ISO

6683 (fig. 13).

1. Horizontal adjustment

2. Weight adjustment

3. Seat back adjustment

4. Vertical adjustment

Raising seat:

Raise seat until it clicks audibly into place.

Lowering seat:

Raise seat as far as the stop; the seat then

sinks to its lowest position.

Tilt adjustment of steering wheel

• Push down lever (14/4)

• Adjust steering-wheel tilt.

• Release lever.

Steering wheel height adjustment

• Push up lever (14/4).

• Adjust steering-wheel height.

• Release lever.

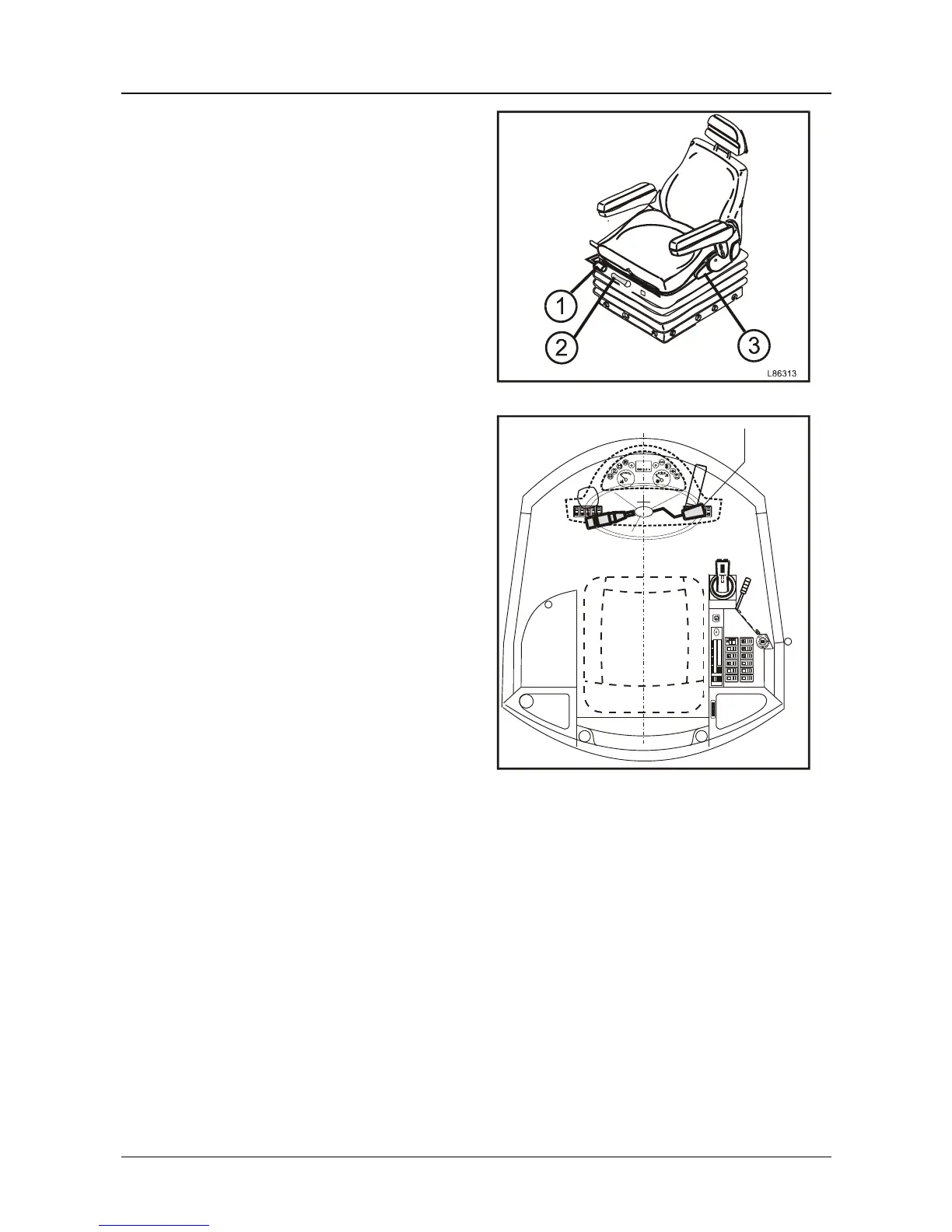

Fig. 13 Operator’s seat

L824-014

Fig. 14 Operation
