5 Working Operation of the machine
5.1 General notes
Daily before start of operation and after
every attachment change, check the
correct fastening of the work attachments
as well as the correct locking of the
quick-mount hitch.
The bucket is to be carefully moved at
low height.
• Before commencing loading work, memorize
the lever controls well.
• During loading operations, driving and work
movements should flow in smooth succession.
• Drive slowly when familiarizing yourself with the
controls.

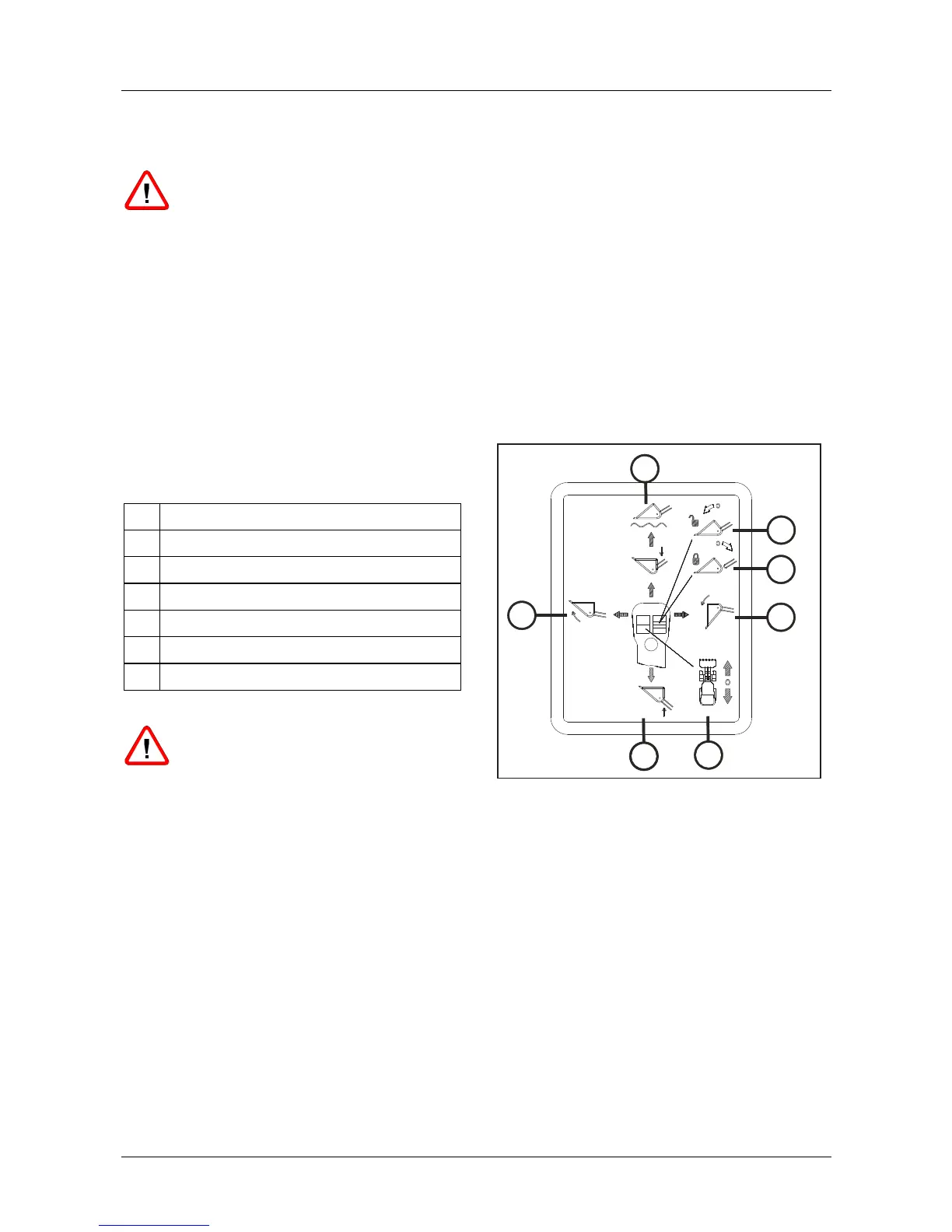

5.1.1 Lever controls
1 Lowers the lifting frame, float position
2 Opens
3 Closes
4 Dumps
5 Travels forwards and backwards
6 Lifts lifting installation
7 Tilts back
* For grading work, only tilt the joystick
half way, because if it is tilted all the way
the "regeneration" function takes effect.
L1002_Hebelst
2
3
4
5
6
7
1
Fig. – Lever controls
