Tally Dascom DL-830 User Guide V1.0
9

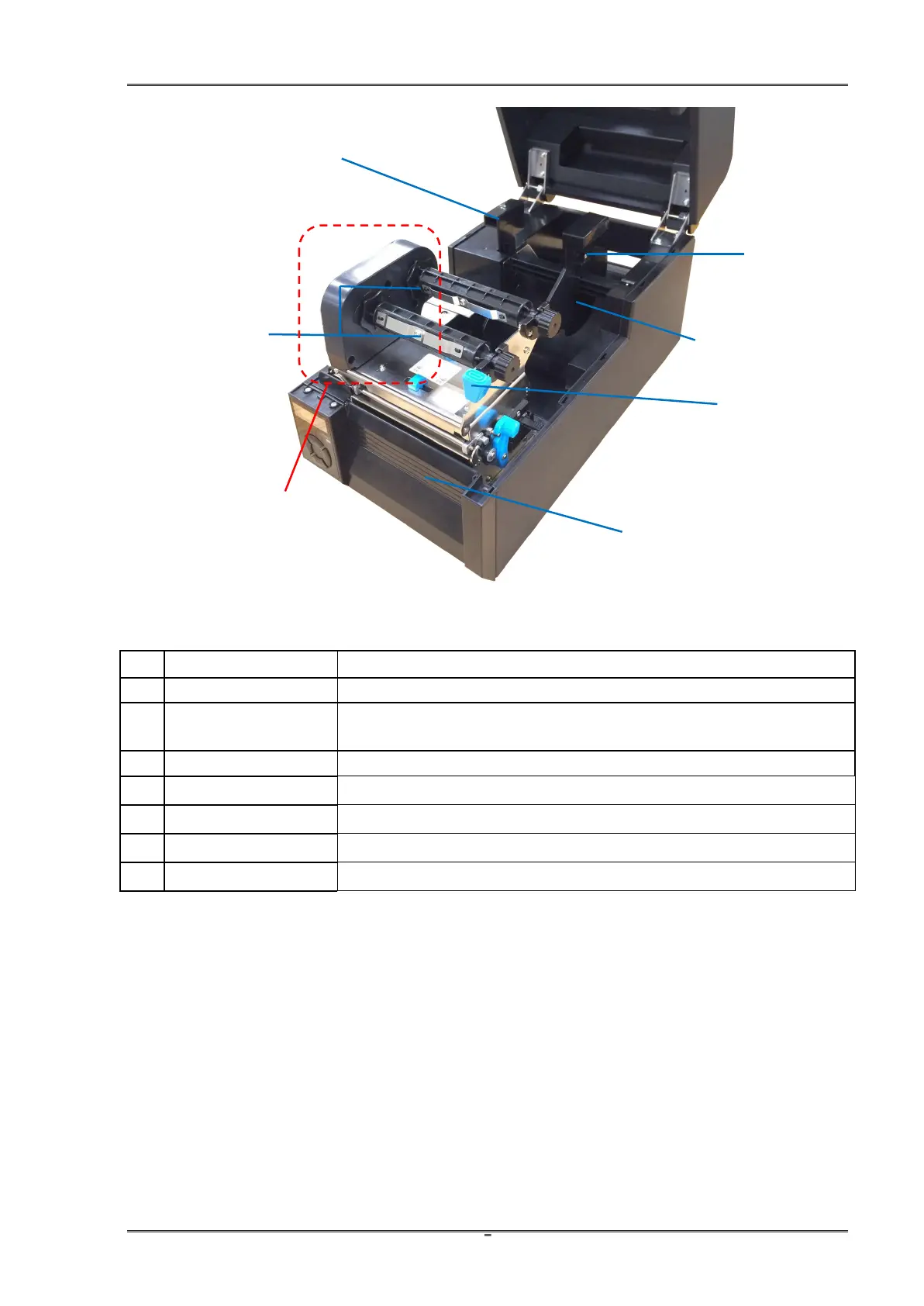

No.
Part Names
Descriptions
1
Media Holder
With the Media Width Adjuster, they hold the media roll in position.
2
Media Width Adjuster
Adjust it along the shaft of the Media Holder to match the width of the
media.
3
Media Compartment
Generous space for media roll.
4
Ribbon Spindles
One to supply and the other to rewind the ribbon.
5
Ribbon Drive Module
The mechanism to supply and rewind the ribbon.
6
Engage Handle
Press it to latch the print head/ribbon module in place.
7
Front Cover
To be removed if optional cutter or label peeler is installed.
2
6
7
4
1
5
3
