Tally Dascom DL-830 User Guide V1.0
10
No.

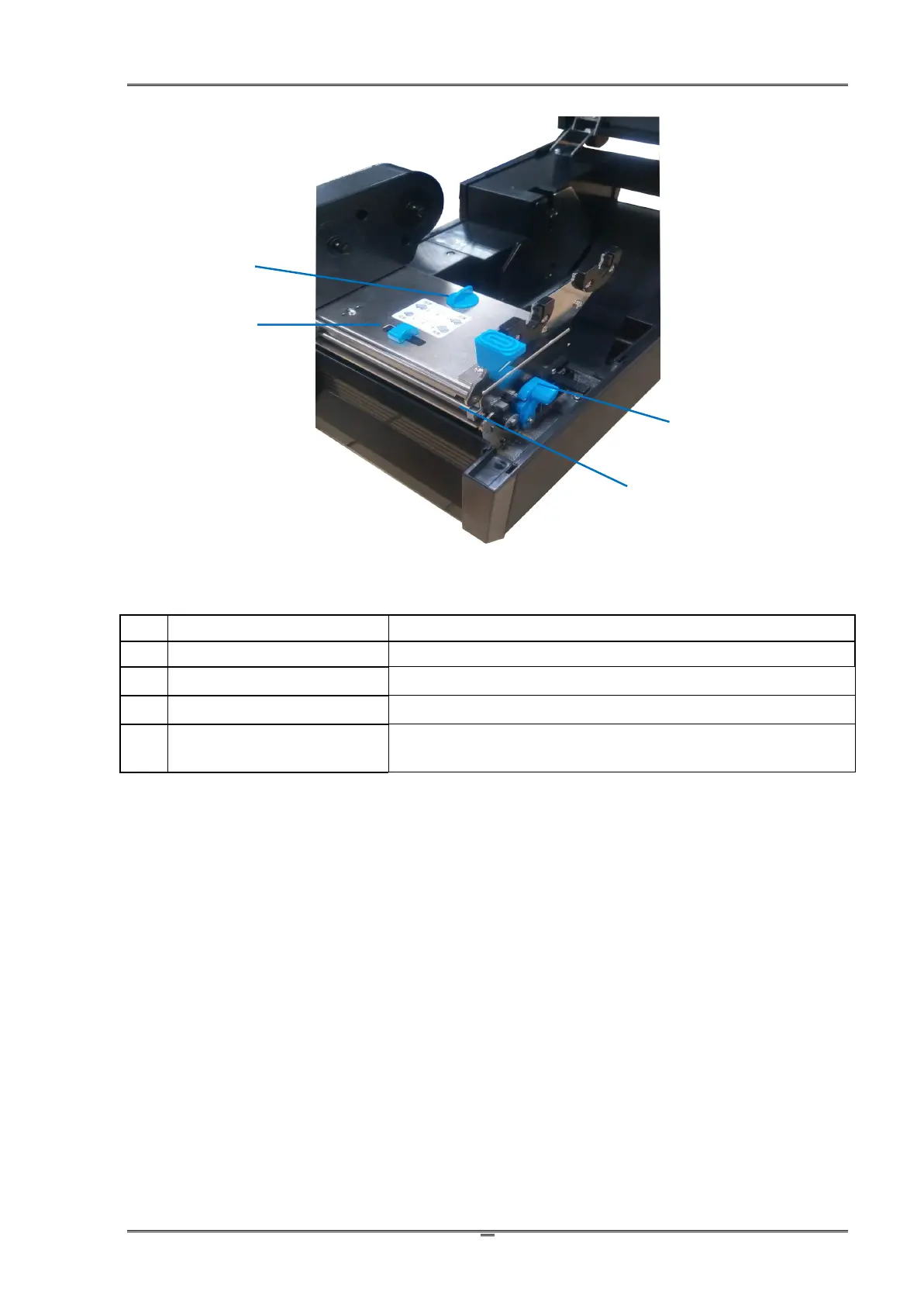

Part Names
Descriptions
1
Media Thickness Dial
Turn it to match with the media thickness
2
Media Width Slider
Slide it to match with the media width.
3
Release Lever
Push it to release the print head/ribbon module.
4
Ribbon Balance Gear
Turn it to balance the ribbon tensions to correct wrinkled ribbon
on the winding side.
