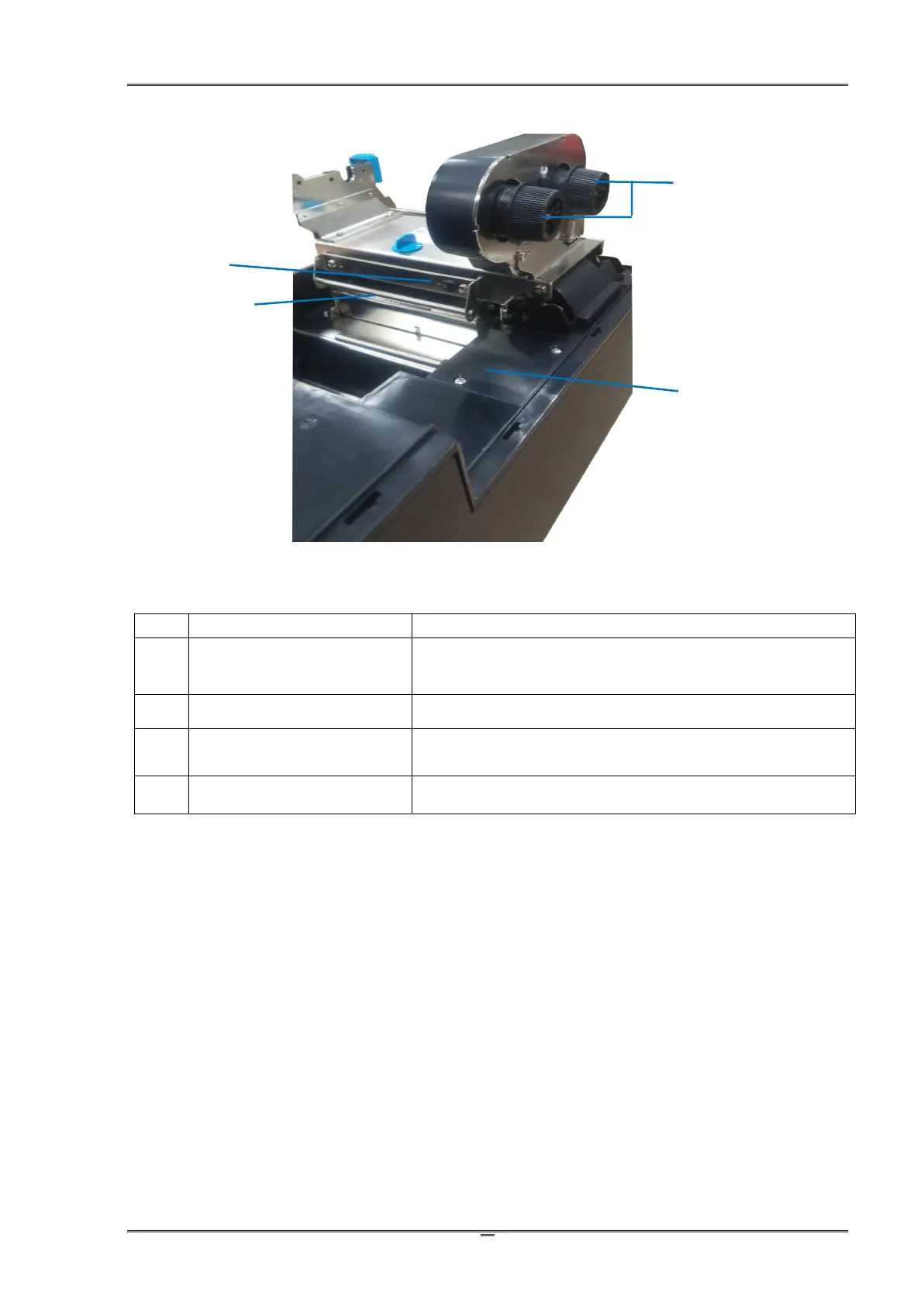

Part Names
Descriptions
1
Ribbon Supply Leveler
It corrects ribbon wrinkle on the supply side by changing
the tilted angle of the ribbon guide to balance the ribbon
left/right tension.
2
Ribbon Guide Shaft
A routing pole for ribbon winding.
3
Ribbon Knobs
Turn the knobs to tighten up the ribbon on loading or
wrinkled.
4
Option Cover
Open this cover to plug in the connectors for optional cutter
or label peeler. Keep it closed if no options installed.
1
3
4
2
