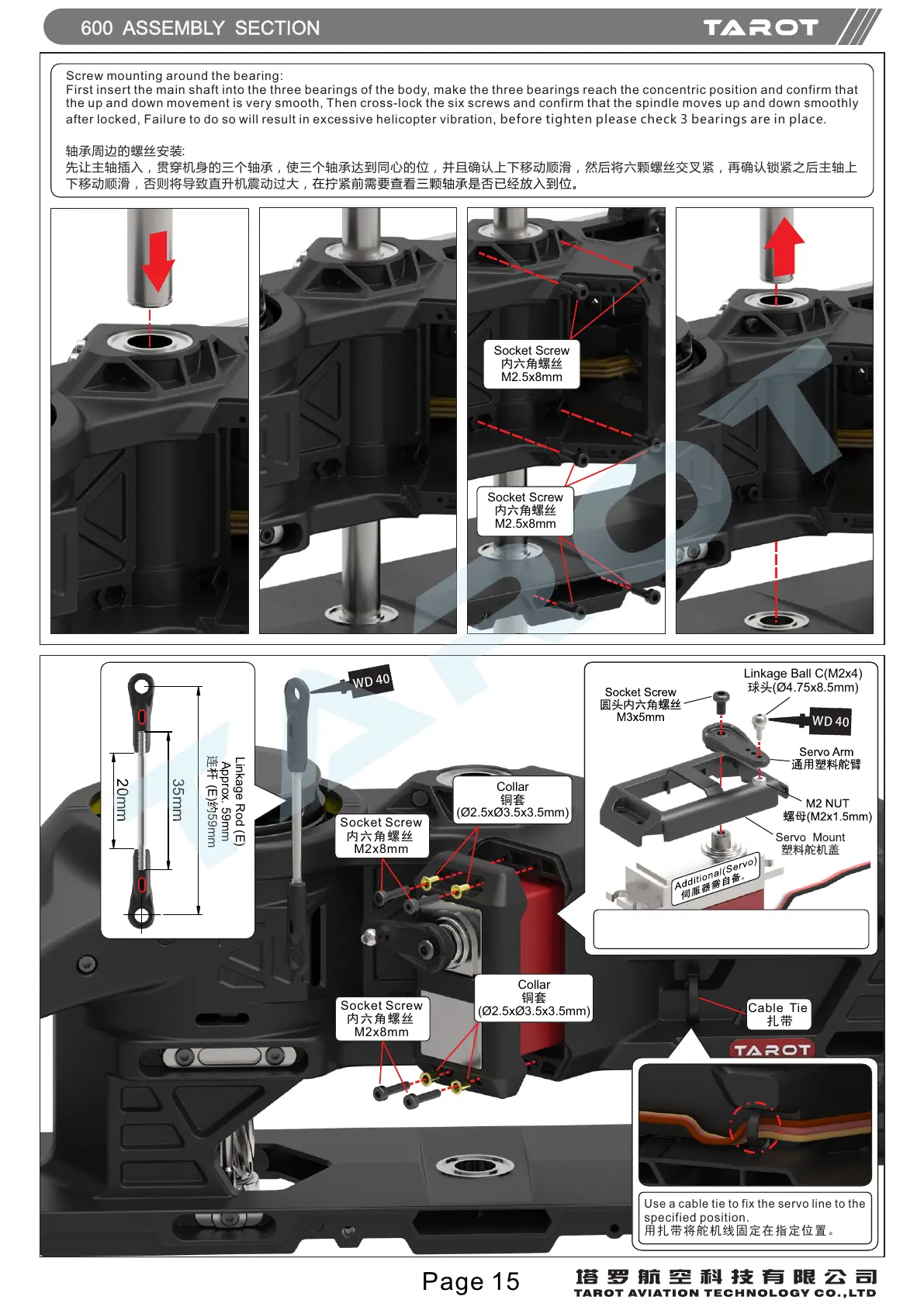

Tarot 600 - MAIN SHAFT, BEARING, AND LINKAGE ASSEMBLY

Socket Screw
内六角螺丝
M2.5x8mm
Screw mounting around the bearing:
First insert the main shaft into the three bearings of the body, make the three bearings reach the concentric position and confirm that
the up and down movement is very smooth, Then cross-lock the six screws and confirm that the spindle moves up and down smoothly
after locked, Failure to do so will result in excessive helicopter vibration, before tighten please check 3 bearings are in place.
轴承周边的螺丝安装:
先让主轴插入，贯穿机身的三个轴承，使三个轴承达到同心的位，并且确认上下移动顺滑，然后将六颗螺丝交叉紧，再确认锁紧之后主轴上
下移动顺滑，否则将导致直升机震动过大，在拧紧前需要查看三颗轴承是否已经放入到位。
600 ASSEMBLY SECTION
Socket Screw
内六角螺丝
M2.5x8mm
Page 15
Collar
铜套
(Ø2.5xØ3.5x3.5mm)
Collar
铜套
(Ø2.5xØ3.5x3.5mm)
Use a cable tie to fix the servo line to the
specified position.
用扎 带将舵机 线固定在 指定位置 。
35mm
20mm
Linkage Rod (E)
Approx. 59mm
连杆 (E)约59mm
Socket Screw
内六 角螺丝
M2x8mm
Socket Screw
内六 角螺丝
M2x8mm
Cable Tie
扎带
Linkage Ball C(M2x4)
球头(Ø4.75x8.5mm)
WD40
WD40
K T S : S815
TAROT: S2115( Recommend use/建议 使用)
