Tarot 600 - ELEVATOR LINKAGE AND MAIN SHAFT INSTALLATION; WASHER AND SCREW INSTALLATION

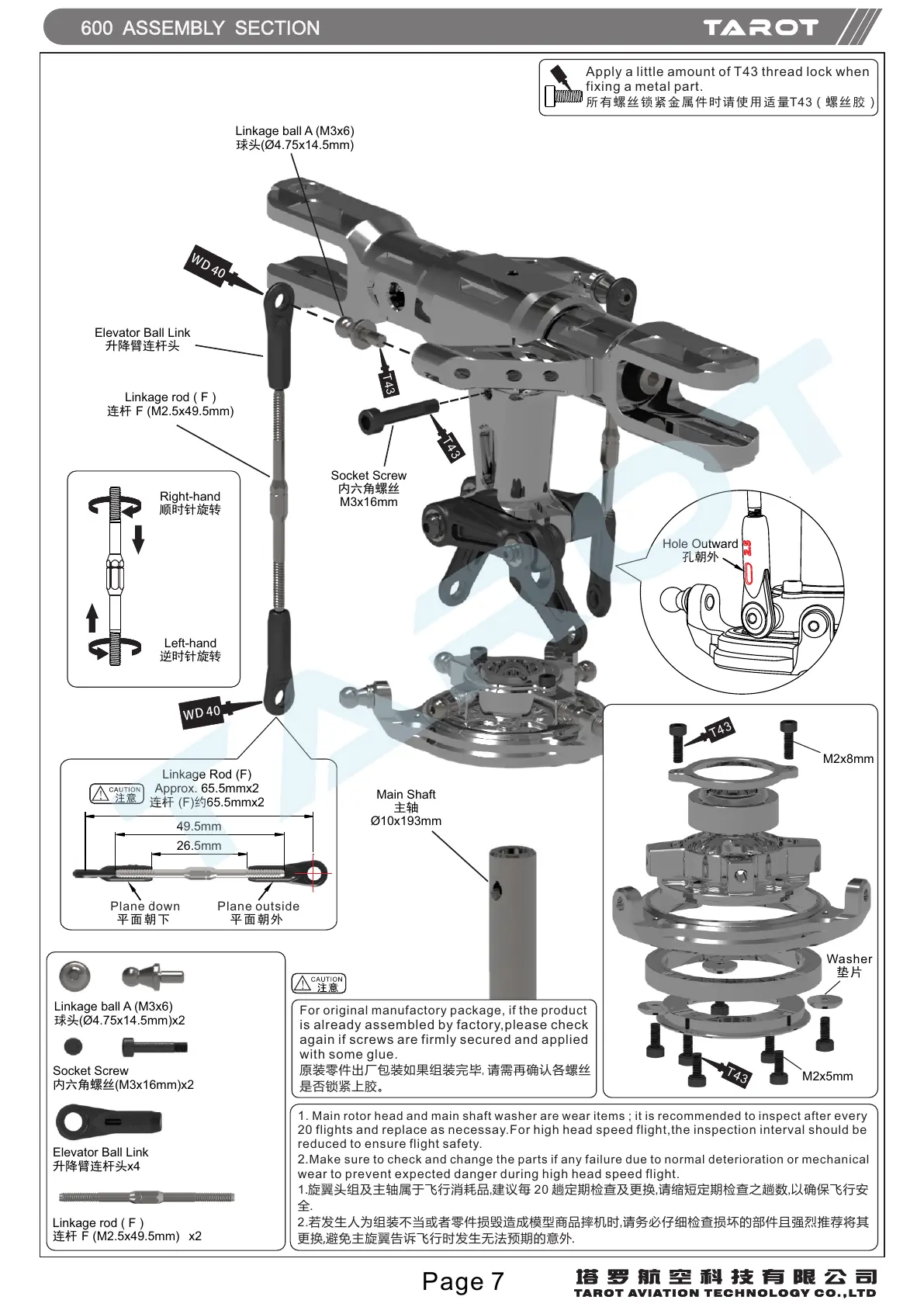

600 ASSEMBLY SECTION
Page 7
600 ASSEMBLY SECTION
49.5mm
26.5mm
Linkage Rod (F)
Approx. 65.5mmx2
连杆 (F)约65.5mmx2
Socket Screw
内六角螺丝
M3x16mm
Main Shaft
主轴
Ø10x193mm
Elevator Ball Link
升降臂连杆头
Right-hand
顺时针旋转
Left-hand
逆时针旋转
Linkage ball A (M3x6)
球头(Ø4.75x14.5mm)
T
4
3
T
43
For original manufactory package, if the product
is already assembled by factory,please check
again if screws are firmly secured and applied
with some glue.
原装零件出厂包装如果组装完毕,请需再确认各螺丝
是否锁紧上胶。
1. Main rotor head and main shaft washer are wear items ; it is recommended to inspect after every
20 flights and replace as necessay.For high head speed flight,the inspection interval should be
reduced to ensure flight safety.
2.Make sure to check and change the parts if any failure due to normal deterioration or mechanical
wear to prevent expected danger during high head speed flight.
1.旋翼头组及主轴属于飞行消耗品,建议每 20 趟定期检查及更换,请缩短定期检查之趟数,以确保飞行安
全.
2.若发生人为组装不当或者零件损毁造成模型商品摔机时,请务必仔细检查损坏的部件且强烈推荐将其
更换,避免主旋翼告诉飞行时发生无法预期的意外.
Linkage ball A (M3x6)
球头(Ø4.75x14.5mm)x2
Socket Screw
内六角螺丝(M3x16mm)x2
Linkage rod ( F )
连杆 F (M2.5x49.5mm) x2
Elevator Ball Link
升降臂连杆头x4
Hole Outward
孔朝外
Apply a little amount of T43 thread lock when
fixing a metal part.
所有 螺丝锁紧 金属件时 请使用适 量T43（螺 丝胶）
W
D40
WD40
Linkage rod ( F )
连杆 F (M2.5x49.5mm)
M2x8mm
M2x5mm
T
4
3
T
4
3
Washer
垫片
Plane outside
平面 朝外
Plane down
平面 朝下
