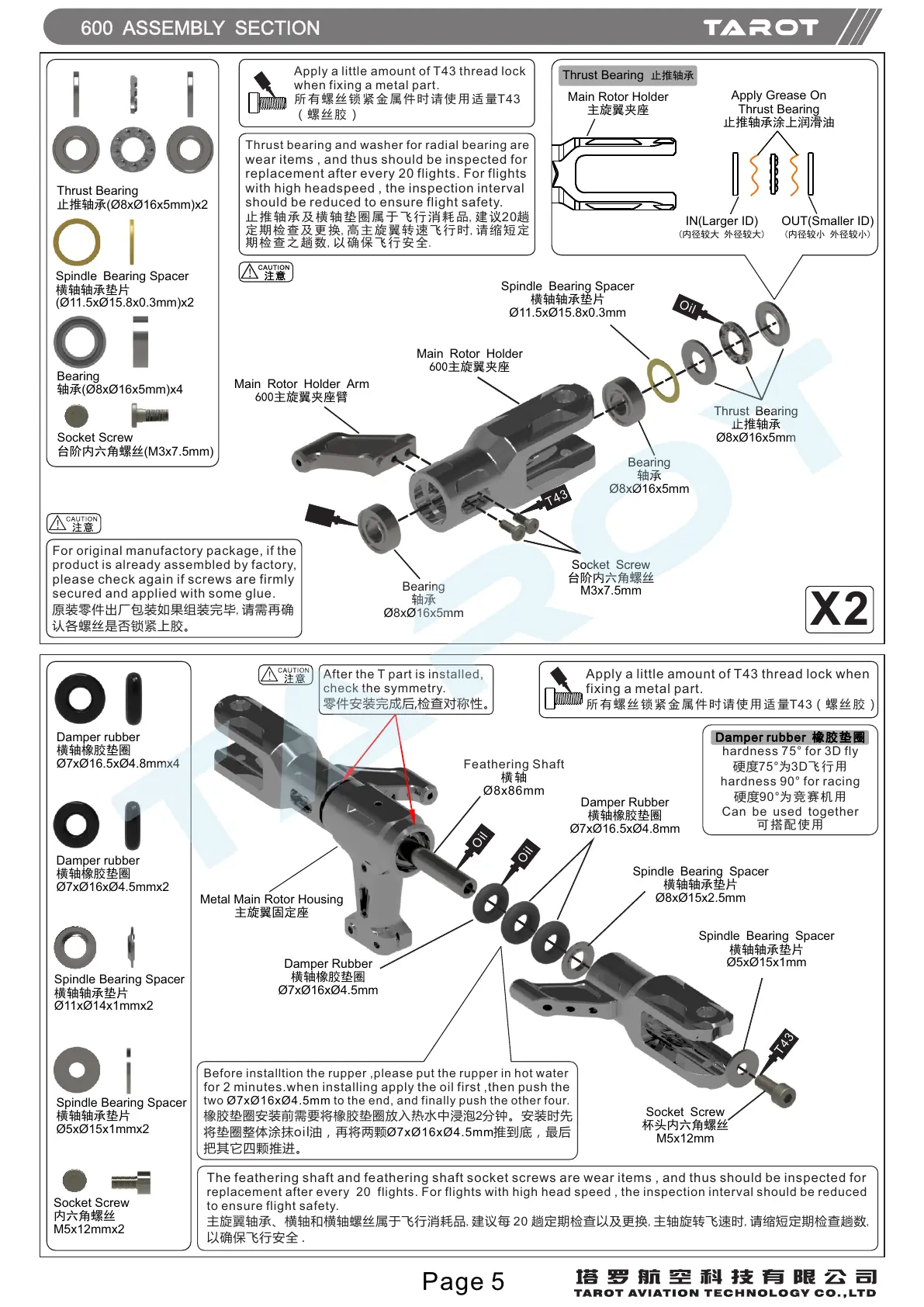

Tarot 600 - MAIN ROTOR HOLDER ASSEMBLY; DAMPER RUBBER INSTALLATION; FEATHERING SHAFT INSTALLATION

Socket Screw
杯头内六角螺丝
M5x12mm
Spindle Bearing Spacer
横轴轴承垫片
Ø5xØ15x1mm
Spindle Bearing Spacer
横轴轴承垫片
Ø8xØ15x2.5mm
Metal Main Rotor Housing
主旋翼固定座
Damper Rubber
横轴橡胶垫圈
Ø7xØ16xØ4.5mm
Feathering Shaft
横轴
Ø8x86mm
Damper Rubber
横轴橡胶垫圈
Ø7xØ16.5xØ4.8mm
O
il
T
43
X2
For original manufactory package, if the
product is already assembled by factory,
please check again if screws are firmly
secured and applied with some glue.
原装零件出厂包装如果组装完毕,请需再确
认各螺丝是否锁紧上胶。
The feathering shaft and feathering shaft socket screws are wear items , and thus should be inspected for
replacement after every 20 flights. For flights with high head speed , the inspection interval should be reduced
to ensure flight safety.
主旋翼轴承、横轴和横轴螺丝属于飞行消耗品,建议每 20 趟定期检查以及更换,主轴旋转飞速时,请缩短定期检查趟数,
以确保飞行安全 .
600 ASSEMBLY SECTION
Apply a little amount of T43 thread lock when
fixing a metal part.
所有 螺丝锁紧 金属件时 请使用适 量T43（螺 丝胶）
Socket Screw
台阶内六角螺丝(M3x7.5mm)
Bearing
轴承(Ø8xØ16x5mm)x4
Spindle Bearing Spacer
横轴轴承垫片
(Ø11.5xØ15.8x0.3mm)x2
Thrust Bearing
止推轴承(Ø8xØ16x5mm)x2
Damper rubber
横轴橡胶垫圈
Ø7xØ16.5xØ4.8mmx4
Damper rubber
横轴橡胶垫圈
Ø7xØ16xØ4.5mmx2
Spindle Bearing Spacer
横轴轴承垫片
Ø11xØ14x1mmx2
Spindle Bearing Spacer
横轴轴承垫片
Ø5xØ15x1mmx2
Socket Screw
内六角螺丝
M5x12mmx2
600 ASSEMBLY SECTION
Thrust Bearing
止推轴承
Ø8xØ16x5mm
Spindle Bearing Spacer
横轴轴承垫片
Ø11.5xØ15.8x0.3mm
Bearing
轴承
Ø8xØ16x5mm
Bearing
轴承
8x 16x5mmØ Ø
Socket Screw
台阶内六角螺丝
M3x7.5mm
Main Rotor Holder
600主旋翼夹座
Main Rotor Holder Arm
600主旋翼夹座臂
T4
3
O
il
T4
3
Thrust Bearing 止推承Thrust Bearing 止推承
Thrust bearing and washer for radial bearing are
wear items , and thus should be inspected for
replacement after every 20 flights. For flights
with high headspeed , the inspection interval
should be reduced to ensure flight safety.
止推 轴承及横轴 垫圈属于飞 行 消耗品,建议20趟
定期 检查及更 换,高主旋翼 转速飞行 时,请缩短定
期检 查之趟数,以 确保飞行 安全.
Apply a little amount of T43 thread lock
when fixing a metal part.
所有 螺丝锁紧 金属件时 请使用适 量T43
（螺丝胶）
Thrust Bearing 止推轴承
Main Rotor Holder
主旋翼夹座
IN(Larger ID)
(内径较大 外径较大)
OUT(Smaller ID)
(内径较小 外径较小)
Apply Grease On
Thrust Bearing
止推轴承涂上润滑油
Before installtion the rupper ,please put the rupper in hot water
for 2 minutes.when installing apply the oil first ,then push the
two to the end, and finally push the other four.Ø7xØ16xØ4.5mm
橡胶垫圈安装前需要将橡胶垫圈放入热水中浸泡2分钟。安装时先
将垫圈整体涂抹oil油，再将两颗 推到底，最后Ø7xØ16xØ4.5mm
把其它四颗推进。
After the T part is installed,
check the symmetry.
零件安装完成后,检查对称性。
Oil
Page 5
Damper rubber 橡 胶垫圈
hardness 75° for 3D fly
硬度75°为3D飞行用
hardness 90° for racing
硬度90°为竞赛 机用
Can be used together
可搭 配使用
