Tarot 600 - MOTOR GEAR MESHING AND TAIL GEAR BOX ASSEMBLY; ESC WIRE ARRANGEMENT

600 ASSEMBLY SECTION

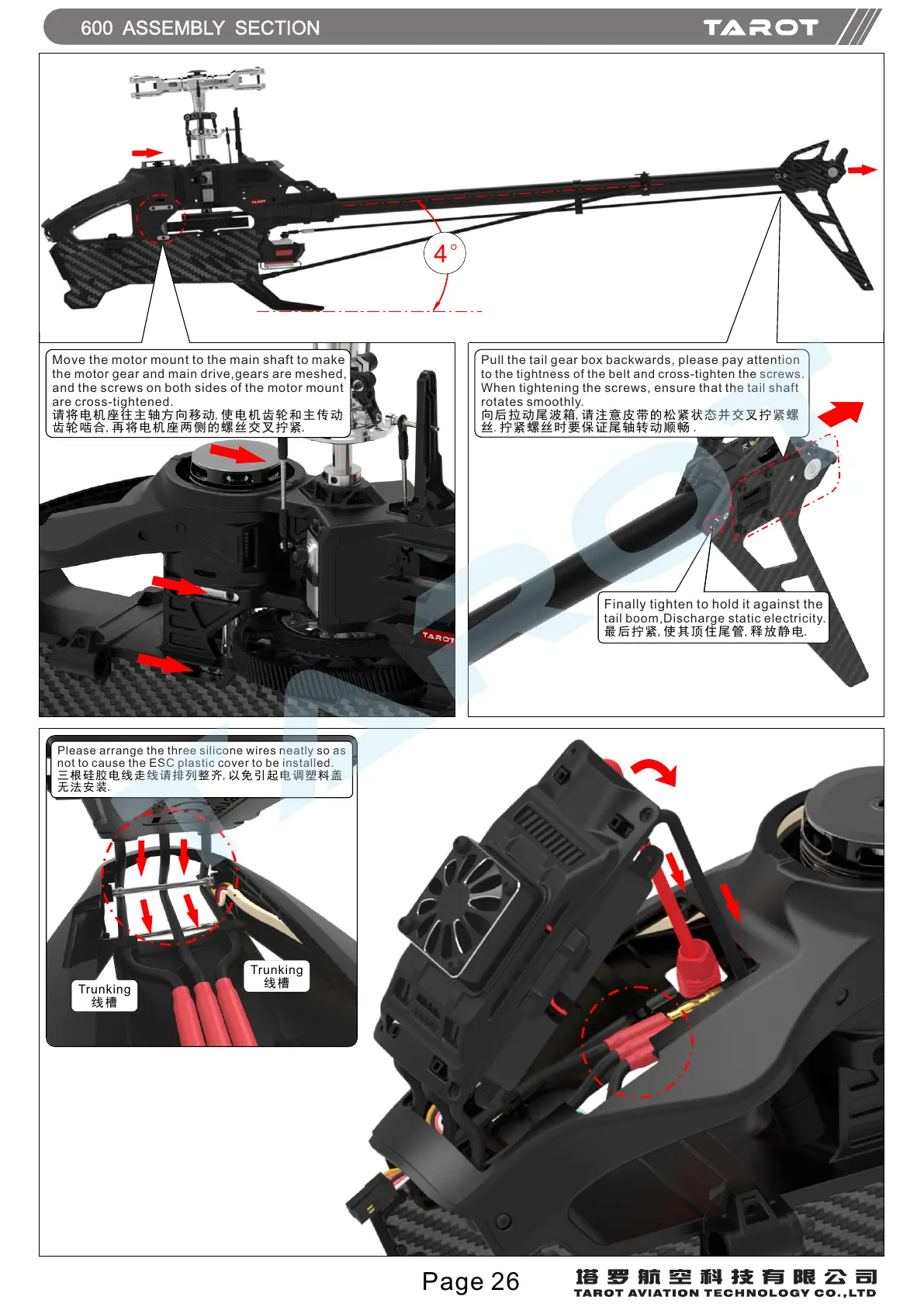

Move the motor mount to the main shaft to make
the motor gear and main drive,gears are meshed,
and the screws on both sides of the motor mount
are cross-tightened.
请将 电机座往 主轴方向 移动,使电机 齿轮和主 传动
齿轮 啮合,再将电 机座两侧 的螺丝交 叉拧紧.
4°
Finally tighten to hold it against the
tail boom,Discharge static electricity.
最后 拧紧,使其顶 住尾管,释放 静电.
Pull the tail gear box backwards, please pay attention
to the tightness of the belt and cross-tighten the screws.
When tightening the screws, ensure that the tail shaft
rotates smoothly.
向后 拉动尾波 箱,请注意皮 带的松紧 状态并交 叉拧紧螺
丝.拧紧 螺丝时要 保证尾轴 转动顺畅 .
Page 26
Please arrange the three silicone wires neatly so as
not to cause the ESC plastic cover to be installed.
三根硅胶 电线 走线 请排列整齐,以 免引 起电 调塑料盖
无法安装.
Trunking
线槽
Trunking
线槽
