Device Cover
设备安放盖

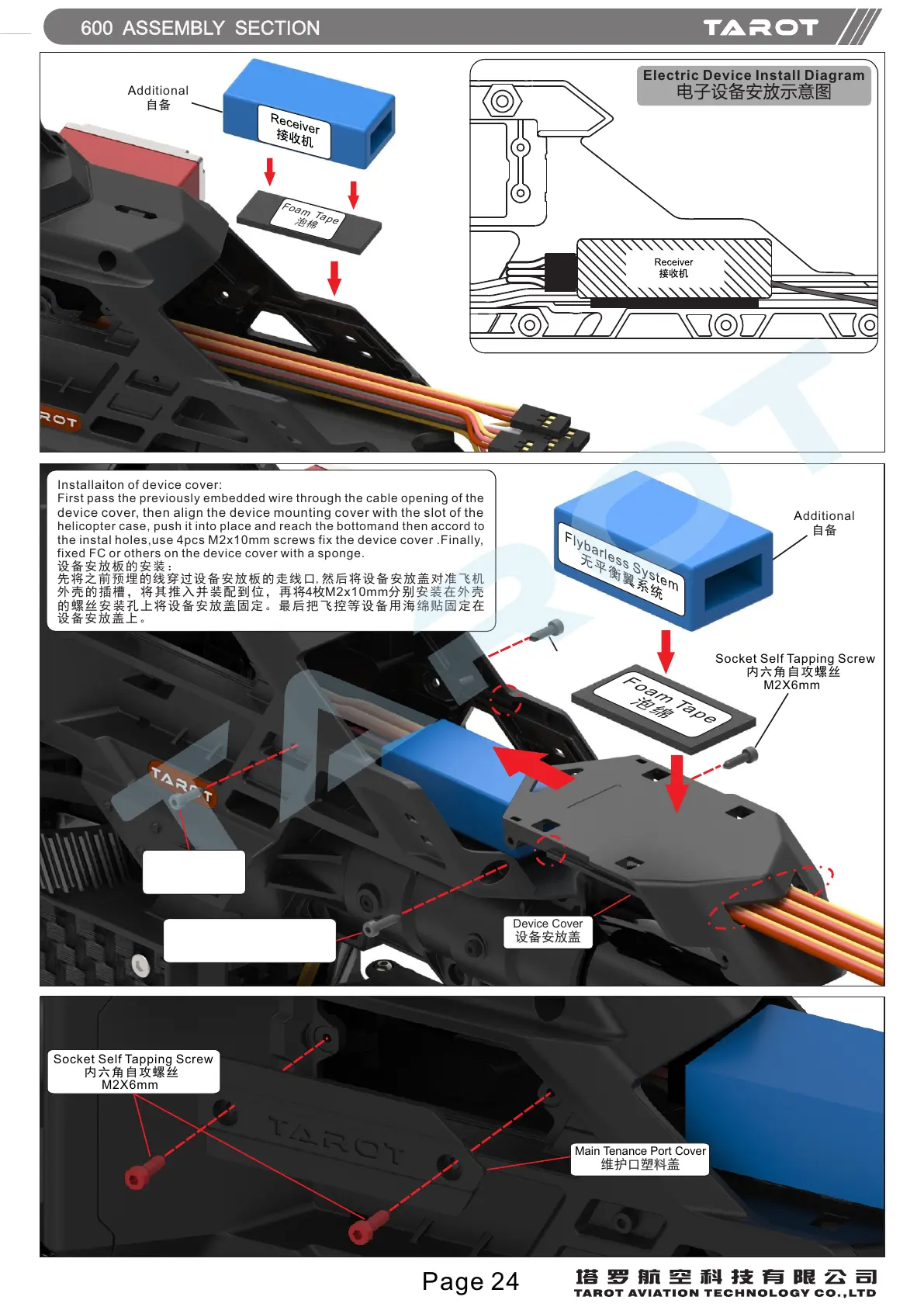

Electric Device Install Diagram
Installaiton of device cover:
First pass the previously embedded wire through the cable opening of the
device cover, then align the device mounting cover with the slot of the
helicopter case, push it into place and reach the bottomand then accord to
the instal holes,use 4pcs M2x10mm screws fix the device cover .Finally,
fixed FC or others on the device cover with a sponge.
设备 安放板的 安装：
先将 之前预埋 的线穿过 设备安放 板的走线 口,然后将设 备安放盖 对准飞机
外壳 的插槽，将 其推入并装 配到位，再 将4枚M2x10mm分别 安装在外壳
的螺 丝安装孔 上 将设备安 放 盖固定。 最 后把飞控 等设备用海 绵贴固定在
设备 安放盖上 。
600 ASSEMBLY SECTION
Main Tenance Port Cover
维护口塑料盖
Socket Self Tapping Screw
内六 角自攻螺 丝
M2Χ6mm
Socket Self Tapping Screw
内六 角自攻螺 丝
M2Χ6mm
Page 24
F
o
a
m
T
a
p
e
泡棉
F
oa
m Ta
p
e
泡绵
Additional
⾃备
Additional
⾃备
Socket Screw
内六 角螺丝
M2Χ6mm
Socket Self Tapping Screw
内六 角自攻螺 丝
M2Χ6mm
S
o
ck
et Screw
内
六角螺
丝
M
2
Χ
6
m
m
To Next Page
